Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R50420TSDIODE GP 200V 300A DO205AB DO9 |
7,411 | - |
|
Datasheet | - | DO-205AB, DO-9, Stud | Bulk | Active | Standard, Reverse Polarity | 200 V | 300A | 1.25 V @ 1000 A | Standard Recovery >500ns, > 200mA (Io) | - | 75 µA @ 200 V | - | - | - | Stud Mount | DO-205AB (DO-9) | -65°C ~ 200°C |
|

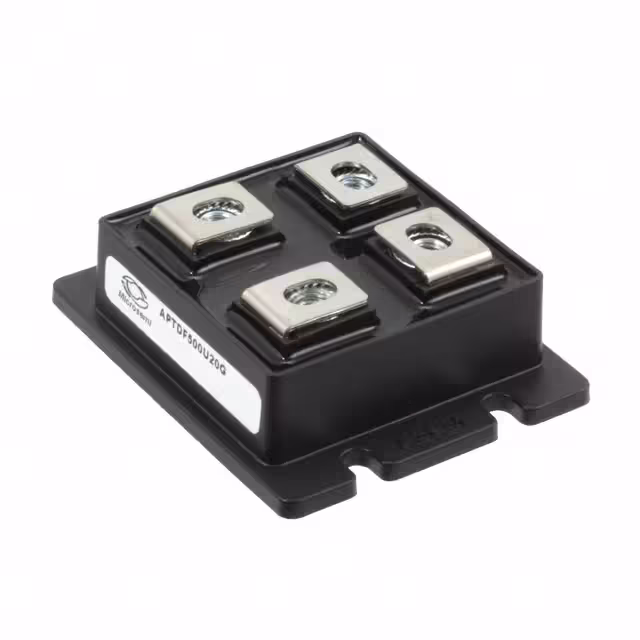

APTDF500U20GDIODE GEN PURP 200V 500A LP4 |
8,026 | - |
|
Datasheet | - | LP4 | Bulk | Active | Standard | 200 V | 500A | 1.1 V @ 500 A | Fast Recovery =< 500ns, > 200mA (Io) | 70 ns | 2.5 mA @ 200 V | - | - | - | Chassis Mount | LP4 | - |
|
SBR6045DIODE SCHOTTKY 60A 45V DO5 |
4,375 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Schottky | 45 V | 60A | 600 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 45 V | - | - | - | Chassis, Stud Mount | - | - |
|
|
SBR6035RDIODE SCHOTTKY 35V 60A DO5 |
3,798 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Schottky, Reverse Polarity | 35 V | 60A | 600 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | - | - | - | - | Stud Mount | DO-5 (DO-203AB) | -65°C ~ 150°C |
|
|
SBR6040DIODE SCHOTTKY 40V 60A DO5 |
3,863 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Schottky | 40 V | 60A | 600 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 45 V | - | - | - | Stud Mount | DO-5 (DO-203AB) | -55°C ~ 150°C |
|
|
SBR6045E3DIODE SCHOTTKY 45V 60A DO203AB |
5,925 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Discontinued at Digi-Key | Schottky | 45 V | 60A | 600 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 45 V | - | - | - | Chassis, Stud Mount | DO-203AB | -65°C ~ 150°C |
|
|
JANS1N5802URSDIODE GEN PURP 50V 2A A AXIAL |
7,809 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 50 V | 2A | 975 mV @ 2.5 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | - | 25pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Through Hole | A, Axial | -65°C ~ 175°C |
|
|
JANS1N5804URSDIODE GEN PURP 100V 2A A AXIAL |
8,138 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 100 V | 2A | 975 mV @ 2.5 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | - | 25pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Through Hole | A, Axial | -65°C ~ 175°C |
|
|
JANS1N5806URSDIODE GEN PURP 150V 2A A AXIAL |
7,265 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 150 V | 2A | 975 mV @ 2.5 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | - | 25pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Through Hole | A, Axial | -65°C ~ 175°C |
|
|
JANS1N5806URS/TRDIODE GP 160V 1A A SQ-MELF |
9,912 | - |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 160 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 150 V | 25pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | A, SQ-MELF | -65°C ~ 175°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
