Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JANTX1N4148-1/TRDIODE GEN PURP 75V 200MA DO35 |
4,891 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Standard | 75 V | 200mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 20 ns | 500 nA @ 75 V | 4pF @ 0V, 1MHz | Military | MIL-PRF-19500/116 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|

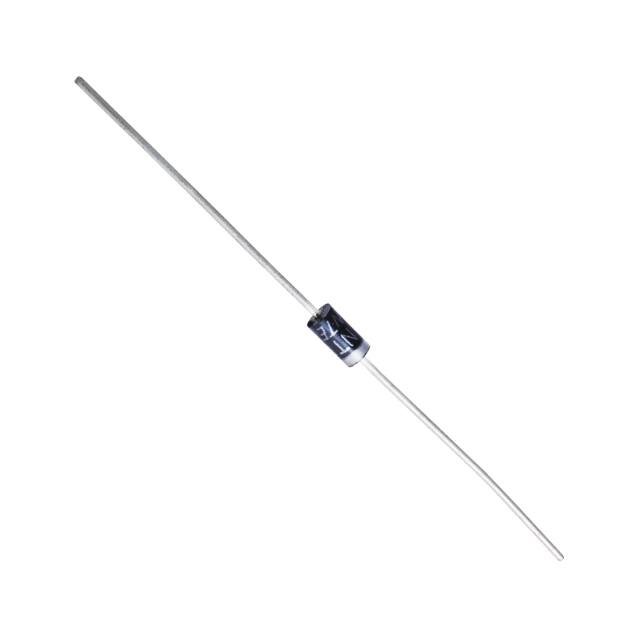

1N645DIODE GEN PURP 225V 400MA DO35 |
6,341 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 225 V | 400mA | 1 V @ 400 mA | Standard Recovery >500ns, > 200mA (Io) | - | 200 nA @ 225 V | - | - | - | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
1N645ADIODE GEN PURP 225V 400MA DO35 |
6,689 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 225 V | 400mA | 1 V @ 400 mA | Standard Recovery >500ns, > 200mA (Io) | - | 200 nA @ 225 V | - | - | - | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
1N4150DIODE GEN PURP 50V 200MA DO35 |
4,420 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 50 V | 200mA | 1 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 50 V | 2.5pF @ 0V, 1MHz | - | - | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|

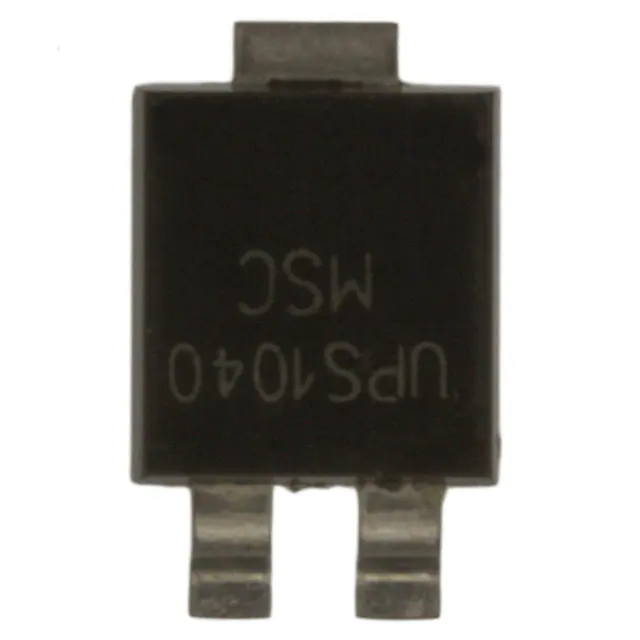

UPS1040E3/TR13DIODE SCHOTTKY 40V 10A POWERMITE |
4,747 | - |
|
Datasheet | - | Powermite®3 | Tape & Reel (TR) | Active | Schottky | 40 V | 10A | 510 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 300 µA @ 35 V | 700pF @ 4V, 1MHz | - | - | Surface Mount | Powermite 3 | -55°C ~ 150°C |
|
|
HSM3100GE3/TR13DIODE SCHOTTKY 100V 3A DO215AB |
4,352 | - |
|
Datasheet | - | DO-215AB, SMC Gull Wing | Tape & Reel (TR) | Active | Schottky | 100 V | 3A | 810 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | - | - | - | Surface Mount | DO-215AB | -55°C ~ 175°C |
.jpg "HSM3100JE3/TR13")
|
HSM3100JE3/TR13DIODE SCHOTTKY 100V 3A DO214AB |
3,806 | - |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Active | Schottky | 100 V | 3A | 810 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | - | - | - | Surface Mount | DO-214AB | -55°C ~ 175°C |
|
|
HSM380GE3/TR13DIODE SCHOTTKY 80V 3A DO215AB |
3,973 | - |
|
Datasheet | - | DO-215AB, SMC Gull Wing | Tape & Reel (TR) | Active | Schottky | 80 V | 3A | 810 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 80 V | - | - | - | Surface Mount | DO-215AB | -55°C ~ 175°C |
|
|
HSM380JE3/TR13DIODE SCHOTTKY 80V 3A DO214AB |
6,449 | - |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Active | Schottky | 80 V | 3A | 810 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 80 V | - | - | - | Surface Mount | DO-214AB | -55°C ~ 175°C |
|
|
HSM390GE3/TR13DIODE SCHOTTKY 90V 3A DO215AB |
2,328 | - |
|
Datasheet | - | DO-215AB, SMC Gull Wing | Tape & Reel (TR) | Active | Schottky | 90 V | 3A | 810 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 90 V | - | - | - | Surface Mount | DO-215AB | -55°C ~ 175°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
