Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

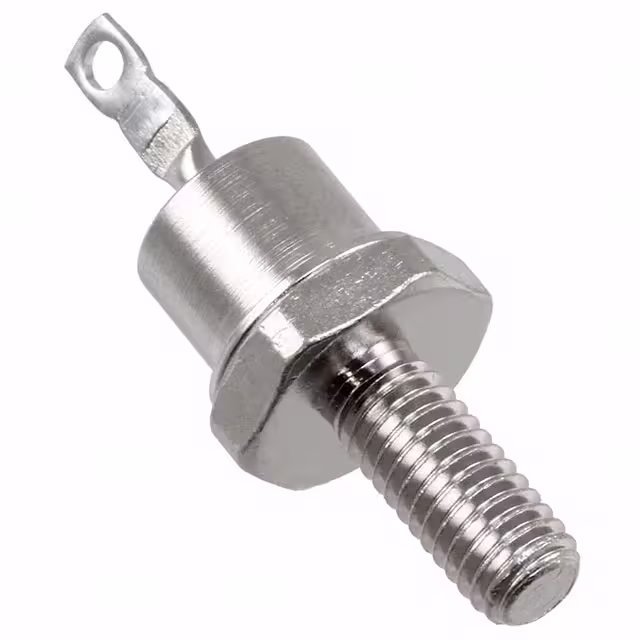

JANTX1N3890DIODE GEN PURP 100V 12A DO203AA |
3,395 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 100 V | 12A | 1.5 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 10 µA @ 100 V | 115pF @ 10V, 1MHz | Military | MIL-PRF-19500/304 | Stud Mount | DO-203AA | -65°C ~ 175°C |
|
JANTX1N3893DIODE GEN PURP 400V 12A DO203AA |
3,416 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 400 V | 12A | 1.5 V @ 38 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 10 µA @ 400 V | - | Military | MIL-PRF-19500/304 | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
|
688-18DIODE GEN PURP 18KV 350MA |
4,472 | - |
|
Datasheet | - | Module | Bulk | Active | Standard | 18000 V | 350mA | 30 V @ 400 mA | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 2 µA @ 18000 V | - | - | - | Chassis Mount | - | -65°C ~ 150°C |
|
|
688-10DIODE GEN PURP 10KV 600MA |
7,665 | - |
|
Datasheet | - | Module | Bulk | Active | Standard | 10000 V | 600mA | 17 V @ 400 mA | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 2 µA @ 10000 V | - | - | - | Chassis Mount | - | -65°C ~ 150°C |
|
|
688-25DIODE GEN PURP 25KV 200MA |
6,911 | - |
|
Datasheet | - | Module | Bulk | Active | Standard | 25000 V | 200mA | 42 V @ 400 mA | Small Signal =< 200mA (Io), Any Speed | 500 ns | 2 µA @ 25000 V | - | - | - | Chassis Mount | - | -65°C ~ 150°C |
|
|
688-12DIODE GEN PURP 12KV 500MA |
9,560 | - |
|
Datasheet | - | Module | Bulk | Active | Standard | 12000 V | 500mA | 20 V @ 400 mA | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 2 µA @ 12000 V | - | - | - | Chassis Mount | - | -65°C ~ 150°C |
|
|
688-20DIODE GEN PURP 20KV 300MA |
9,068 | - |
|
Datasheet | - | Module | Bulk | Active | Standard | 20000 V | 300mA | 34 V @ 400 mA | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 2 µA @ 20000 V | - | - | - | Chassis Mount | - | -65°C ~ 150°C |
|
|
688-15DIODE GEN PURP 15KV 400MA |
6,659 | - |
|
Datasheet | - | Module | Bulk | Active | Standard | 15000 V | 400mA | 25 V @ 400 mA | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 2 µA @ 15000 V | - | - | - | Chassis Mount | - | -65°C ~ 150°C |
|
|
1N6776DIODE GEN PURP 150V 15A TO257 |
4,094 | - |
|
Datasheet | - | TO-257-3 | Bulk | Active | Standard | 150 V | 15A | 1.15 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 800 mV | 300pF @ 5V, 1MHz | - | - | Through Hole | TO-257 | -65°C ~ 150°C |
|
|
1N6777DIODE GEN PURP 200V 15A TO257 |
6,493 | - |
|
Datasheet | - | TO-257-3 | Bulk | Active | Standard | 200 V | 15A | 1.15 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 800 mV | 300pF @ 5V, 1MHz | - | - | Through Hole | TO-257 | -65°C ~ 150°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
