Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JAN1N458DIODE GEN PURP 70V 150MA DO35 |
4,102 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 70 V | 150mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 25 nA @ 70 V | - | Military | MIL-PRF-19500/193 | Through Hole | DO-204AH (DO-35) | -65°C ~ 150°C |
|
JANTX1N3164DIODE GP 200V 300A DO205AB DO9 |
6,733 | - |
|
Datasheet | - | DO-205AB, DO-9, Stud | Bulk | Active | Standard | 200 V | 300A | 1.55 V @ 940 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 200 V | - | Military | MIL-PRF-19500/211 | Chassis, Stud Mount | DO-205AB (DO-9) | -65°C ~ 200°C |
|
JANTX1N3289DIODE GEN PURP 200V 100A DO205AA |
3,361 | - |
|
Datasheet | - | DO-205AA, DO-8, Stud | Bulk | Active | Standard | 200 V | 100A | 1.55 V @ 310 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 200 V | - | Military | MIL-PRF-19500/246 | Stud Mount | DO-205AA (DO-8) | -65°C ~ 200°C |
|
|
JANTX1N485BDIODE GEN PURP 180V 200MA DO35 |
2,606 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 180 V | 200mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 25 nA @ 180 V | - | Military | MIL-PRF-19500/118 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
|
JANTX1N486BDIODE GEN PURP 225V 200MA DO35 |
8,945 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 225 V | 200mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 25 nA @ 225 V | - | Military | MIL-PRF-19500/118 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|

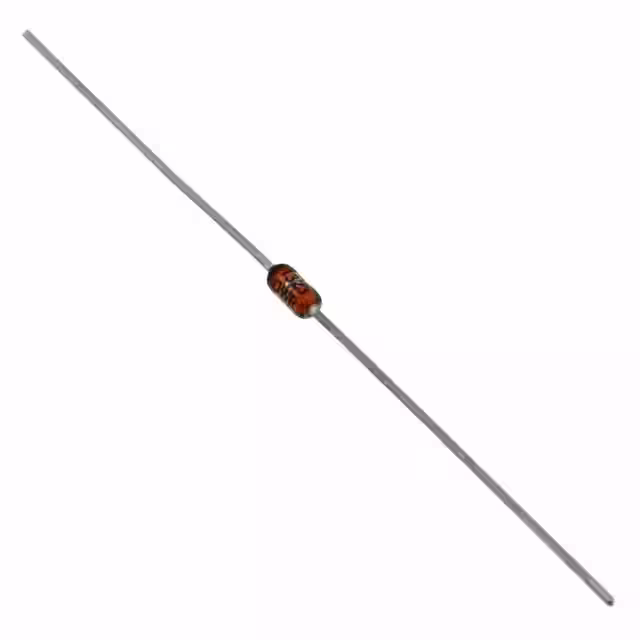

JANTX1N5194DIODE GEN PURP 70V 50MA DO35 |
2,908 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 70 V | 50mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 25 nA @ 70 V | - | Military | MIL-PRF-19500/118 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
JANTX1N6761-1DIODE SCHOTTKY 100V 1A DO41 |
9,707 | - |
|
Datasheet | - | DO-204AL, DO-41, Axial | Bulk | Active | Schottky | 100 V | 1A | 690 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | 70pF @ 5V, 1MHz | Military | MIL-PRF-19500/586 | Through Hole | DO-41 | -65°C ~ 150°C |
|
|
JANTX1N6857-1DIODE SCHOTTKY 20V 150MA DO35 |
5,813 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Schottky | 20 V | 150mA | 350 mV @ 1 mA | Small Signal =< 200mA (Io), Any Speed | - | 150 nA @ 16 V | - | Military | MIL-PRF-19500/444 | Through Hole | DO-204AH (DO-35) | -65°C ~ 150°C |
|
JANTXV1N645-1DIODE GEN PURP 225V 400MA DO35 |
5,941 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 225 V | 400mA | 1 V @ 400 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 nA @ 225 V | - | Military | MIL-PRF-19500/240 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|

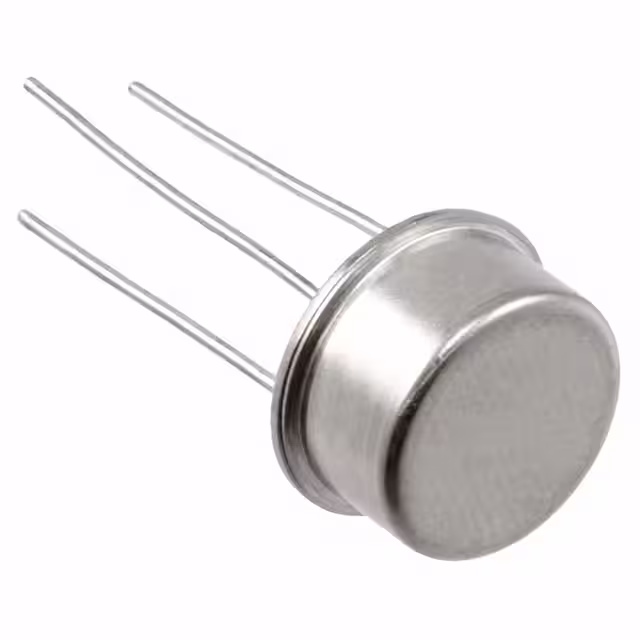

JANTXV1N6492DIODE SCHOTTKY 45V 3.6A TO205AF |
2,270 | - |
|
Datasheet | - | TO-205AF Metal Can | Bulk | Active | Schottky | 45 V | 3.6A | 560 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 45 V | 450pF @ 5V, 1MHz | Military | MIL-PRF-19500/567 | Through Hole | TO-205AF (TO-39) | -65°C ~ 175°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
