Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPR5/TR13DIODE GEN PURP 50V 2.5A DO216 |
5,228 | - |
|
Datasheet | - | DO-216AA | Tape & Reel (TR) | Active | Standard | 50 V | 2.5A | 975 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 2 µA @ 50 V | - | - | - | Surface Mount | DO-216 | -55°C ~ 150°C |
|
|
UPR10/TR13DIODE GEN PURP 100V 2.5A DO216 |
8,733 | - |
|
Datasheet | - | DO-216AA | Tape & Reel (TR) | Active | Standard | 100 V | 2.5A | 975 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 2 µA @ 100 V | - | - | - | Surface Mount | DO-216 | -55°C ~ 150°C |
|
|
UPR15/TR7DIODE GEN PURP 150V 2.5A DO216 |
2,099 | - |
|
Datasheet | - | DO-216AA | Tape & Reel (TR) | Active | Standard | 150 V | 2.5A | 975 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 2 µA @ 150 V | - | - | - | Surface Mount | DO-216 | -55°C ~ 150°C |
|
JAN1N4148UR-1/TRDIODE GP 100V 200MA DO213AA |
7,178 | - |
|
Datasheet | - | DO-213AA | Tape & Reel (TR) | Active | Standard | 100 V | 200mA | 800 mV @ 10 mA | Small Signal =< 200mA (Io), Any Speed | 20 ns | 25 nA @ 20 V | 2.8pF @ 1.5V, 1MHz | Military | MIL-PRF-19500/241 | Surface Mount | DO-213AA | -65°C ~ 175°C |
.jpg "HSM880JE3/TR13")
|
HSM880JE3/TR13DIODE SCHOTTKY 80V 8A DO214AB |
5,212 | - |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Active | Schottky | 80 V | 8A | 780 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 80 V | - | - | - | Surface Mount | DO-214AB | -55°C ~ 175°C |
|
|
UPS140/TR7DIODE SCHOTTKY 40V 1A POWERMITE |
5,495 | - |
|
Datasheet | - | DO-216AA | Tape & Reel (TR) | Discontinued at Digi-Key | Schottky | 40 V | 1A | 450 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 400 µA @ 40 V | 70pF @ 5V, 1MHz | - | - | Surface Mount | Powermite | -55°C ~ 125°C |
|

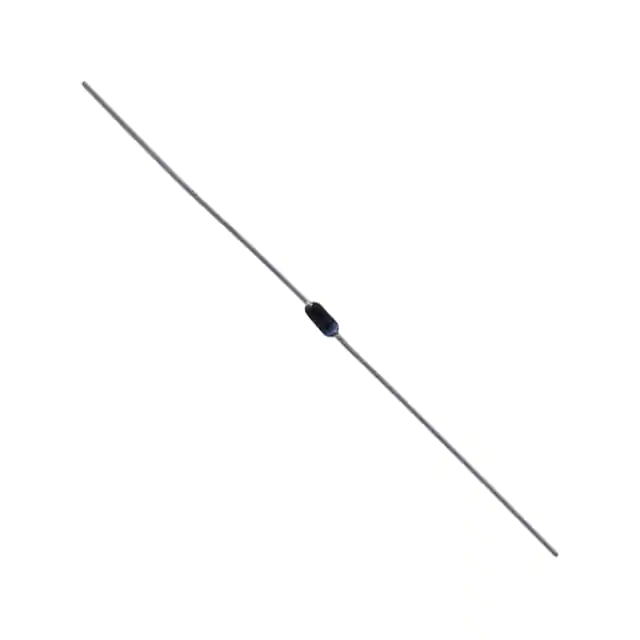

1N3600DIODE GEN PURP 50V 200MA DO35 |
6,373 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 50 V | 200mA | 1 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 50 V | - | - | - | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
1N4449/TRDIODE GEN PURP 75V 200MA DO35 |
8,793 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Standard | 75 V | 200mA | 1 V @ 30 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 25 nA @ 20 V | - | - | - | Through Hole | DO-204AH (DO-35) | -65°C ~ 150°C |
|
|
1N4448/TRDIODE GEN PURP 75V 200MA DO35 |
8,453 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Standard | 75 V | 200mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 25 nA @ 20 V | - | - | - | Through Hole | DO-204AH (DO-35) | -65°C ~ 150°C |
|
|
1N4447/TRDIODE GEN PURP 75V 200MA DO35 |
5,888 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Standard | 75 V | 200mA | 1 V @ 20 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 25 nA @ 20 V | - | - | - | Through Hole | DO-204AH (DO-35) | -65°C ~ 150°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
