Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

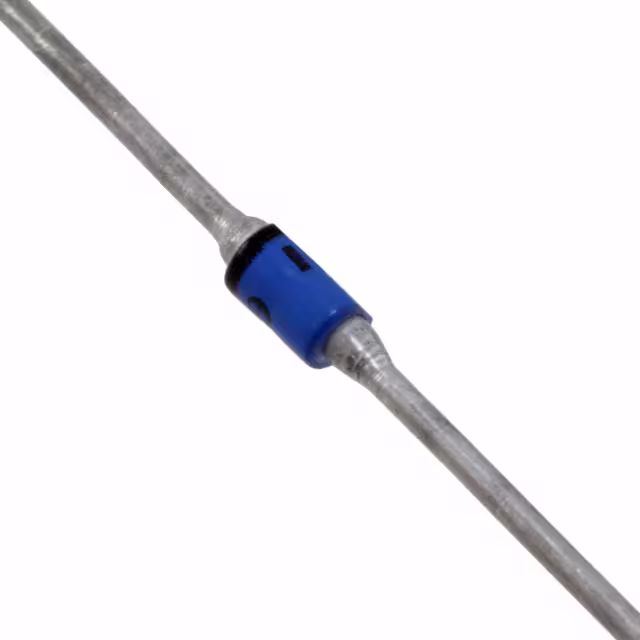

JAN1N3614DIODE GEN PURP 800V 1A AXIAL |
4,830 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 800 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 1 µA @ 800 V | - | Military | MIL-PRF-19500/228 | Through Hole | A, Axial | -65°C ~ 175°C |
|
APT60D60SGDIODE GEN PURP 60A TO247 |
2,214 | - |
|
Datasheet | - | TO-247-2 | Tube | Active | Standard | - | 60A | 1.8 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 130 ns | 250 µA @ 600 V | - | - | - | Through Hole | TO-247 | -55°C ~ 175°C |
|
1N4248/TRDIODE GEN PURP 800V 1A |
9,722 | - |
|
Datasheet | - | A, Axial | Tape & Reel (TR) | Active | Standard | 800 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 5 µs | 1 µA @ 800 V | - | - | - | Through Hole | A, Axial | -65°C ~ 175°C |
|

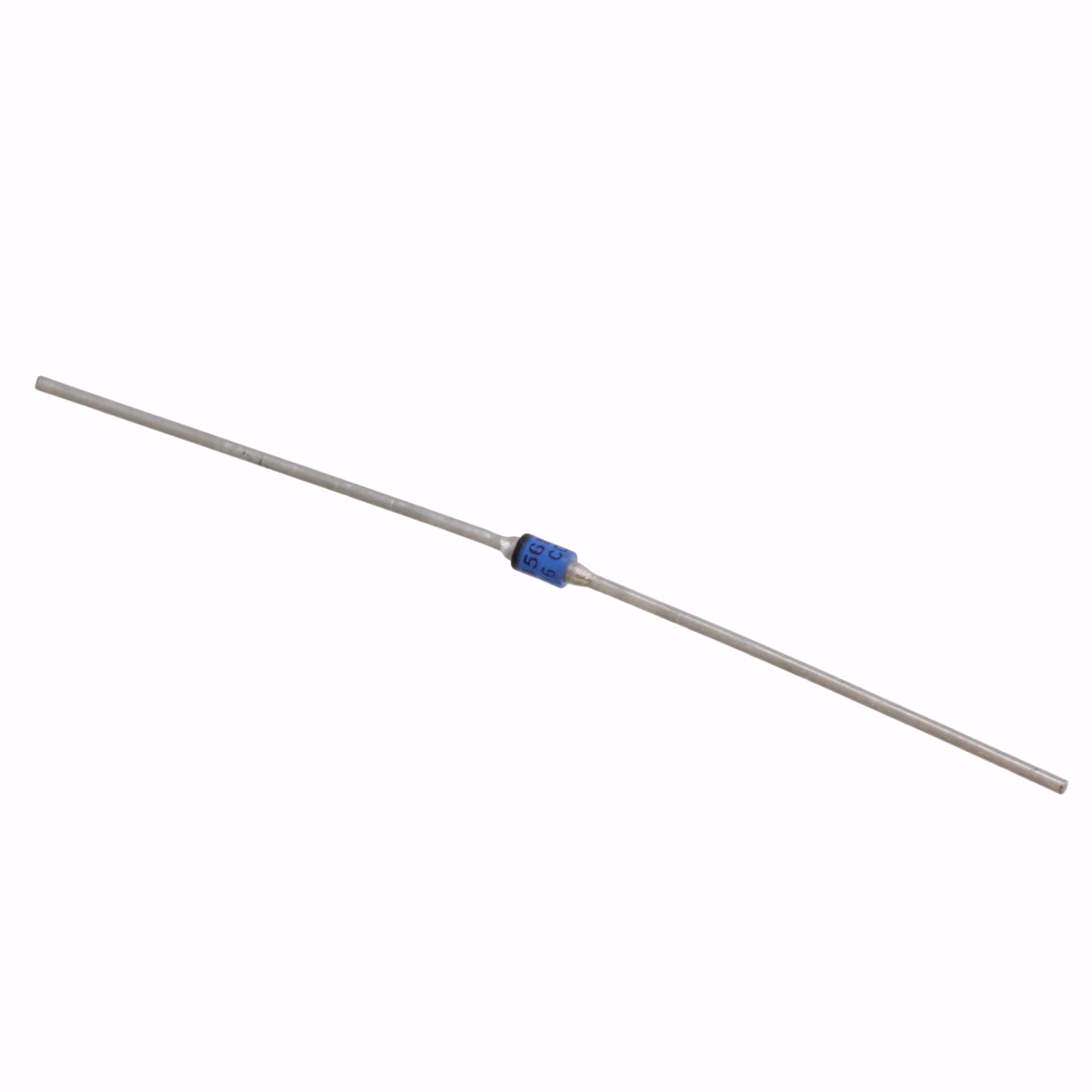

JAN1N5616DIODE GEN PURP 400V 1A AXIAL |
5,991 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 400 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 400 V | - | Military | MIL-PRF-19500/427 | Through Hole | A, Axial | -65°C ~ 200°C |
|
1N6677/TRDIODE SCHOTTKY 40V 200MA DO35 |
7,266 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Schottky | 40 V | 200mA | 500 mV @ 200 mA | Small Signal =< 200mA (Io), Any Speed | - | 5 µA @ 40 V | 50pF @ 0V, 1MHz | - | - | Through Hole | DO-204AH (DO-35) | -65°C ~ 125°C |
|
|
1N6677-1/TRDIODE SCHOTTKY 40V 200MA DO35 |
2,832 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Schottky | 40 V | 200mA | 500 mV @ 200 mA | Small Signal =< 200mA (Io), Any Speed | - | 5 µA @ 40 V | 50pF @ 0V, 1MHz | - | - | Through Hole | DO-204AH (DO-35) | -65°C ~ 125°C |
|
|
1N6677-1E3DIODE SCHOTTKY 40V 200MA DO35 |
6,362 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Schottky | 40 V | 200mA | 500 mV @ 200 mA | Small Signal =< 200mA (Io), Any Speed | - | 5 µA @ 40 V | 50pF @ 0V, 1MHz | - | - | Through Hole | DO-204AH (DO-35) | -65°C ~ 125°C |
|

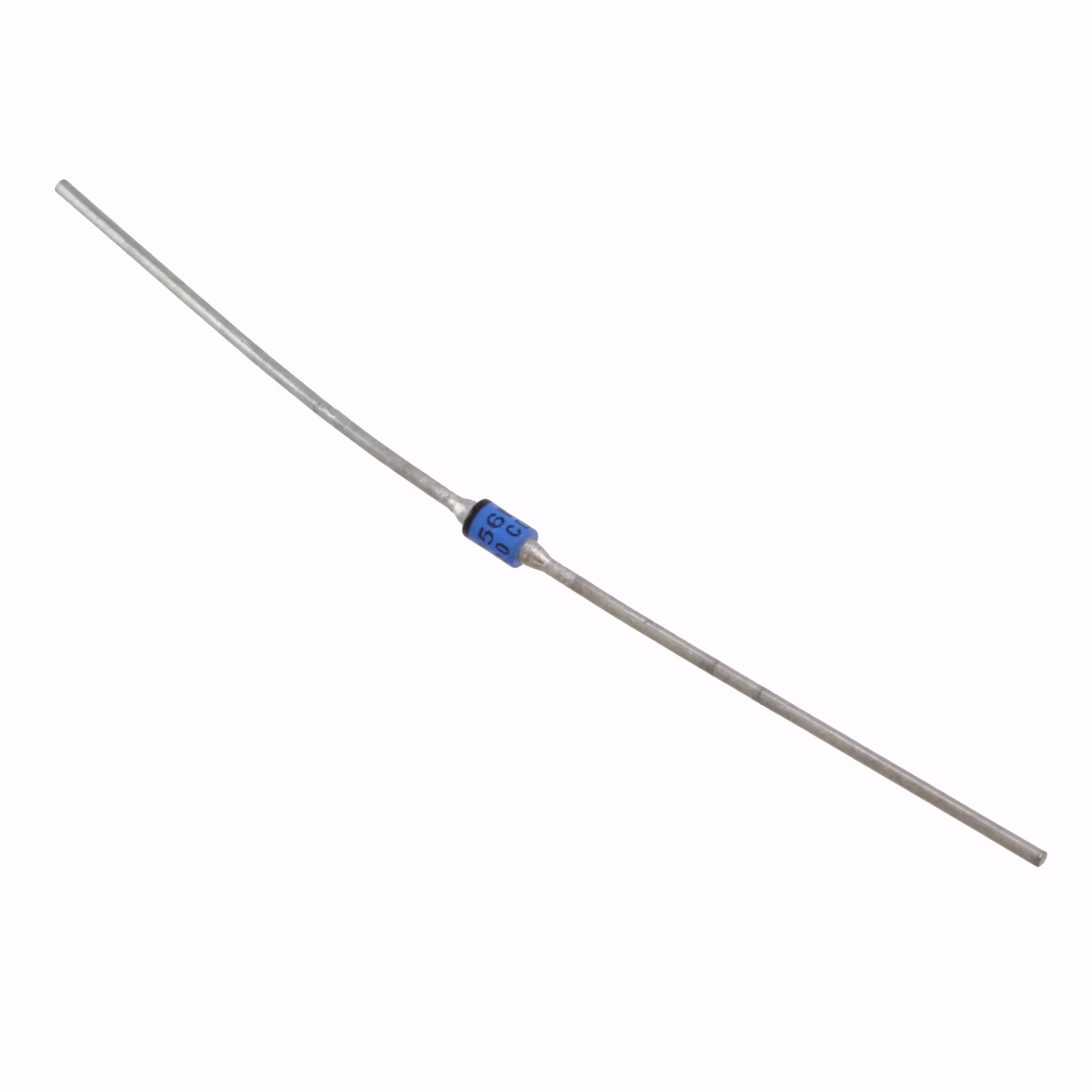

JAN1N5614DIODE GEN PURP 200V 1A AXIAL |
5,314 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 200 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 200 V | - | Military | MIL-PRF-19500/427 | Through Hole | A, Axial | -65°C ~ 200°C |
|
|
JAN1N5618DIODE GEN PURP 600V 1A AXIAL |
5,484 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 600 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 600 V | - | Military | MIL-PRF-19500/427 | Through Hole | A, Axial | -65°C ~ 200°C |
|
|
CD5817DIODE SCHOTTKY 20V 1A DIE |
3,726 | - |
|
Datasheet | - | Die | Tape & Reel (TR) | Active | Schottky | 20 V | 1A | 600 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 20 V | - | Military | MIL-PRF-19500/586 | Surface Mount | Die | -55°C ~ 125°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
