Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMEG4002AESFCYLPMEG4002AESF - 40 V, 0.2 A LOW V |
126,000 | - |
|
Datasheet | - | 0201 (0603 Metric) | Bulk | Active | Schottky | 40 V | 200mA | 525 mV @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 1.25 ns | 80 µA @ 40 V | 18pF @ 1V, 1MHz | - | - | Surface Mount | DSN0603-2 | -55°C ~ 150°C |
|
|
PMEG4005AESFCYLPMEG4005AESF - 40V, 0.5A LOW VF |
105,000 | - |
|
Datasheet | - | 0201 (0603 Metric) | Bulk | Active | Schottky | 40 V | 500mA | 820 mV @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | 1.25 ns | 80 µA @ 40 V | 18pF @ 1V, 1MHz | - | - | Surface Mount | DSN0603-2 | 150°C |
|
|
PMEG2005AESFCYLPMEG2005AESF - 20V, 0.5A LOW VF |
72,000 | - |
|
Datasheet | - | 0201 (0603 Metric) | Bulk | Active | Schottky | 20 V | 500mA | 550 mV @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | 1.9 ns | 45 µA @ 20 V | 25pF @ 1V, 1MHz | - | - | Surface Mount | DSN0603-2 | 150°C |
|
|
PMEG2005ESFCYLPMEG2005ESF - 20V, 0.5A LOW VF M |
72,000 | - |
|
Datasheet | - | 0201 (0603 Metric) | Bulk | Active | Schottky | 20 V | 500mA | 620 mV @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | 1.9 ns | 3.5 µA @ 20 V | 25pF @ 1V, 1MHz | - | - | Surface Mount | DSN0603-2 | 150°C |
|

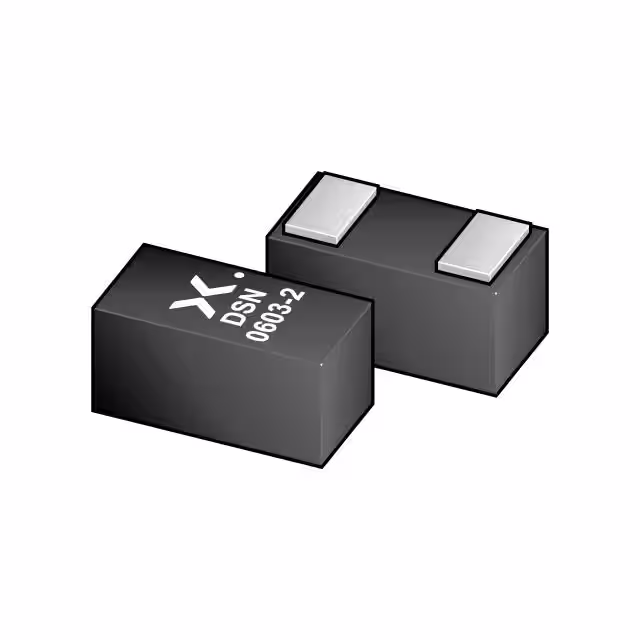

PMEG3005AESFCYLPMEG3005AESF - 30V, 0.5A LOW VF |
63,000 | - |
|
Datasheet | - | 0201 (0603 Metric) | Bulk | Active | Schottky | 30 V | 500mA | 630 mV @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | 1.37 ns | 80 µA @ 30 V | 22pF @ 1V, 1MHz | - | - | Surface Mount | DSN0603-2 | -55°C ~ 150°C |
|
|
PMEG4002ESFCYLPMEG4002ESF - 40V, 0.2A LOW VF M |
63,000 | - |
|
Datasheet | - | 0201 (0603 Metric) | Bulk | Active | Schottky | 40 V | 200mA | 600 mV @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 1.28 ns | 6.5 µA @ 40 V | 17pF @ 1V, 1MHz | - | - | Surface Mount | DSN0603-2 | 150°C |
|
|
PMEG3002AESFCYLPMEG3002AESF - 30V, 0.2A LOW VF |
63,000 | - |
|
Datasheet | - | 0201 (0603 Metric) | Bulk | Active | Schottky | 30 V | 200mA | 470 mV @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 1.37 ns | 30 µA @ 10 V | 22pF @ 1V, 1MHz | - | - | Surface Mount | DSN0603-2 | 150°C |
|
|
PMEG3002ESFCYLPMEG3002ESF - 30V, 0.2A LOW VF M |
63,000 | - |
|
Datasheet | - | 0201 (0603 Metric) | Bulk | Active | Schottky | 30 V | 200mA | 535 mV @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 1.42 ns | 9 µA @ 30 V | 21pF @ 1V, 1MHz | - | - | Surface Mount | DSN0603-2 | 150°C |
|
|
PMEG4005ESFCYLPMEG4005ESF - 40V, 0.5A LOW VF M |
54,000 | - |
|
Datasheet | - | 0201 (0603 Metric) | Bulk | Active | Schottky | 40 V | 500mA | 880 mV @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | 1.28 ns | 6.5 µA @ 40 V | 17pF @ 1V, 1MHz | - | - | Surface Mount | DSN0603-2 | 150°C |
|
PMEG3010ESBCYLPMEG3010ESB - 30V, 1A LOW VF MEG |
18,888 | - |
|
Datasheet | - | 2-XDFN | Bulk | Active | Schottky | 30 V | 1A | 565 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 3.2 ns | 45 µA @ 30 V | 32pF @ 10V, 1MHz | - | - | Surface Mount | DSN1006-2 | 150°C |
