Single Diodes
Browse available Single Diodes part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GKN130/18DIODE GP 1.8KV 165A DO205AA |
4,882 | - |
|
Datasheet | - | DO-205AA, DO-8, Stud | Bulk | Active | Standard | 1800 V | 165A | 1.5 V @ 60 A | Standard Recovery >500ns, > 200mA (Io) | - | 22 mA @ 1800 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -55°C ~ 150°C |
|
GKR130/16DIODE GP 1.6KV 165A DO205AA |
4,233 | - |
|
Datasheet | - | DO-205AA, DO-8, Stud | Bulk | Active | Standard | 1600 V | 165A | 1.5 V @ 60 A | Standard Recovery >500ns, > 200mA (Io) | - | 22 mA @ 1600 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -40°C ~ 180°C |
|
|
VS-HFA180NH40PBFDIODE GEN PURP 400V 395A D-67 |
4,518 | - |
|
Datasheet | - | D-67 HALF-PAK | Bulk | Active | Standard | 400 V | 395A | 1.8 V @ 360 A | Fast Recovery =< 500ns, > 200mA (Io) | 140 ns | 4 mA @ 400 V | - | - | - | Chassis Mount | D-67 HALF-PAK | - |
|
|
1N3649DIODE GEN PURP 800V DO203AA |
7,895 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 800 V | - | 2.2 V @ 10 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 800 V | - | - | - | Stud Mount | DO-203AA (DO-4) | -65°C ~ 150°C |
|
|
1N3649RDIODE GEN PURP 800V DO203AA |
7,920 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 800 V | - | 2.2 V @ 10 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 800 V | - | - | - | Stud Mount | DO-203AA (DO-4) | -65°C ~ 150°C |
|
|
1N3650DIODE GEN PURP DO203AA |
5,917 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 1000 V | 3.3A | 2.2 V @ 10 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1000 V | - | - | - | Stud Mount | DO-203AA (DO-4) | - |
|
|
1N3650RDIODE GEN PURP DO203AA |
3,827 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 1000 V | 3.3A | 2.2 V @ 10 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1000 V | - | - | - | Stud Mount | DO-203AA (DO-4) | - |
|
|
GKR130/18DIODE GP REV 1.8KV 165A DO205AA |
7,381 | - |
|
Datasheet | - | DO-205AA, DO-8, Stud | Bulk | Active | Standard, Reverse Polarity | 1800 V | 165A | 1.5 V @ 60 A | Standard Recovery >500ns, > 200mA (Io) | - | 22 mA @ 1800 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -55°C ~ 150°C |
|

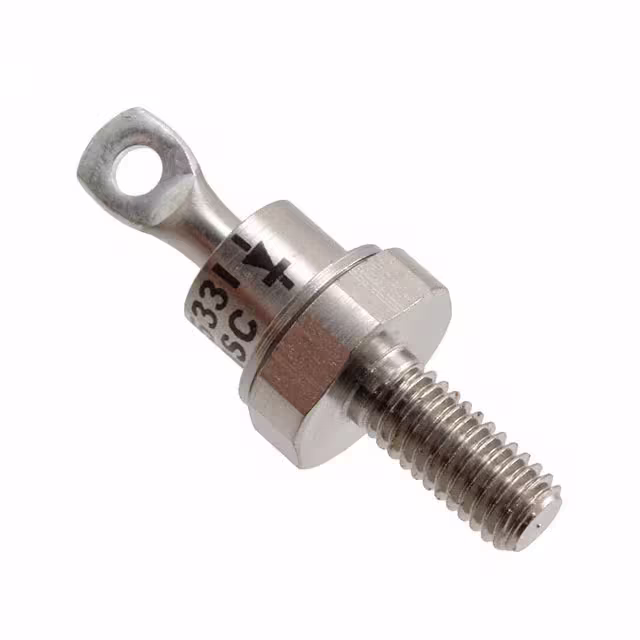

1N5331DIODE GEN PURP 1.4KV 22A DO4 |
7,427 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 1400 V | 22A | 1.2 V @ 30 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1400 V | - | - | - | Chassis, Stud Mount | DO-4 | -65°C ~ 200°C |
|
|
JAN1N5712UBDIODE SCHOTTKY UB |
4,990 | - |
|
Datasheet | - | 4-SMD, No Lead | Bulk | Active | Schottky | - | - | 1 V @ 35 mA | Small Signal =< 200mA (Io), Any Speed | - | - | 2pF @ 0V, 1MHz | Military | MIL-PRF-19500/444 | Surface Mount | UB | 150°C (Max) |
|
|
UES1302/TRDIODE GEN PURP 100V 6A AXIAL |
8,670 | - |
|
Datasheet | - | Axial | Tape & Reel (TR) | Active | Standard | 100 V | 6A | 925 mV @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 100 V | - | - | - | Through Hole | Axial | -55°C ~ 175°C |
|
|
JAN1N5712UB/TRSMALL-SIGNAL SCHOTTKY |
2,380 | - |
|
Datasheet | - | 3-SMD, No Lead | Tape & Reel (TR) | Active | Schottky | 16 V | 75mA | 1 V @ 35 mA | Small Signal =< 200mA (Io), Any Speed | - | 150 nA @ 16 V | 2pF @ 0V, 1MHz | Military | MIL-PRF-19500/444 | Surface Mount | UB | -65°C ~ 150°C |
|
|
JANKCE1N5804DIODE GEN PURP 100V 1A DIE |
7,893 | - |
|
Datasheet | - | Die | Tape & Reel (TR) | Active | Standard | 100 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 100 V | 25pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | Die | -65°C ~ 175°C |
|
|
JANKCE1N5802DIODE GEN PURP 50V 1A DIE |
6,322 | - |
|
Datasheet | - | Die | Tape & Reel (TR) | Active | Standard | 50 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 50 V | 25pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | Die | -65°C ~ 175°C |
|
GB50SLT12-247DIODE SIL CARB 1.2KV 50A TO247-2 |
5,935 | - |
|
Datasheet | - | TO-247-2 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 1200 V | 50A | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 1 mA @ 1200 V | 2940pF @ 1V, 1MHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
|
JANS1N6643DIODE GEN PURP 50V 300MA D-5D |
8,706 | - |
|
Datasheet | - | SQ-MELF, D | Bulk | Active | Standard | 50 V | 300mA | 1.2 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 6 ns | 500 nA @ 150 V | 5pF @ 0V, 1MHz | Military | MIL-PRF-19500/578 | Surface Mount | D-5D | -65°C ~ 175°C |
|
|
GATELEAD1110008XPSA1HIGH POWER THYR / DIO |
7,729 | - |
|
Datasheet | - | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GATELEADMPWHPK1258XXPSA1STD THYR/DIODEN DISC |
2,525 | - |
|
Datasheet | - | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GATELEADRD406XPSA1STD THYR/DIODEN DISC |
3,440 | - |
|
Datasheet | - | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GATELEADWH406XPSA1STD THYR/DIODEN DISC |
7,626 | - |
|
Datasheet | - | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
Single Diodes FAQ
Common questions about selecting, comparing and sourcing Single Diodes components through Winsun (HK) Electronics.
What should I check when selecting Single Diodes components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Single Diodes part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Single Diodes parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Single Diodes components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
