Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA3J142K0LDIODE GP 80V 100MA SMINI3-F1 |
4,628 | - |
|
Datasheet | - | SC-85 | Tape & Reel (TR) | Obsolete | Standard | 80 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 3 ns | 100 nA @ 75 V | 2pF @ 0V, 1MHz | - | - | Surface Mount | SMini3-F1 | 150°C (Max) |
|

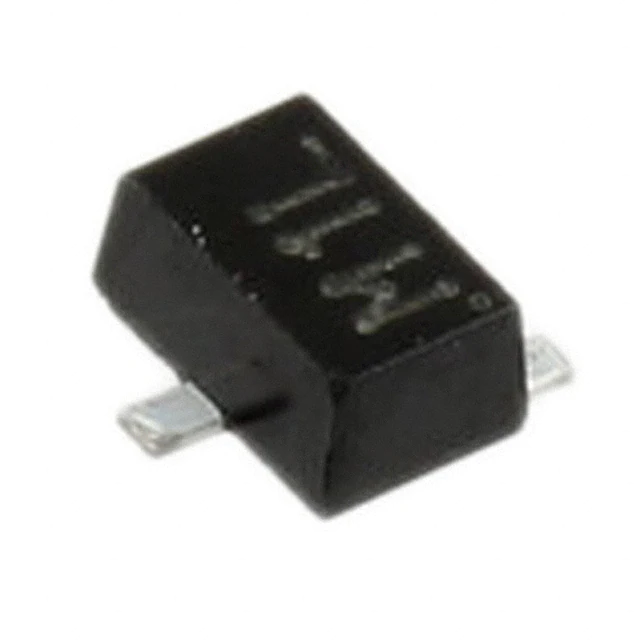

MA3J74100LDIODE SCHOTT 30V 30MA SMINI3-F1 |
2,002 | - |
|
Datasheet | - | SC-85 | Tape & Reel (TR) | Obsolete | Schottky | 30 V | 30mA | 1 V @ 30 mA | Small Signal =< 200mA (Io), Any Speed | 1 ns | 300 nA @ 30 V | 1.5pF @ 1V, 1MHz | - | - | Surface Mount | SMini3-F1 | 125°C (Max) |
|
MA3J74400LDIODE SCHOTT 30V 200MA SMINI3-F1 |
2,128 | - |
|
Datasheet | - | SC-85 | Tape & Reel (TR) | Obsolete | Schottky | 30 V | 200mA | 550 mV @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 3 ns | 50 µA @ 30 V | 30pF @ 0V, 1MHz | - | - | Surface Mount | SMini3-F1 | 150°C (Max) |
|
|
MA3J74500LDIODE SCHOTT 30V 30MA SMINI3-F1 |
2,633 | - |
|
Datasheet | - | SC-85 | Tape & Reel (TR) | Obsolete | Schottky | 30 V | 30mA | 1 V @ 30 mA | Small Signal =< 200mA (Io), Any Speed | 1 ns | 30 µA @ 30 V | 1.5pF @ 1V, 1MHz | - | - | Surface Mount | SMini3-F1 | 125°C (Max) |
|
MA3S132A0LDIODE GP 80V 100MA SSMINI3-F2 |
6,015 | - |
|
Datasheet | - | SC-89, SOT-490 | Tape & Reel (TR) | Obsolete | Standard | 80 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 3 ns | 100 nA @ 75 V | 2pF @ 0V, 1MHz | - | - | Surface Mount | SSMini3-F2 | 150°C (Max) |
|
|
MA3S79500LDIODE SCHOTT 30V 30MA SSMINI3-F2 |
5,727 | - |
|
Datasheet | - | SC-89, SOT-490 | Tape & Reel (TR) | Obsolete | Schottky | 30 V | 30mA | 1 V @ 30 mA | Small Signal =< 200mA (Io), Any Speed | 1 ns | 30 µA @ 30 V | 1.5pF @ 1V, 1MHz | - | - | Surface Mount | SSMini3-F2 | 125°C (Max) |
|
|
MA3S132K0LDIODE GP 80V 100MA SSMINI3-F2 |
8,588 | - |
|
Datasheet | - | SC-89, SOT-490 | Tape & Reel (TR) | Obsolete | Standard | 80 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 3 ns | 100 nA @ 75 V | 2pF @ 0V, 1MHz | - | - | Surface Mount | SSMini3-F2 | 150°C (Max) |
|
MA2SD1900LDIODE SCHOT 20V 200MA SSMINI2-F1 |
6,086 | - |
|
Datasheet | - | SC-79, SOD-523 | Tape & Reel (TR) | Obsolete | Schottky | 20 V | 200mA | 470 mV @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 2 ns | 15 µA @ 10 V | 15pF @ 0V, 1MHz | - | - | Surface Mount | SSMini2-F1 | 125°C (Max) |
|
MA4L11100ADIODE GEN PURP 80V LEADLESS |
7,235 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Obsolete | Standard | 80 V | - | - | Small Signal =< 200mA (Io), Any Speed | 3 ns | - | - | - | - | Surface Mount | Leadless | - |
|
MA4L72800ADIODE SCHOTTKY 30V 30MA LEADLESS |
9,410 | - |
|
Datasheet | - | SC-103 | Cut Tape (CT) | Obsolete | Schottky | 30 V | 30mA | 1 V @ 30 mA | Small Signal =< 200mA (Io), Any Speed | 1 ns | 300 nA @ 30 V | 1.5pF @ 1V, 1MHz | - | - | Surface Mount | ML4-N1 | - |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
