Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBR19AFC_R1_00001SURFACE MOUNT SCHOTTKY BARRIER R |
6,378 | - |
|
Datasheet | - | DO-221AC, SMA Flat Leads | Tape & Reel (TR) | Active | Schottky | 90 V | 1A | 800 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 90 V | 50pF @ 4V, 1MHz | - | - | Surface Mount | SMAF-C | -55°C ~ 150°C |
|
|
SB23AFC_R2_00001SURFACE MOUNT SCHOTTKY BARRIER R |
8,898 | - |
|
Datasheet | - | DO-221AC, SMA Flat Leads | Tape & Reel (TR) | Active | Schottky | 30 V | 2A | 500 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 30 V | 98pF @ 4V, 1MHz | - | - | Surface Mount | SMAF-C | -55°C ~ 150°C |
|
|
MBR2200_R2_00001SCHOTTKY BARRIER RECTIFIERS |
7,355 | - |
|
Datasheet | - | DO-204AC, DO-15, Axial | Tape & Reel (TR) | Active | Schottky | 200 V | 2A | 900 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 200 V | - | - | - | Through Hole | DO-15 | -65°C ~ 175°C |
|
|
SVT20100UA_R2_00001DIODE SCHOTTKY 100V 20A TO277A |
9,035 | - |
|
Datasheet | - | TO-277, 3-PowerDFN | Tape & Reel (TR) | Not For New Designs | Schottky | 100 V | 20A | 660 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 80 µA @ 100 V | - | - | - | Surface Mount | TO-277A | -55°C ~ 150°C |
|

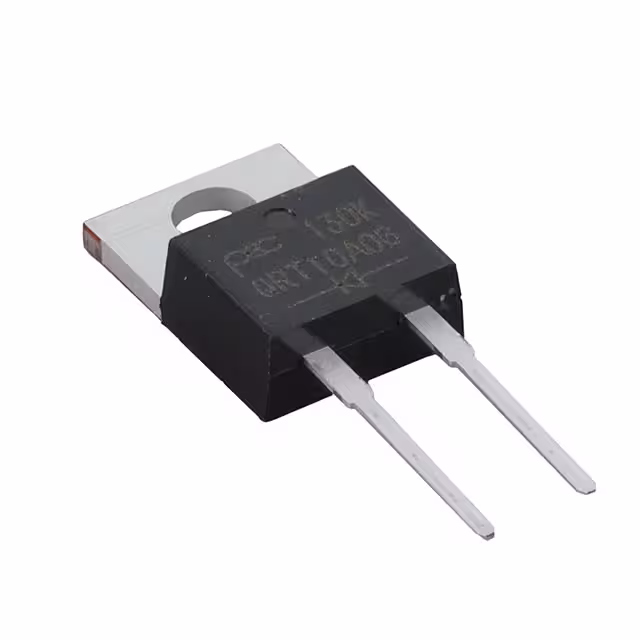

QRT10A06_T0_00001DIODE GEN PURP 600V 10A TO220AC |
5,758 | - |
|
Datasheet | - | TO-220-2 | Tube | Obsolete | Standard | 600 V | 10A | 2.4 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 32 ns | 1 µA @ 600 V | - | - | - | Through Hole | TO-220AC | -55°C ~ 175°C |
|
QRT10A06F_T0_00001DIODE GEN PURP 600V 10A ITO220AC |
6,362 | - |
|
Datasheet | - | TO-220-2 Full Pack, Isolated Tab | Tube | Obsolete | Standard | 600 V | 10A | 2.4 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 32 ns | 1 µA @ 600 V | - | - | - | Through Hole | ITO-220AC | -55°C ~ 175°C |
|
SBA0530Q-AU_R1_000A1DFN 2L, SKY |
5,709 | - |
|
Datasheet | - | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Schottky | 30 V | 500mA | 520 mV @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 30 V | - | Automotive | AEC-Q101 | Surface Mount | 2-DFN (1x0.6) | -55°C ~ 150°C |
|
|
SBA0540Q-AU_R1_000A1DFN 2L, SKY |
2,640 | - |
|
Datasheet | - | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Schottky | 40 V | 500mA | 600 mV @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 40 V | - | Automotive | AEC-Q101 | Surface Mount | 2-DFN (1x0.6) | -55°C ~ 150°C |
|
SBA240AH-AU_R1_000A1SOD-123HE, SKY |
5,657 | - |
|
Datasheet | - | SOD-123H | Tape & Reel (TR) | Active | Schottky | 40 V | 2A | 530 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 40 V | - | Automotive | AEC-Q101 | Surface Mount | SOD-123HE | -55°C ~ 150°C |
|
|
SB25UAFC_R1_00001SURFACE MOUNT SCHOTTKY BARRIER R |
5,927 | - |
|
Datasheet | - | DO-221AC, SMA Flat Leads | Tape & Reel (TR) | Active | Schottky | 50 V | 2A | 520 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 50 V | - | - | - | Surface Mount | SMAF-C | -55°C ~ 150°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
