Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R6002625XXYADIODE GP 2.6KV 250A DO205AB DO9 |
3,737 | - |
|
Datasheet | - | DO-205AB, DO-9, Stud | Bulk | Discontinued at Digi-Key | Standard | 2600 V | 250A | 1.5 V @ 800 A | Standard Recovery >500ns, > 200mA (Io) | 11 µs | 50 mA @ 2600 V | - | - | - | Chassis, Stud Mount | DO-205AB (DO-9) | -65°C ~ 175°C |
|
|
R6012625XXYADIODE GP REV 2.6KV 250A DO205AB |
8,366 | - |
|
Datasheet | - | DO-205AB, DO-9, Stud | Bulk | Discontinued at Digi-Key | Standard, Reverse Polarity | 2600 V | 250A | 1.5 V @ 800 A | Standard Recovery >500ns, > 200mA (Io) | 11 µs | 50 mA @ 2600 V | - | - | - | Chassis, Stud Mount | DO-205AB (DO-9) | -65°C ~ 175°C |
|

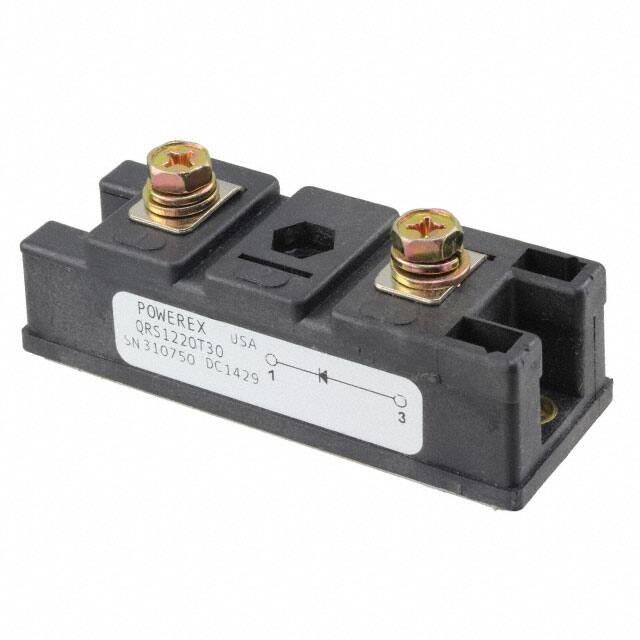

QRS1220T30DIODE GEN PURP 1.2KV 127A MODULE |
4,114 | - |
|
Datasheet | - | Module | Bulk | Obsolete | Standard | 1200 V | 127A | 3.5 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | 1 mA @ 1200 V | - | - | - | Chassis Mount | Module | - |
|
|
R7S01416XXDIODE GP 1.4KV 2020A HOCKEY PUCK |
5,927 | - |
|
Datasheet | - | DO-200AA, A-PUK | Bulk | Discontinued at Digi-Key | Standard | 1400 V | 2020A | - | Standard Recovery >500ns, > 200mA (Io) | 7 µs | 50 mA @ 1400 V | - | - | - | Clamp On | Hockey Puck | -65°C ~ 200°C |
|
|
QRS4506002DIODE GEN PURP 4.5KV 60A 3SMD |
3,019 | - |
|
Datasheet | - | 3-SMD Module | Bulk | Obsolete | Standard | 4500 V | 60A | 6.2 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 230 ns | 1 mA @ 4500 V | - | - | - | Surface Mount | - | -55°C ~ 150°C |
|
|
A190PEDIODE GEN PURP 1.5KV 250A DO205 |
9,643 | - |
|
Datasheet | - | DO-205AB, DO-9, Stud | Bulk | Discontinued at Digi-Key | Standard | 1500 V | 250A | 1.3 V @ 250 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | - | -40°C ~ 200°C |
|
|
QRS4506001DIODE GEN PURP 4.5KV 60A |
9,580 | - |
|
Datasheet | - | 3-FLATLEAD | Bulk | Discontinued at Digi-Key | Standard | 4500 V | 60A | 6.2 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 230 ns | 1 mA @ 4500 V | - | - | - | Chassis Mount | - | -55°C ~ 150°C |
|
|
A397PBDIODE GEN PURP 1.2KV 400A DO200 |
5,238 | - |
|
Datasheet | - | DO-200AA, A-PUK | Bulk | Discontinued at Digi-Key | Standard | 1200 V | 400A | - | Fast Recovery =< 500ns, > 200mA (Io) | - | - | - | - | - | Clamp On | - | -40°C ~ 125°C |
|
|
R7S01616XXDIODE GP 1.6KV 2020A HOCKEY PUCK |
8,003 | - |
|
Datasheet | - | DO-200AA, A-PUK | Bulk | Discontinued at Digi-Key | Standard | 1600 V | 2020A | - | Standard Recovery >500ns, > 200mA (Io) | 7 µs | 50 mA @ 1600 V | - | - | - | Clamp On | Hockey Puck | -65°C ~ 200°C |
|
|
QRS0640T30DIODE GEN PURP 600V 195A MODULE |
3,345 | - |
|
Datasheet | - | Module | Bulk | Obsolete | Standard | 600 V | 195A | 2.8 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | 110 ns | 1 mA @ 600 V | - | - | - | Chassis Mount | Module | - |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
