Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R9G00418XXDIODE GP 400V 1800A DO200AB |
2,037 | - |
|
Datasheet | - | DO-200AB, B-PUK | Bulk | Discontinued at Digi-Key | Standard | 400 V | 1800A | 1.2 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | 25 µs | 150 mA @ 400 V | - | - | - | Clamp On | DO-200AB, B-PUK | - |
|

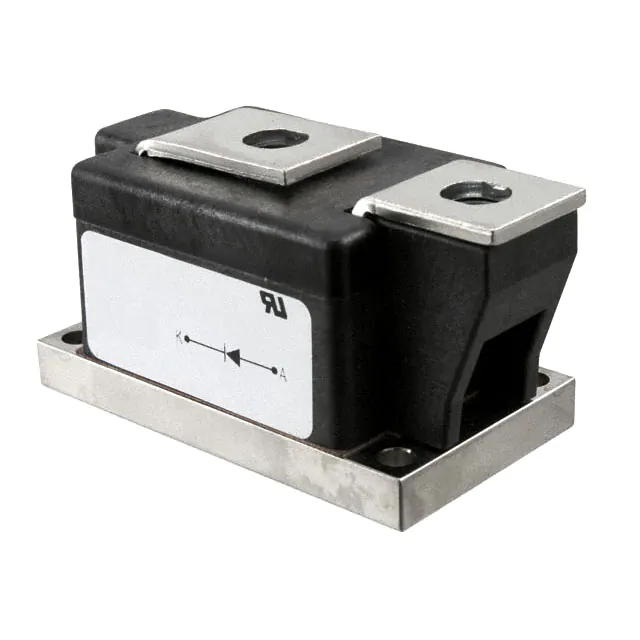

LS412260DIODE GP 2.2KV 600A POW-R-BLOK |
3,655 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Standard | 2200 V | 600A | 1.19 V @ 1800 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 2200 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module | - |
|
|
LS411860DIODE GP 1.8KV 600A POW-R-BLOK |
9,121 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Standard | 1800 V | 600A | 1.19 V @ 1800 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 1800 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module | - |
|
|
QRS1240T30DIODE GEN PURP 1.2KV 263A MODULE |
5,323 | - |
|
Datasheet | - | Module | Bulk | Obsolete | Standard | 1200 V | 263A | 3.5 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | 1 mA @ 1200 V | - | - | - | Chassis Mount | Module | - |
|
|
LS412460DIODE GP 2.4KV 600A POW-R-BLOK |
5,721 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Standard | 2400 V | 600A | 1.19 V @ 1800 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 2400 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module | - |
|
|
R9G00422XXDIODE GP 400V 2200A DO200AB |
6,337 | - |
|
Datasheet | - | DO-200AB, B-PUK | Bulk | Discontinued at Digi-Key | Standard | 400 V | 2200A | 1.1 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | 15 µs | 150 mA @ 400 V | - | - | - | Clamp On | DO-200AB, B-PUK | - |
|
|
R7014003XXUADIODE GP REV 4KV 300A DO200AA |
3,467 | - |
|
Datasheet | - | DO-200AA, A-PUK | Bulk | Discontinued at Digi-Key | Standard, Reverse Polarity | 4000 V | 300A | 2.15 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | 9 µs | 50 mA @ 4000 V | - | - | - | Chassis, Stud Mount | DO-200AA, R62 | -65°C ~ 200°C |
|
LS410860DIODE GP 800V 600A POW-R-BLOK |
6,591 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Active | Standard | 800 V | 600A | 1.19 V @ 1800 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 800 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module | - |
|
|
R6012225XXYADIODE GP REV 2.2KV 250A DO205AB |
2,924 | - |
|
Datasheet | - | DO-205AB, DO-9, Stud | Bulk | Discontinued at Digi-Key | Standard, Reverse Polarity | 2200 V | 250A | 1.5 V @ 800 A | Standard Recovery >500ns, > 200mA (Io) | 11 µs | 50 mA @ 2200 V | - | - | - | Chassis, Stud Mount | DO-205AB (DO-9) | -65°C ~ 175°C |
|
|
R9G00622XXDIODE GP 600V 2200A DO200AB |
6,899 | - |
|
Datasheet | - | DO-200AB, B-PUK | Bulk | Discontinued at Digi-Key | Standard | 600 V | 2200A | 1.1 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | 15 µs | 150 mA @ 600 V | - | - | - | Clamp On | DO-200AB, B-PUK | - |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
