Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDS82580XXDIODE GEN PURP 2.5KV 8000A |
6,567 | - |
|
Datasheet | - | DO-200AE | Bulk | Obsolete | Standard | 2500 V | 8000A | 820 mV @ 4000 A | Standard Recovery >500ns, > 200mA (Io) | 25 µs | 300 mA @ 2500 V | - | - | - | Clamp On | - | - |
|
|
PS414514DIODE GP 4.5KV 1800A POW-R-BLOK |
5,642 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Standard | 4500 V | 1800A | - | Standard Recovery >500ns, > 200mA (Io) | 30 µs | 400 mA @ 4500 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module | -40°C ~ 150°C |
|
|
RDK85840XXDIODE DISC RD 4000A 5800V |
2,318 | - |
|
Datasheet | * | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PS415014DIODE GP 5KV 1800A POW-R-BLOK |
7,534 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Standard | 5000 V | 1800A | - | Standard Recovery >500ns, > 200mA (Io) | 30 µs | 400 mA @ 5000 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module | -40°C ~ 150°C |
|
CS240610DIODE GP 600V 100A POW-R-BLOK |
2,482 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Obsolete | Standard | 600 V | 100A | 1.5 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | 800 ns | 20 mA @ 600 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module | - |
|
CS240650DIODE GP 600V 50A POW-R-BLOK |
5,470 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Obsolete | Standard | 600 V | 50A | 1.5 V @ 50 A | Standard Recovery >500ns, > 200mA (Io) | 800 ns | 10 mA @ 600 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module | - |
|

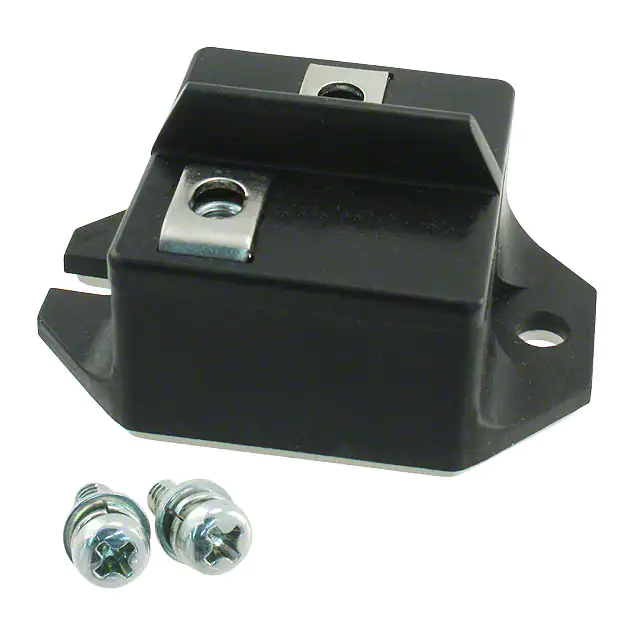

CS241210DIODE GP 1.2KV 100A POW-R-BLOK |
9,907 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Obsolete | Standard | 1200 V | 100A | 1.5 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | 800 ns | 20 mA @ 1200 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module | - |
|

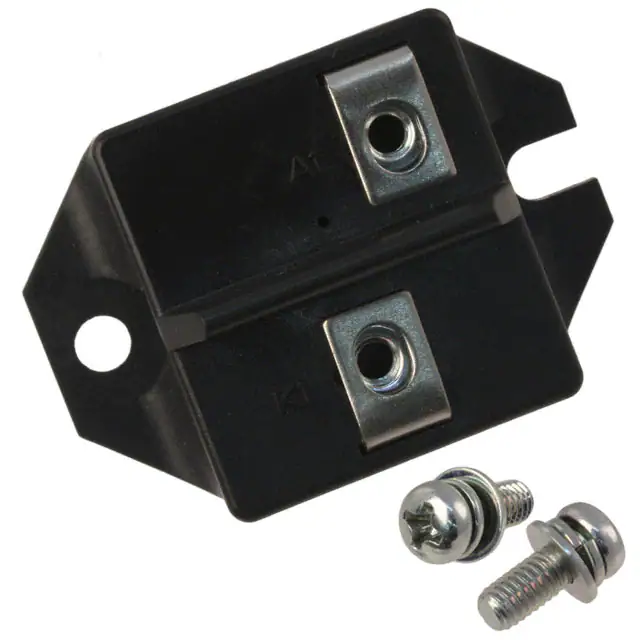

CS241250DIODE GP 1.2KV 50A POW-R-BLOK |
7,123 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Obsolete | Standard | 1200 V | 50A | 1.5 V @ 50 A | Standard Recovery >500ns, > 200mA (Io) | 800 ns | 10 mA @ 600 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module | - |
|
|
CS340602DIODE GP 600V 20A POW-R-BLOK |
3,896 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Obsolete | Standard | 600 V | 20A | 1.5 V @ 20 A | Standard Recovery >500ns, > 200mA (Io) | 800 ns | 5 mA @ 600 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module | - |
|
|
CS640525DIODE GEN PURP 500V 250A MODULE |
4,112 | - |
|
Datasheet | - | Module | Bulk | Obsolete | Standard | 500 V | 250A | 1.2 V @ 250 A | Standard Recovery >500ns, > 200mA (Io) | 650 ns | 20 mA @ 500 V | - | - | - | Chassis Mount | Module | - |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
