Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG "AP01CV1")
|
AP01CV1DIODE GEN PURP 1KV 200MA AXIAL |
8,209 | - |
|
Datasheet | - | Axial | Cut Tape (CT) | Active | Standard | 1000 V | 200mA | 4 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 200 ns | 100 µA @ 1000 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|

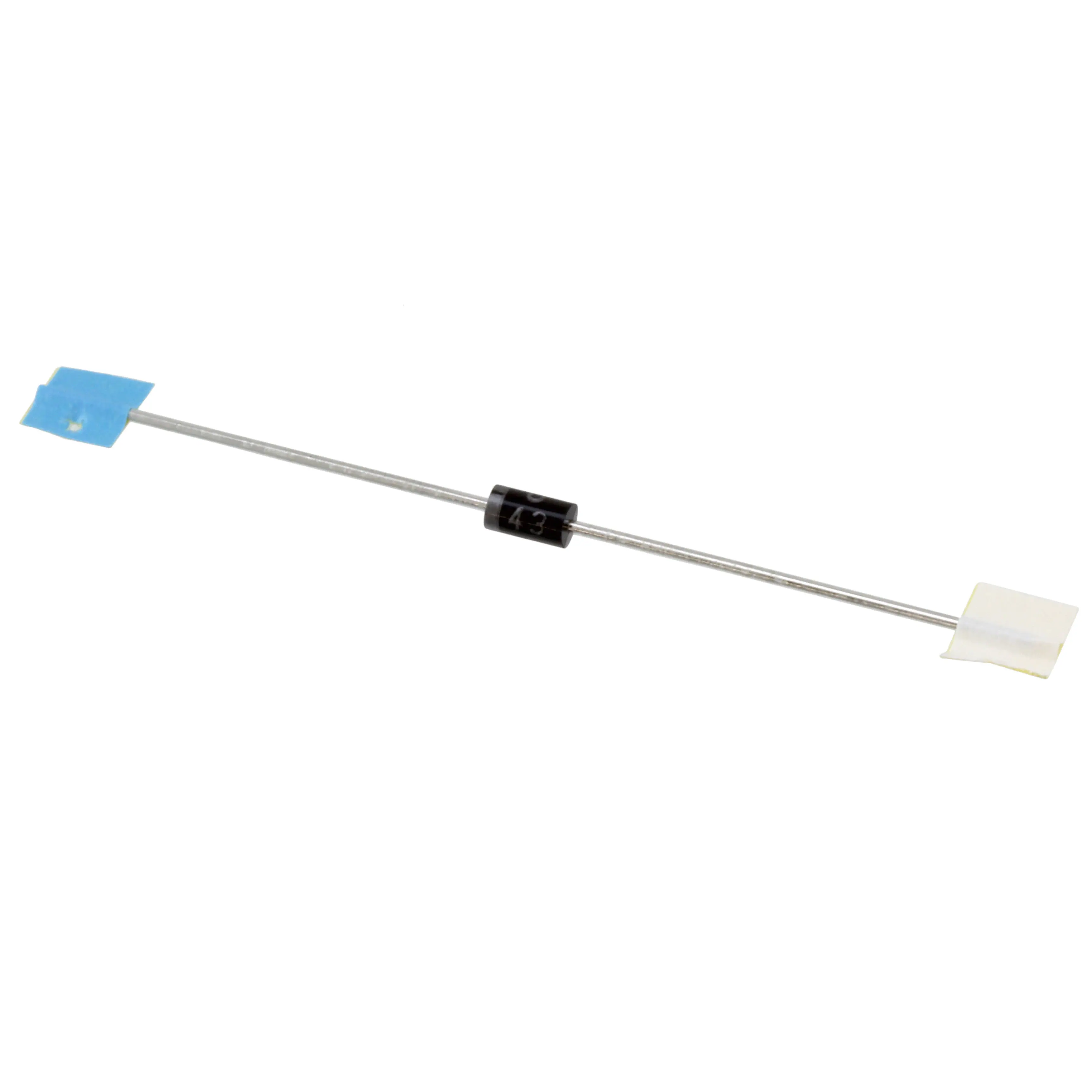

EM 1CV1DIODE GEN PURP 1KV 1A AXIAL |
8,102 | - |
|
Datasheet | - | Axial | Cut Tape (CT) | Active | Standard | 1000 V | 1A | 1.05 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 µA @ 1000 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|
EM 2AV1DIODE GEN PURP 600V 1.2A AXIAL |
5,882 | - |
|
Datasheet | - | Axial | Cut Tape (CT) | Active | Standard | 600 V | 1.2A | 920 mV @ 1.2 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 600 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|
|
EM 2V1DIODE GEN PURP 400V 1.2A AXIAL |
3,105 | - |
|
Datasheet | - | Axial | Cut Tape (CT) | Active | Standard | 400 V | 1.2A | 920 mV @ 1.2 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 400 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|
|
ES01FV1DIODE GEN PURP 1.5KV 500MA AXIAL |
3,879 | - |
|
Datasheet | - | Axial | Cut Tape (CT) | Active | Standard | 1500 V | 500mA | 2 V @ 500 mA | Standard Recovery >500ns, > 200mA (Io) | 1.5 µs | 10 µA @ 1500 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|
FMX-1106SDIODE GEN PURP 600V 10A TO220F |
15 | - |
|
Datasheet | - | TO-220-2 Full Pack | Tube | Obsolete | Standard | 600 V | 10A | 1.5 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 50 µA @ 600 V | - | - | - | Through Hole | TO-220F-2L | -40°C ~ 150°C |
|
SG-10LXZ23RDIODE FOR ALTERNATOR (SURFACE MO |
4,619 | - |
|
Datasheet | - | 2-SMD, Gull Wing | Bulk | Active | Standard, Reverse Polarity | 17 V | 35A | 1.05 V @ 35 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Surface Mount | - | -40°C ~ 150°C |
|
|
SG-10LXZ23SDIODE FOR ALTERNATOR (SURFACE MO |
5,069 | - |
|
Datasheet | - | 2-SMD, Gull Wing | Bulk | Active | Standard | 17 V | 35A | 1.05 V @ 35 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Surface Mount | - | -40°C ~ 150°C |
|
|
SG-10LRDIODE FOR ALTERNATOR (SURFACE MO |
7,295 | - |
|
Datasheet | - | 2-SMD, Gull Wing | Bulk | Active | Standard, Reverse Polarity | 20000 V | 30A | 1.2 V @ 30 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Surface Mount | - | -40°C ~ 150°C |
|
|
SG-10LSDIODE FOR ALTERNATOR (SURFACE MO |
2,440 | - |
|
Datasheet | - | 2-SMD, Gull Wing | Bulk | Active | Standard | 20000 V | 30A | 1.2 V @ 30 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Surface Mount | - | -40°C ~ 150°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
