Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N5399GDIODE GEN PURP 1.5A DO204AC |
6,604 | - |
|
Datasheet | - | DO-204AC, DO-15, Axial | Tape & Reel (TR) | Active | Standard | 1000 V | 1.5A | 1 V @ 1.5 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1000 V | 15pF @ 4V, 1MHz | - | - | Through Hole | DO-204AC (DO-15) | -55°C ~ 150°C |
|
S2GDIODE GEN PURP 400V 2A DO214AA |
6,012 | - |
|
Datasheet | - | DO-214AA, SMB | Tape & Reel (TR) | Active | Standard | 400 V | 2A | 1.15 V @ 2 A | Standard Recovery >500ns, > 200mA (Io) | 1.5 µs | 1 µA @ 400 V | 30pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AA (SMB) | -55°C ~ 150°C |
|
S2KDIODE GEN PURP 800V 2A DO214AA |
6,000 | - |
|
Datasheet | - | DO-214AA, SMB | Tape & Reel (TR) | Active | Standard | 800 V | 2A | 1.15 V @ 2 A | Standard Recovery >500ns, > 200mA (Io) | 1.5 µs | 1 µA @ 800 V | 30pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AA (SMB) | -55°C ~ 150°C |
|
|
PE2DB20NS, 2A, 200V, ULTRA FAST RECOV |
5,980 | - |
|
Datasheet | - | DO-214AA, SMB | Tape & Reel (TR) | Active | Standard | 200 V | 2A | 900 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 20 ns | 2 µA @ 200 V | 30pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AA (SMB) | -55°C ~ 175°C |
|
|
S2DDIODE GEN PURP 200V 2A DO214AA |
5,475 | - |
|
Datasheet | - | DO-214AA, SMB | Tape & Reel (TR) | Active | Standard | 200 V | 2A | 1.15 V @ 2 A | Standard Recovery >500ns, > 200mA (Io) | 1.5 µs | 1 µA @ 200 V | 30pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AA (SMB) | -55°C ~ 150°C |
|
|
HER207GDIODE GEN PURP 800V 2A DO204AC |
3,320 | - |
|
Datasheet | - | DO-204AC, DO-15, Axial | Tape & Reel (TR) | Active | Standard | 800 V | 2A | 1.7 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 5 µA @ 800 V | 20pF @ 4V, 1MHz | - | - | Through Hole | DO-204AC (DO-15) | -55°C ~ 150°C |
|

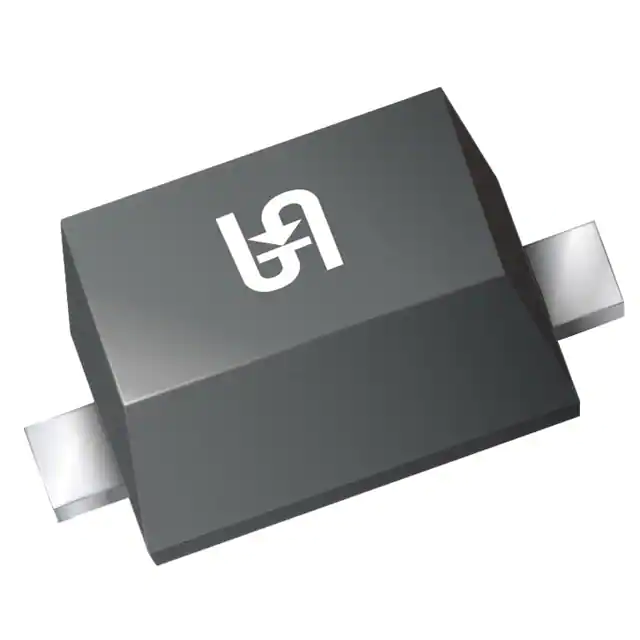

B0540WF RHGDIODE SCHOTTKY 40V 500MA SOD123F |
2,990 | - |
|
Datasheet | - | SOD-123F | Tape & Reel (TR) | Active | Schottky | 40 V | 500mA | 510 mV @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 µA @ 40 V | - | - | - | Surface Mount | SOD-123F | -65°C ~ 150°C |
|
|
HS2KFSH75NS, 2A, 800V, HIGH EFFICIENT R |
28,000 | - |
|
Datasheet | - | SOD-128 | Tape & Reel (TR) | Active | Standard | 800 V | 2A | 1.7 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 1 µA @ 800 V | 12pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | SOD-128 | -55°C ~ 150°C |
|
|
RS2MALH500NS, 2A, 1000V, FAST RECOVERY |
28,000 | - |
|
Datasheet | - | DO-221AC, SMA Flat Leads | Tape & Reel (TR) | Active | Standard | 1000 V | 2A | 1.3 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 1 µA @ 1000 V | 10pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | Thin SMA | -55°C ~ 150°C |
|
|
RS2JALH250NS, 2A, 600V, FAST RECOVERY R |
28,000 | - |
|
Datasheet | - | DO-221AC, SMA Flat Leads | Tape & Reel (TR) | Active | Standard | 600 V | 2A | 1.3 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | 1 µA @ 600 V | 11pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | Thin SMA | -55°C ~ 150°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
