Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-45L10DIODE GEN PURP 100V 150A DO205AC |
3,733 | - |
|
Datasheet | - | DO-205AC, DO-30, Stud | Bulk | Obsolete | Standard | 100 V | 150A | 1.33 V @ 471 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Stud Mount | DO-205AC (DO-30) | -40°C ~ 200°C |
|
|
VS-45L20DIODE GEN PURP 200V 150A DO205AC |
4,433 | - |
|
Datasheet | - | DO-205AC, DO-30, Stud | Bulk | Obsolete | Standard | 200 V | 150A | 1.33 V @ 471 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Stud Mount | DO-205AC (DO-30) | -40°C ~ 200°C |
|
|
VS-45L60DIODE GEN PURP 600V 150A DO205AC |
8,963 | - |
|
Datasheet | - | DO-205AC, DO-30, Stud | Bulk | Obsolete | Standard | 600 V | 150A | 1.33 V @ 471 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Stud Mount | DO-205AC (DO-30) | -40°C ~ 200°C |
|
|
VS-45LR10DIODE GP REV 100V 150A DO205AC |
5,518 | - |
|
Datasheet | - | DO-205AC, DO-30, Stud | Bulk | Obsolete | Standard, Reverse Polarity | 100 V | 150A | 1.33 V @ 471 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Stud Mount | DO-205AC (DO-30) | -40°C ~ 200°C |
|
|
VS-45LR20DIODE GP REV 200V 150A DO205AC |
6,703 | - |
|
Datasheet | - | DO-205AC, DO-30, Stud | Bulk | Obsolete | Standard, Reverse Polarity | 200 V | 150A | 1.33 V @ 471 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Stud Mount | DO-205AC (DO-30) | -40°C ~ 200°C |
|
|
VS-45LR40DIODE GP REV 400V 150A DO205AC |
6,962 | - |
|
Datasheet | - | DO-205AC, DO-30, Stud | Bulk | Obsolete | Standard, Reverse Polarity | 400 V | 150A | 1.33 V @ 471 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Stud Mount | DO-205AC (DO-30) | -40°C ~ 200°C |
|

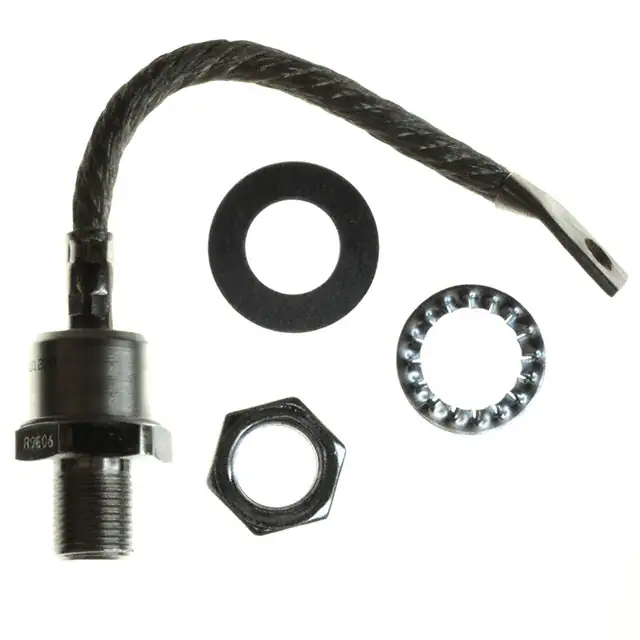

VS-70U60AMADIODE GP REV 600V 300A DO205AB |
4,699 | - |
|
Datasheet | - | DO-205AB, DO-9, Stud | Bulk | Active | Standard, Reverse Polarity | 600 V | 300A | 1.4 V @ 942 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Stud Mount | DO-205AB (DO-9) | -65°C ~ 180°C |
|
|
VS-SD1100C32JDIODE GEN PURP 3.2KV 1100A B-43 |
8,609 | - |
|
Datasheet | - | DO-200AA, A-PUK | Bulk | Obsolete | Standard | 3200 V | 1100A | 1.44 V @ 1500 A | Fast Recovery =< 500ns, > 200mA (Io) | - | - | - | - | - | Clamp On | B-43, Hockey PUK | -40°C ~ 150°C |
|

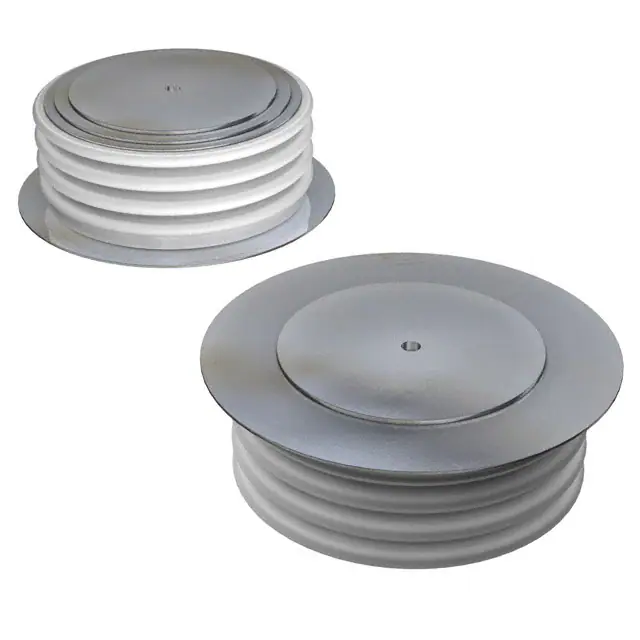

VS-SD1553C18S20KDIODE GP 1.8KV 1825A DO200AC |
2,950 | - |
|
Datasheet | - | DO-200AC, K-PUK | Bulk | Obsolete | Standard | 1800 V | 1825A | 2.23 V @ 4000 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | - | - | - | - | Clamp On | DO-200AC, K-PUK | -40°C ~ 150°C |
|
|
VS-SD1553C25S20KDIODE GP 2.5KV 1825A DO200AC |
2,923 | - |
|
Datasheet | - | DO-200AC, K-PUK | Bulk | Obsolete | Standard | 2500 V | 1825A | 2.23 V @ 4000 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | - | - | - | - | Clamp On | DO-200AC, K-PUK | -40°C ~ 150°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
