Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GSD2004WS-E3-08DIODE GEN PURP 240V 225MA SOD323 |
15,977 | - |
|
Datasheet | - | SC-76, SOD-323 | Tape & Reel (TR) | Active | Standard | 240 V | 225mA | 1 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 nA @ 240 V | 5pF @ 0V, 1MHz | - | - | Surface Mount | SOD-323 | 150°C (Max) |
|
|
BAV21WS-HE3-08DIODE GEN PURP 200V 250MA SOD323 |
14,749 | - |
|
Datasheet | - | SC-76, SOD-323 | Tape & Reel (TR) | Active | Standard | 200 V | 250mA | 1.25 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 nA @ 200 V | 1.5pF @ 0V, 1MHz | Automotive | AEC-Q101 | Surface Mount | SOD-323 | 150°C (Max) |
|
|
BAV19WS-E3-08DIODE GEN PURP 100V 250MA SOD323 |
11,681 | - |
|
Datasheet | - | SC-76, SOD-323 | Tape & Reel (TR) | Active | Standard | 100 V | 250mA | 1.25 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 nA @ 100 V | 1.5pF @ 0V, 1MHz | - | - | Surface Mount | SOD-323 | 150°C (Max) |
|
1N4937-E3/73DIODE GEN PURP 600V 1A DO204AL |
7,361 | - |
|
Datasheet | - | DO-204AL, DO-41, Axial | Cut Tape (CT) | Active | Standard | 600 V | 1A | 1.2 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 5 µA @ 600 V | 12pF @ 4V, 1MHz | - | - | Through Hole | DO-204AL (DO-41) | -50°C ~ 150°C |
|

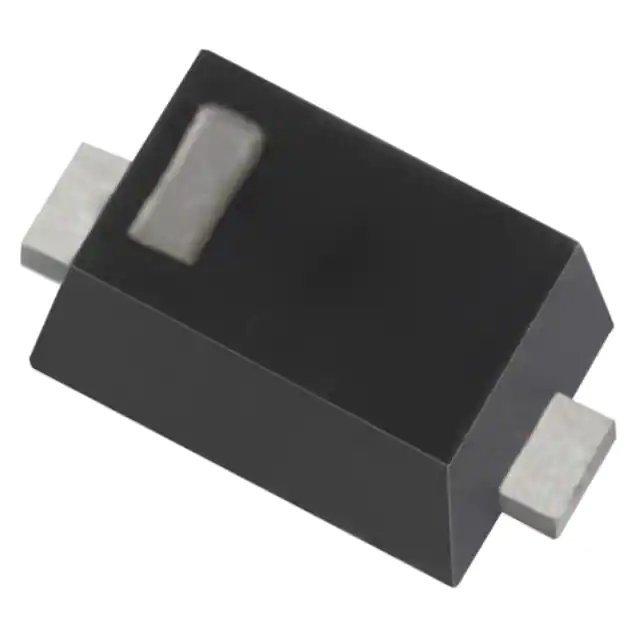

BAT54-02V-G3-08DIODE SCHOTTKY 30V 200MA SOD523 |
2,885 | - |
|
Datasheet | - | SC-79, SOD-523 | Tape & Reel (TR) | Active | Schottky | 30 V | 200mA | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 10pF @ 1V, 1MHz | - | - | Surface Mount | SOD-523 | 125°C |
|

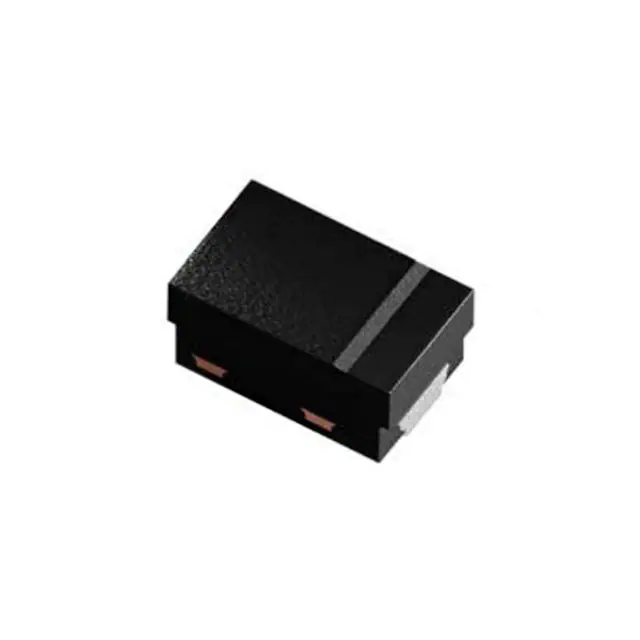

BAS40L-G3-08DIODE SCHOTTKY 40V 200MA DFN1006 |
2,569 | - |
|
Datasheet | - | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Schottky | 40 V | 200mA | 1 V @ 40 mA | Small Signal =< 200mA (Io), Any Speed | - | 10 µA @ 40 V | 2.9pF @ 0V, 1MHz | - | - | Surface Mount | DFN1006-2A | 150°C |
|
|
1N4005-E3/73DIODE GEN PURP 600V 1A DO204AL |
75,091 | - |
|
Datasheet | - | DO-204AL, DO-41, Axial | Cut Tape (CT) | Active | Standard | 600 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 600 V | 15pF @ 4V, 1MHz | - | - | Through Hole | DO-204AL (DO-41) | -55°C ~ 150°C |
|
BAT83S-TRDIODE SCHOTTKY 60V 30MA DO35 |
70,562 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Schottky | 60 V | 30mA | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 60 V | 1.6pF @ 1V, 1MHz | Automotive | AEC-Q101 | Through Hole | DO-204AH (DO-35) | 125°C (Max) |
|
|
1N4004-E3/54DIODE GEN PURP 400V 1A DO204AL |
47,409 | - |
|
Datasheet | - | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Active | Standard | 400 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 400 V | 15pF @ 4V, 1MHz | - | - | Through Hole | DO-204AL (DO-41) | -55°C ~ 150°C |
|
|
BAT42-TRDIODE SCHOTTKY 30V 200MA DO35 |
45,867 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Schottky | 30 V | 200mA | 650 mV @ 50 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 500 nA @ 25 V | 7pF @ 1V, 1MHz | - | - | Through Hole | DO-204AH (DO-35) | 125°C (Max) |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
