Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD103A-TRDIODE SCHOTTKY 40V DO35 |
52,764 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Schottky | 40 V | - | 600 mV @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 10 ns | 5 µA @ 30 V | 50pF @ 0V, 1MHz | - | - | Through Hole | DO-204AH (DO-35) | 125°C (Max) |
|
SD103AW-E3-18DIODE SCHOTTKY 40V SOD123 |
46,216 | - |
|
Datasheet | - | SOD-123 | Tape & Reel (TR) | Active | Schottky | 40 V | - | 600 mV @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 10 ns | 5 µA @ 30 V | 50pF @ 0V, 1MHz | - | - | Surface Mount | SOD-123 | 125°C (Max) |
|
BA159-E3/54DIODE GEN PURP 1KV 1A DO204AL |
44,828 | - |
|
Datasheet | - | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.3 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 5 µA @ 1000 V | 12pF @ 4V, 1MHz | - | - | Through Hole | DO-204AL (DO-41) | -65°C ~ 125°C |
|
|
SD103AW-E3-08DIODE SCHOTTKY 40V SOD123 |
33,852 | - |
|
Datasheet | - | SOD-123 | Tape & Reel (TR) | Active | Schottky | 40 V | - | 600 mV @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 10 ns | 5 µA @ 30 V | 50pF @ 0V, 1MHz | - | - | Surface Mount | SOD-123 | 125°C (Max) |
|
V2P6-M3/HDIODE SCHOTTKY 60V 2A MICROSMP |
30,640 | - |
|
Datasheet | eSMP® | DO-219AD | Tape & Reel (TR) | Active | Schottky | 60 V | 2A | 630 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 60 V | 195pF @ 4V, 1MHz | - | - | Surface Mount | DO-219AD (MicroSMP) | -40°C ~ 150°C |
|

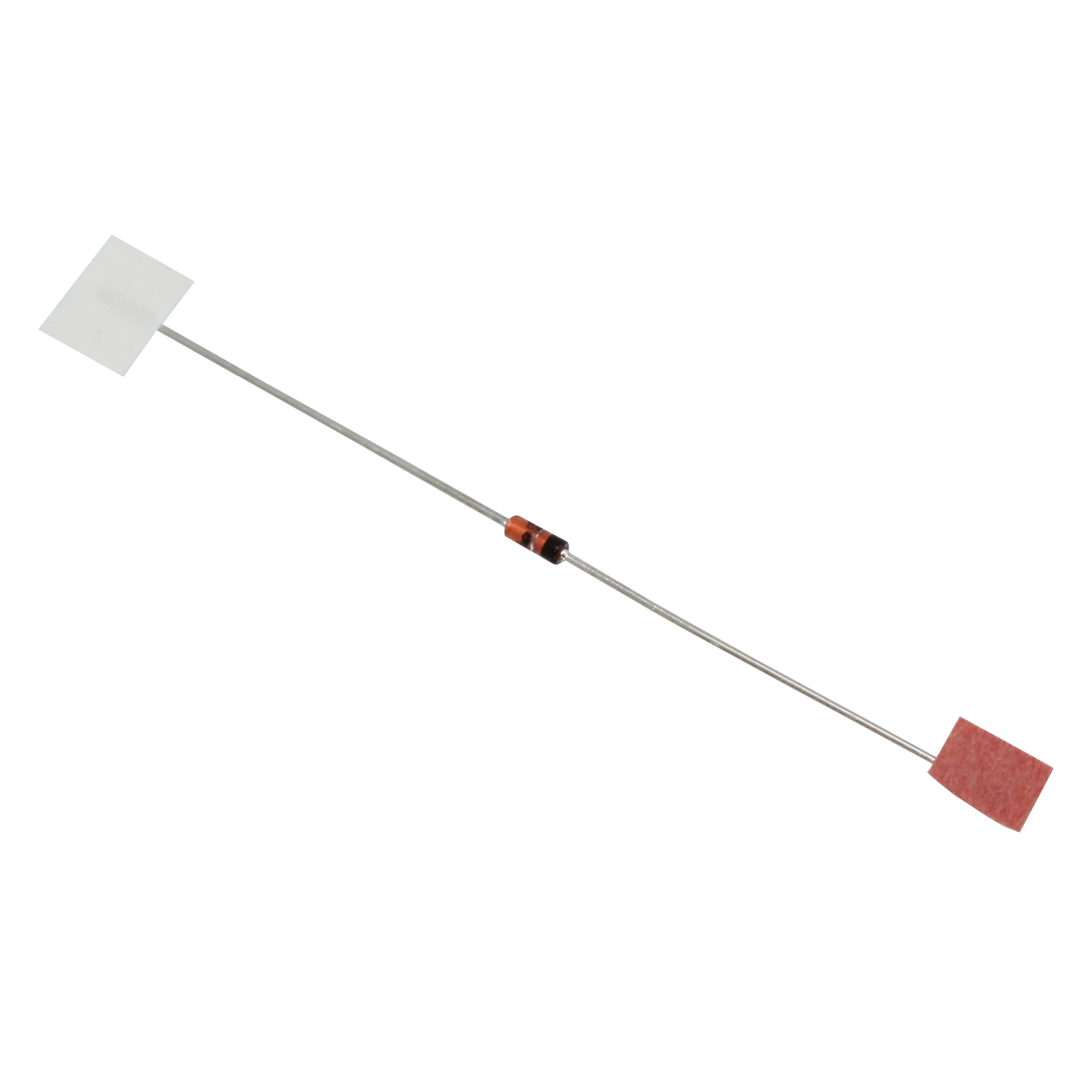

SD103B-TRDIODE SCHOTTKY 30V DO35 |
29,870 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Schottky | 30 V | - | 600 mV @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 10 ns | 5 µA @ 20 V | 50pF @ 0V, 1MHz | - | - | Through Hole | DO-204AH (DO-35) | 125°C (Max) |
|
B140-E3/5ATDIODE SCHOTTKY 40V 1A DO214AC |
28,491 | - |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 520 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 40 V | - | - | - | Surface Mount | DO-214AC (SMA) | -65°C ~ 125°C |
|
SS1F4HM3/HDIODE SCHOTTKY 40V 1A DO219AB |
12,637 | - |
|
Datasheet | - | DO-219AB | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 520 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 40 V | 85pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DO-219AB (SMF) | 175°C (Max) |
|
|
SD101AW-E3-08DIODE SCHOTTKY 60V 30MA SOD123 |
11,269 | - |
|
Datasheet | - | SOD-123 | Tape & Reel (TR) | Active | Schottky | 60 V | 30mA | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | 1 ns | 200 nA @ 50 V | 2pF @ 0V, 1MHz | - | - | Surface Mount | SOD-123 | -55°C ~ 125°C |
|
BAS40-00-E3-08DIODE SCHOTTKY 40V 200MA SOT23-3 |
10,635 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Schottky | 40 V | 200mA | 1 V @ 50 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 100 nA @ 30 V | 5pF @ 0V, 1MHz | - | - | Surface Mount | SOT-23-3 | 125°C (Max) |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
