Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V3FM15-M3/HDIODE SCHOTTKY 150V 3A DO219AB |
45,977 | - |
|
Datasheet | eSMP®, TMBS® | DO-219AB | Tape & Reel (TR) | Active | Schottky | 150 V | 3A | 1.24 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 85 µA @ 150 V | 150pF @ 4V, 1MHz | - | - | Surface Mount | DO-219AB (SMF) | -40°C ~ 175°C |
|
ES1B-E3/5ATDIODE GEN PURP 100V 1A DO214AC |
21,083 | - |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | Standard | 100 V | 1A | 920 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 5 µA @ 100 V | 10pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AC (SMA) | -55°C ~ 150°C |
|
LL103B-GS08DIODE SCHOT 30V 200MA SOD80 |
18,373 | - |
|
Datasheet | - | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Active | Schottky | 30 V | 200mA | 600 mV @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 10 ns | 5 µA @ 20 V | 50pF @ 0V, 1MHz | - | - | Surface Mount | SOD-80 MiniMELF | 125°C (Max) |
|
|
SS1FN6-M3/HDIODE SCHOTTKY 60V 1A DO219AB |
12,700 | - |
|
Datasheet | eSMP® | DO-219AB | Tape & Reel (TR) | Active | Schottky | 60 V | 1A | 530 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 60 V | 90pF @ 4V, 1MHz | - | - | Surface Mount | DO-219AB (SMF) | -55°C ~ 150°C |
|
|
S1MHE3_A/HDIODE GEN PURP 1KV 1A DO214AC |
8,481 | - |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | 1.8 µs | 5 µA @ 1000 V | 12pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) | -55°C ~ 150°C |
|
|
B160-E3/61TDIODE SCHOTTKY 60V 1A DO214AC |
6,934 | - |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | Schottky | 60 V | 1A | 750 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 60 V | - | - | - | Surface Mount | DO-214AC (SMA) | -65°C ~ 150°C |
|
|
S1DHE3_A/HDIODE GEN PURP 200V 1A DO214AC |
5,722 | - |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | Standard | 200 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | 1.8 µs | 1 µA @ 200 V | 12pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) | -55°C ~ 150°C |
|

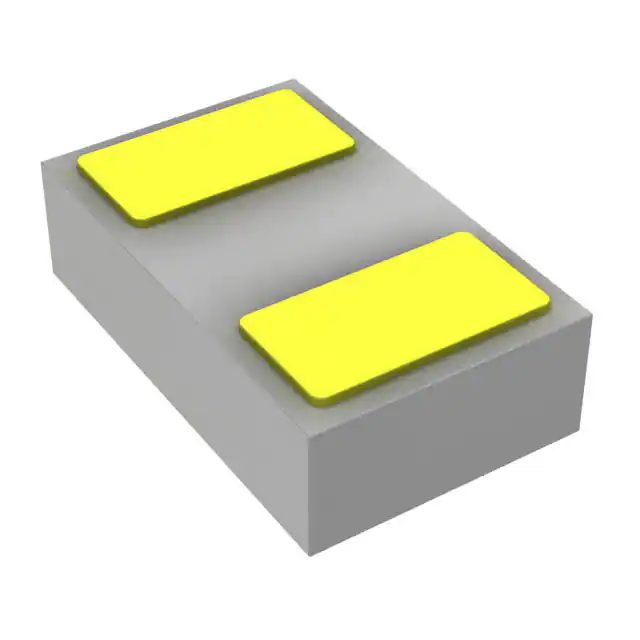

VSKY05301006-G4-08DIODE SCHOT 30V 500MA CLP1006-2L |
120,334 | - |
|
Datasheet | - | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Schottky | 30 V | 500mA | 430 mV @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 75 µA @ 30 V | 140pF @ 0V, 1MHz | - | - | Surface Mount | CLP1006-2L | 150°C (Max) |
|
V1PM12-M3/HDIODE SCHOTTKY 120V 1A MICROSMP |
98,505 | - |
|
Datasheet | eSMP® | DO-219AD | Tape & Reel (TR) | Active | Schottky | 120 V | 1A | 870 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 120 V | 100pF @ 4V, 1MHz | - | - | Surface Mount | DO-219AD (MicroSMP) | -40°C ~ 175°C |
|
|
VSKY05201006-G4-08DIODE SCHOT 20V 500MA CLP1006-2L |
61,290 | - |
|
Datasheet | - | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Schottky | 20 V | 500mA | 430 mV @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 75 µA @ 20 V | 150pF @ 0V, 1MHz | - | - | Surface Mount | CLP1006-2L | 150°C (Max) |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
