Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

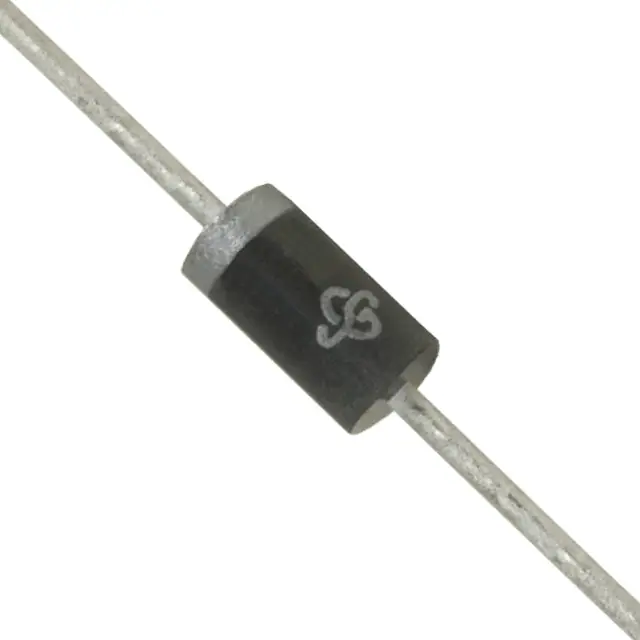

SB2H100-E3/54DIODE SCHOTTKY 100V 2A DO204AC |
7,672 | - |
|
Datasheet | - | DO-204AC, DO-15, Axial | Tape & Reel (TR) | Active | Schottky | 100 V | 2A | 790 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 100 V | - | - | - | Through Hole | DO-204AC (DO-15) | -55°C ~ 175°C |
~~2.jpg "VSSAF5M6-M3/H")
|
VSSAF5M6-M3/HDIODE SCHOTTKY 60V 5A DO221AC |
4,054 | - |
|
Datasheet | TMBS®, SlimSMA™ | DO-221AC, SMA Flat Leads | Tape & Reel (TR) | Active | Schottky | 60 V | 5A | 660 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 350 µA @ 60 V | 580pF @ 4V, 1MHz | - | - | Surface Mount | DO-221AC (SlimSMA) | -40°C ~ 175°C |
|
B360B-E3/5BTDIODE SCHOTTKY 60V 3A DO214AA |
3,497 | - |
|
Datasheet | - | DO-214AA, SMB | Tape & Reel (TR) | Active | Schottky | 60 V | 3A | 660 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 60 V | - | - | - | Surface Mount | DO-214AA (SMB) | -55°C ~ 150°C |
|
VS-3EMU06-M3/5ATDIODE GEN PURP 600V 3A DO214AC |
29,811 | - |
|
Datasheet | FRED Pt® | DO-214AC, SMA | Tape & Reel (TR) | Active | Standard | 600 V | 3A | 1.7 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 41 ns | 3 µA @ 600 V | - | - | - | Surface Mount | DO-214AC (SMA) | -55°C ~ 175°C |
;;2.jpg "BYM13-40-E3/96")
|
BYM13-40-E3/96DIODE SCHOTTKY 40V 1A GL41 |
8,764 | - |
|
Datasheet | - | DO-213AB, MELF | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 500 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | 110pF @ 4V, 1MHz | - | - | Surface Mount | DO-213AB (GL41) | -55°C ~ 125°C |
|
SB320-E3/54DIODE SCHOTTKY 20V 3A DO201AD |
7,092 | - |
|
Datasheet | - | DO-201AD, Axial | Tape & Reel (TR) | Active | Schottky | 20 V | 3A | 490 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 20 V | - | - | - | Through Hole | DO-201AD | -65°C ~ 150°C |
|
GF1A-E3/67ADIODE GEN PURP 50V 1A DO214BA |
4,648 | - |
|
Datasheet | SUPERECTIFIER® | DO-214BA | Tape & Reel (TR) | Active | Standard | 50 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 5 µA @ 50 V | 15pF @ 4V, 1MHz | - | - | Surface Mount | DO-214BA (GF1) | -65°C ~ 175°C |
|
BYM07-200-E3/98DIODE GP 200V 500MA DO213AA |
4,473 | - |
|
Datasheet | SUPERECTIFIER® | DO-213AA (Glass) | Tape & Reel (TR) | Active | Standard | 200 V | 500mA | 1.25 V @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 5 µA @ 200 V | 7pF @ 4V, 1MHz | - | - | Surface Mount | DO-213AA (GL34) | -65°C ~ 175°C |
|
|
1N5822-E3/73DIODE SCHOTTKY 40V 3A DO201AD |
3,000 | - |
|
Datasheet | - | DO-201AD, Axial | Cut Tape (CT) | Active | Schottky | 40 V | 3A | 525 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 40 V | - | - | - | Through Hole | DO-201AD | -65°C ~ 125°C |
|
|
SB340-E3/73DIODE SCHOTTKY 40V 3A DO201AD |
39,138 | - |
|
Datasheet | - | DO-201AD, Axial | Cut Tape (CT) | Active | Schottky | 40 V | 3A | 490 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | - | - | - | Through Hole | DO-201AD | -65°C ~ 125°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
