Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS10P6-M3/86ADIODE SCHOTTKY 60V 7A TO277A |
133,463 | - |
|
Datasheet | eSMP® | TO-277, 3-PowerDFN | Tape & Reel (TR) | Active | Schottky | 60 V | 7A | 550 mV @ 7 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 60 V | - | - | - | Surface Mount | TO-277A (SMPC) | -55°C ~ 150°C |
|
VS-50WQ10FNTRL-M3DIODE SCHOTTKY 100V 5.5A DPAK |
17,398 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Schottky | 100 V | 5.5A | 770 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | 183pF @ 5V, 1MHz | - | - | Surface Mount | TO-252AA (DPAK) | -40°C ~ 150°C |
|
|
VS-50WQ06FNTR-M3DIODE SCHOTTKY 60V 5.5A DPAK |
7,002 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Schottky | 60 V | 5.5A | 570 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 60 V | 360pF @ 5V, 1MHz | - | - | Surface Mount | TO-252AA (DPAK) | -40°C ~ 150°C |
|
|
V10P10HM3_A/HDIODE SCHOTTKY 100V 10A TO277A |
5,573 | - |
|
Datasheet | eSMP®, TMBS® | TO-277, 3-PowerDFN | Tape & Reel (TR) | Active | Schottky | 100 V | 10A | 680 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 100 V | - | Automotive | AEC-Q101 | Surface Mount | TO-277A (SMPC) | -40°C ~ 150°C |
|

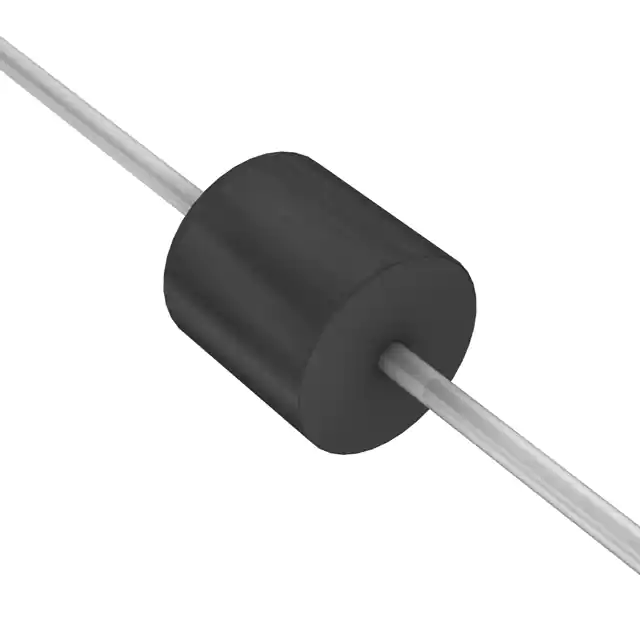

GI756-E3/54DIODE GEN PURP 600V 6A P600 |
322 | - |
|
Datasheet | - | P600, Axial | Tape & Reel (TR) | Active | Standard | 600 V | 6A | 900 mV @ 6 A | Standard Recovery >500ns, > 200mA (Io) | 2.5 µs | 5 µA @ 600 V | 150pF @ 4V, 1MHz | - | - | Through Hole | P600 | -50°C ~ 150°C |
|
VS-30BQ100-M3/9ATDIODE SCHOTTKY 100V 3A DO214AB |
13,349 | - |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Active | Schottky | 100 V | 3A | 790 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 100 V | 115pF @ 5V, 1MHz | - | - | Surface Mount | DO-214AB (SMC) | -55°C ~ 175°C |
|
|
VS-30BQ015-M3/9ATDIODE SCHOTTKY 15V 3A DO214AB |
8,549 | - |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Active | Schottky | 15 V | 3A | 350 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 15 V | 1120pF @ 5V, 1MHz | - | - | Surface Mount | DO-214AB (SMC) | -55°C ~ 125°C |
|
|
VS-30BQ040-M3/9ATDIODE SCHOTTKY 40V 3A DO214AB |
2,806 | - |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Active | Schottky | 40 V | 3A | 530 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | 230pF @ 5V, 1MHz | - | - | Surface Mount | DO-214AB (SMC) | -55°C ~ 150°C |
|
GI752-E3/54DIODE GEN PURP 200V 6A P600 |
6,659 | - |
|
Datasheet | - | P600, Axial | Tape & Reel (TR) | Active | Standard | 200 V | 6A | 900 mV @ 6 A | Standard Recovery >500ns, > 200mA (Io) | 2.5 µs | 5 µA @ 200 V | 150pF @ 4V, 1MHz | - | - | Through Hole | P600 | -50°C ~ 150°C |
|
|
VS-15AWL06FNTR-M3DIODE GEN PURP 600V 15A DPAK |
9,213 | - |
|
Datasheet | FRED Pt® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Standard | 600 V | 15A | 1.05 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 120 ns | 10 µA @ 600 V | - | - | - | Surface Mount | TO-252AA (DPAK) | -65°C ~ 175°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
