Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPS5819E3/TR7DIODE SCHOTTKY 40V 1A POWERMITE1 |
28,124 | - |
|
Datasheet | - | DO-216AA | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 550 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 40 V | 60pF @ 5V, 1MHz | - | - | Surface Mount | Powermite 1 (DO216-AA) | -55°C ~ 150°C |
|
1N6642UDIODE GEN PURP 75V 300MA D-5D |
445 | - |
|
Datasheet | - | SQ-MELF, D | Bulk | Active | Standard | 75 V | 300mA | 800 mV @ 10 mA | Fast Recovery =< 500ns, > 200mA (Io) | 5 ns | 500 µA @ 75 V | - | - | - | Surface Mount | D-5D | -65°C ~ 175°C |
|
APT10SCD120KDIODE SIL CARB 1.2KV 10A TO220 |
297 | - |
|
Datasheet | - | TO-220-2 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 1200 V | 10A | 1.5 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | - | - | - | - | Through Hole | TO-220-2 | - |
|
1N5806/TRDIODE GEN PURP 150V 2.5A APAK |
26 | - |
|
Datasheet | - | A, Axial | Tape & Reel (TR) | Active | Standard | 150 V | 2.5A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 150 V | - | - | - | Through Hole | A, Axial | -65°C ~ 175°C |
|

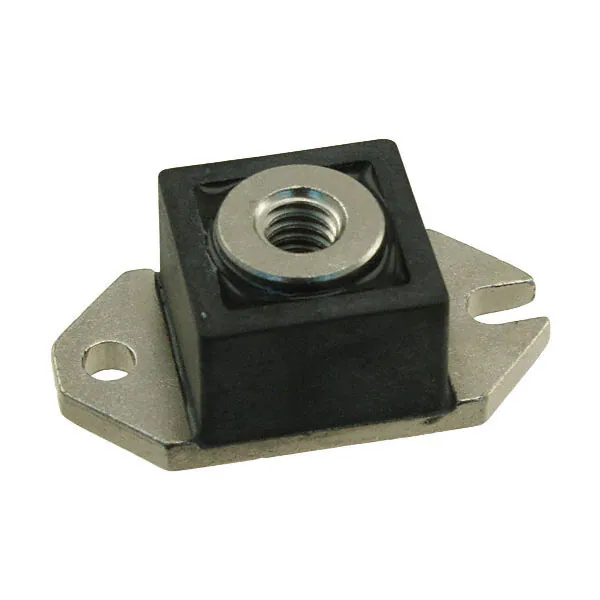

HU20260DIODE GP 600V 200A HALF-PAK |
3 | - |
|
Datasheet | - | HALF-PAK | Bulk | Obsolete | Standard | 600 V | 200A | 1.35 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 130 ns | 50 µA @ 600 V | - | - | - | Chassis Mount | HALF-PAK | - |
|
|
UMA5817-T7DIODE SCHOTTKY 20V 1A ULTRAMITE |
4,789 | - |
|
Datasheet | - | Ultramite™ | Tape & Reel (TR) | Obsolete | Schottky | 20 V | 1A | 450 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 20 V | - | - | - | Surface Mount | Ultramite™ | -50°C ~ 125°C |
|
|
UMA5818DIODE SCHOTTKY 30V 1A ULTRAMITE |
7,574 | - |
|
Datasheet | - | Ultramite™ | Tape & Reel (TR) | Obsolete | Schottky | 30 V | 1A | 550 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 30 V | - | - | - | Surface Mount | Ultramite™ | -50°C ~ 125°C |
|
|
LSM115JDIODE SCHOTTKY 15V 1A DO214BA |
8,416 | - |
|
Datasheet | - | DO-214BA | Tape & Reel (TR) | Obsolete | Schottky | 15 V | 1A | 220 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 15 V | - | - | - | Surface Mount | DO-214BA | -55°C ~ 100°C |
|
|
5817SMGE3/TR13DIODE SCHOTTKY 20V 1A DO215AA |
7,506 | - |
|
Datasheet | - | DO-215AA, SMB Gull Wing | Tape & Reel (TR) | Obsolete | Schottky | 20 V | 1A | 450 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | - | - | - | Surface Mount | DO-215AA | -55°C ~ 150°C |
|
|
5818SMGE3/TR13DIODE SCHOTTKY 30V 1A DO215AA |
8,384 | - |
|
Datasheet | - | DO-215AA, SMB Gull Wing | Tape & Reel (TR) | Obsolete | Schottky | 30 V | 1A | 550 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 30 V | - | - | - | Surface Mount | DO-215AA | -55°C ~ 150°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
