Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DGS20-018ASDIODE SCHOTTKY 180V 23A TO263AA |
8,529 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | Schottky | 180 V | 23A | 1 V @ 7.5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 180 V | - | - | - | Surface Mount | TO-263AA | -55°C ~ 175°C |
|
DMA100A1600NBPWRDIODEDISC-RECTIFIER SOT-227UI |
6,126 | - |
|
Datasheet | - | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DS75-12BDIODE GP 1.2KV 110A DO203AB |
4,175 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Box | Obsolete | Standard | 1200 V | 110A | 1.17 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 6 mA @ 1200 V | - | - | - | Chassis, Stud Mount | DO-203AB | -40°C ~ 180°C |
75.jpg "DSI75-12B")
|
DSI75-12BDIODE GP 1.2KV 110A DO203AB |
9,704 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Box | Obsolete | Standard | 1200 V | 110A | 1.17 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 6 mA @ 1200 V | - | - | - | Chassis, Stud Mount | DO-203AB | -40°C ~ 180°C |
|
|
DS75-08BDIODE GEN PURP 800V 110A DO203AB |
4,934 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Box | Obsolete | Standard | 800 V | 110A | 1.17 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 6 mA @ 800 V | - | - | - | Chassis, Stud Mount | DO-203AB | -40°C ~ 180°C |
|
|
DSI75-08BDIODE GEN PURP 800V 110A DO203AB |
8,341 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Box | Obsolete | Standard | 800 V | 110A | 1.17 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 6 mA @ 800 V | - | - | - | Chassis, Stud Mount | DO-203AB | -40°C ~ 180°C |
|

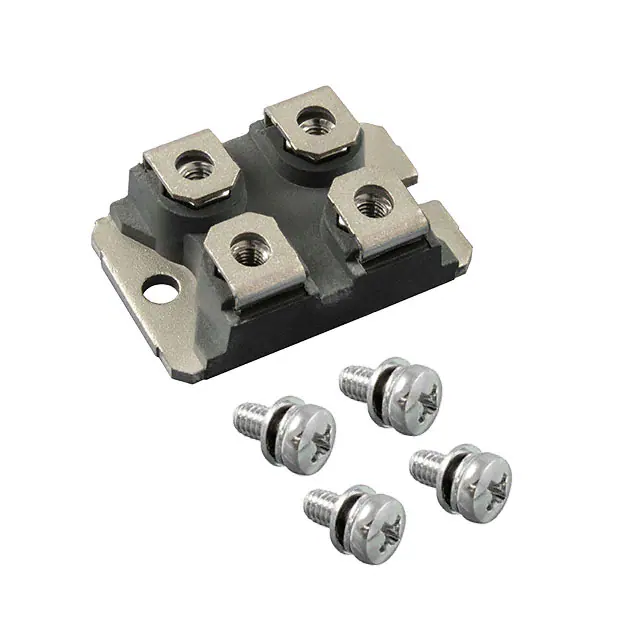

DSA300I45NADIODE SCHOTTKY 45V 300A SOT227B |
9,528 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Obsolete | Schottky | 45 V | 300A | 840 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 45 V | 16500pF @ 5V, 1MHz | - | - | Chassis Mount | SOT-227B | - |
|
DSA300I100NADIODE SCHOTTKY 100V 300A SOT227B |
7,265 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Obsolete | Schottky | 100 V | 300A | 990 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 100 V | 4860pF @ 12V, 1MHz | - | - | Chassis Mount | SOT-227B | -40°C ~ 150°C |
|
|
DNA120E2200KODIODE GP 2.2KV 120A ISOPLUS264 |
4,299 | - |
|
Datasheet | - | ISOPLUS264™ | Tube | Active | Standard | 2200 V | 120A | 1.31 V @ 120 A | Standard Recovery >500ns, > 200mA (Io) | - | 100 µA @ 2200 V | 88pF @ 700V, 1MHz | - | - | Through Hole | ISOPLUS264™ | -55°C ~ 175°C |
|
|
DSA75-12BDIODE AVAL 1.2KV 110A DO203AB |
3,797 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Box | Obsolete | Avalanche | 1200 V | 110A | 1.17 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 6 mA @ 1200 V | - | - | - | Chassis, Stud Mount | DO-203AB | -40°C ~ 180°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
