Single Diodes

Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Technology	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Speed	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Capacitance @ Vr, F	Grade	Qualification	Mounting Type	Supplier Device Package	Operating Temperature - Junction
W5282ZC240 DIODE GEN PURP 2.4KV 5282A W7 IXYS	7,360	-	RFQ	Datasheet	-	DO-200AE	Box	Active	Standard	2400 V	5282A	1.35 V @ 6000 A	Standard Recovery >500ns, > 200mA (Io)	-	100 mA @ 2400 V	-	-	-	Chassis Mount	W7	-55°C ~ 160°C
W5282ZC300 DIODE GEN PURP 3KV 5282A W7 IXYS	2,080	-	RFQ	Datasheet	-	DO-200AE	Box	Active	Standard	3000 V	5282A	1.35 V @ 6000 A	Standard Recovery >500ns, > 200mA (Io)	-	100 mA @ 3000 V	-	-	-	Chassis Mount	W7	-55°C ~ 160°C
M1583VF450 DIODE GEN PURP 4.5KV 1583A W43 IXYS	9,383	-	RFQ	Datasheet	-	DO-200AD	Box	Active	Standard	4500 V	1583A	2.8 V @ 2000 A	Standard Recovery >500ns, > 200mA (Io)	5 µs	150 mA @ 4500 V	-	-	-	Chassis Mount	W43	-40°C ~ 150°C
M1565VF450 DIODE GEN PURP 4.5KV 1565A W43 IXYS	9,398	-	RFQ	Datasheet	-	DO-200AD	Box	Active	Standard	4500 V	1565A	1.8 V @ 2000 A	Standard Recovery >500ns, > 200mA (Io)	5 µs	100 mA @ 4500 V	-	-	-	Chassis Mount	W43	-40°C ~ 125°C
M2325HA400 DIODE GEN PURP 4KV 2325A W121 IXYS	2,060	-	RFQ	Datasheet	-	DO-200AD	Box	Active	Standard	4000 V	2325A	2.6 V @ 2500 A	Standard Recovery >500ns, > 200mA (Io)	5.4 µs	150 mA @ 4000 V	-	-	-	Chassis Mount	W121	-40°C ~ 150°C

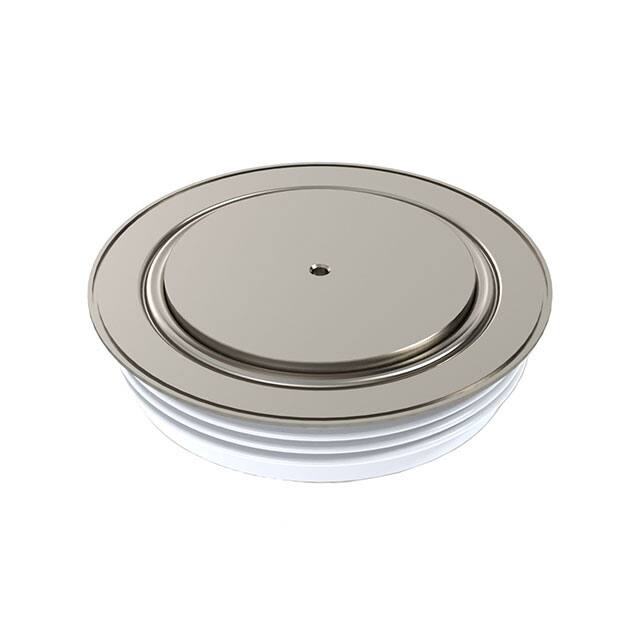

W2865HA680 DIODE GEN PURP 6.8KV 4825A W121 IXYS	5,158	-	RFQ	Datasheet	-	DO-200AD	Box	Active	Standard	6800 V	4825A	4.04 V @ 10000 A	Standard Recovery >500ns, > 200mA (Io)	53 µs	100 mA @ 6800 V	-	-	-	Chassis Mount	W121	-40°C ~ 150°C
M2325HA450 DIODE GEN PURP 4.5KV 2325A W121 IXYS	9,387	-	RFQ	Datasheet	-	DO-200AD	Box	Active	Standard	4500 V	2325A	2.6 V @ 2500 A	Standard Recovery >500ns, > 200mA (Io)	5.4 µs	150 mA @ 4500 V	-	-	-	Chassis Mount	W121	-40°C ~ 150°C
W2865HA720 DIODE GEN PURP 7200V 4825A W121 IXYS	5,150	-	RFQ	Datasheet	-	DO-200AD	Box	Active	Standard	7200 V	4825A	4.04 V @ 10000 A	Standard Recovery >500ns, > 200mA (Io)	53 µs	100 mA @ 7200 V	-	-	-	Chassis Mount	W121	-40°C ~ 150°C
W108CED180 DIODE GEN PURP 1.8KV 10815A W112 IXYS	6,999	-	RFQ	Datasheet	-	DO-200AE	Box	Active	Standard	1800 V	10815A	-	Standard Recovery >500ns, > 200mA (Io)	-	-	-	-	-	Chassis Mount	W112	-
W108CED220 DIODE GEN PURP 2.2KV 10815A W112 IXYS	5,818	-	RFQ	Datasheet	-	DO-200AE	Box	Active	Standard	2200 V	10815A	-	Standard Recovery >500ns, > 200mA (Io)	-	-	-	-	-	Chassis Mount	W112	-
