Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSFMT104-HFDIODE GEN PURP 200V 1A SOD123H |
6,827 | - |
|
Datasheet | - | SOD-123H | Tape & Reel (TR) | Active | Standard | 200 V | 1A | 950 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 5 µA @ 200 V | 10pF @ 4V, 1MHz | - | - | Surface Mount | SOD-123H | -55°C ~ 150°C |
|
ACURN105-HFDIODE GEN PURP 1KV 1A 1206 |
5,695 | - |
|
Datasheet | - | Nonstandard SMD | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.7 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 5 µA @ 1000 V | 10pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | 1206/SOD-123 | -65°C ~ 175°C |
|
CDBM1100-GDIODE SCHOT 100V 1A MINISMA |
135,719 | - |
|
Datasheet | - | SOD-123T | Tape & Reel (TR) | Active | Schottky | 100 V | 1A | 850 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 100 V | 120pF @ 4V, 1MHz | - | - | Surface Mount | Mini SMA/SOD-123 | -50°C ~ 150°C |
|
CGRB307-GDIODE GEN PURP 1KV 3A DO214AA |
91,223 | - |
|
Datasheet | - | DO-214AA, SMB | Tape & Reel (TR) | Active | Standard | 1000 V | 3A | 1.1 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1000 V | - | - | - | Surface Mount | DO-214AA (SMB) | 150°C (Max) |
|
CDBC340-GDIODE SCHOTTKY 40V 3A DO214AB |
62,578 | - |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Active | Schottky | 40 V | 3A | 500 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | - | - | - | Surface Mount | DO-214AB (SMC) | 125°C (Max) |
|
|
CDBC560-HFDIODE SCHOTTKY 60V 5A DO214AB |
1,284 | - |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Active | Schottky | 60 V | 5A | 750 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 60 V | 380pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AB (SMC) | -50°C ~ 150°C |
|
|
CDBC3100-GDIODE SCHOTTKY 100V 3A DO214AB |
56,872 | - |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Active | Schottky | 100 V | 3A | 850 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 100 V | - | - | - | Surface Mount | DO-214AB (SMC) | -50°C ~ 125°C |
|
CDBA240LL-GDIODE SCHOTTKY 40V 2A DO214AC |
27,433 | - |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | Schottky | 40 V | 2A | 360 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 40 V | - | - | - | Surface Mount | DO-214AC (SMA) | 125°C (Max) |
|
|
CDBA360LR-HFDIODE SCHOTTKY 60V 3A DO214AC |
15,294 | - |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | Schottky | 60 V | 3A | 550 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 60 V | 250pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AC (SMA) | -50°C ~ 150°C |
|

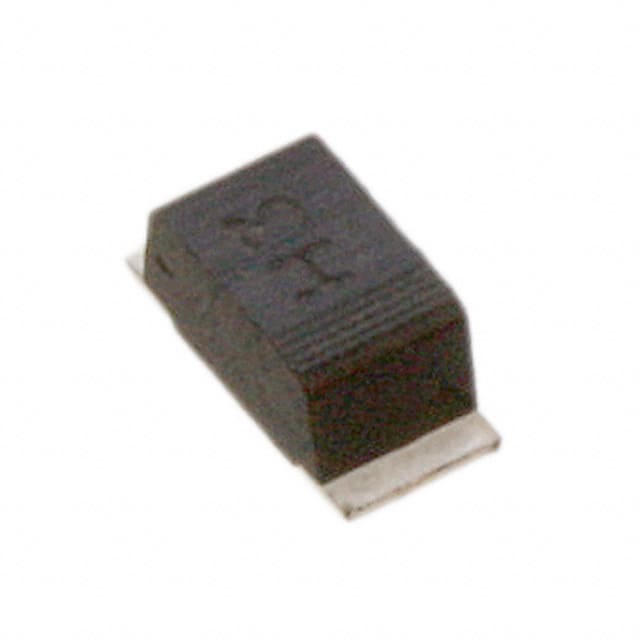

CURM103-GDIODE GP 200V 1A MINI SMA/SOD123 |
8,873 | - |
|
Datasheet | - | SOD-123T | Tape & Reel (TR) | Active | Standard | 200 V | 1A | 1 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 5 µA @ 200 V | - | - | - | Surface Mount | Mini SMA/SOD-123 | -55°C ~ 150°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
