Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FR201GB-GDIODE GEN PURP 50V 2A DO15 |
2,932 | - |
|
Datasheet | - | DO-204AC, DO-15, Axial | Tape & Box (TB) | Active | Standard | 50 V | 2A | 1.3 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 5 µA @ 50 V | - | - | - | Through Hole | DO-15 | -55°C ~ 150°C |
|
|
FR206GB-GDIODE GEN PURP 800V 2A DO15 |
9,720 | - |
|
Datasheet | - | DO-204AC, DO-15, Axial | Tape & Box (TB) | Active | Standard | 800 V | 2A | 1.3 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 5 µA @ 800 V | - | - | - | Through Hole | DO-15 | -55°C ~ 150°C |
|
|
FR205GB-GDIODE GEN PURP 600V 2A DO15 |
5,803 | - |
|
Datasheet | - | DO-204AC, DO-15, Axial | Tape & Box (TB) | Active | Standard | 600 V | 2A | 1.3 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | 5 µA @ 600 V | - | - | - | Through Hole | DO-15 | -55°C ~ 150°C |
|
|
FR207GB-GDIODE GEN PURP 1KV 2A DO15 |
5,855 | - |
|
Datasheet | - | DO-204AC, DO-15, Axial | Tape & Box (TB) | Active | Standard | 1000 V | 2A | 1.3 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 5 µA @ 1000 V | - | - | - | Through Hole | DO-15 | -55°C ~ 150°C |
|
CDBV120-HFDIODE SCHOTTKY 20V 1A SOD323 |
3,123 | - |
|
Datasheet | - | SC-76, SOD-323 | Tape & Reel (TR) | Obsolete | Schottky | 20 V | 1A | 450 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | 120pF @ 4V, 1MHz | - | - | Surface Mount | SOD-323 | -40°C ~ 125°C |
|
|
CDBV130-HFDIODE SCHOTTKY 30V 1A SOD323 |
9,549 | - |
|
Datasheet | - | SC-76, SOD-323 | Tape & Reel (TR) | Obsolete | Schottky | 30 V | 1A | 550 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 200 V | 120pF @ 4V, 1MHz | - | - | Surface Mount | SOD-323 | -40°C ~ 125°C |
|

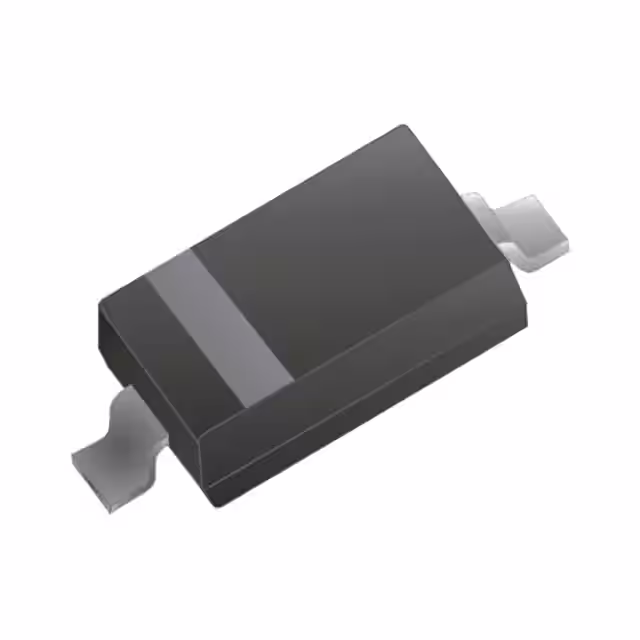

CDBV140-HFDIODE SCHOTTKY 40V 1A SOD323 |
4,376 | - |
|
Datasheet | - | SC-76, SOD-323 | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 600 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 40 V | 120pF @ 4V, 1MHz | - | - | Surface Mount | SOD-323 | -40°C ~ 125°C |
|
CDBK0540DIODE SCHOTTKY 40V 500MA SOD123F |
5,852 | - |
|
Datasheet | - | SOD-123F | Tape & Reel (TR) | Obsolete | Schottky | 40 V | 500mA | 510 mV @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | 22 ns | 20 µA @ 40 V | 170pF @ 0V, 1MHz | - | - | Surface Mount | SOD-123F | 125°C (Max) |
|
|
RS2KWF-HFDIODE GEN PURP 800V 2A SOD123F |
6,331 | - |
|
Datasheet | - | SOD-123F | Tape & Reel (TR) | Active | Standard | 800 V | 2A | 1.3 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 5 µA @ 800 V | 30pF @ 4V, 1MHz | - | - | Surface Mount | SOD-123F | -55°C ~ 150°C |
|
|
RS2AWF-HFDIODE GEN PURP 50V 2A SOD123F |
6,700 | - |
|
Datasheet | - | SOD-123F | Tape & Reel (TR) | Active | Standard | 50 V | 2A | 1.3 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 5 µA @ 50 V | 30pF @ 4V, 1MHz | - | - | Surface Mount | SOD-123F | -55°C ~ 150°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
