Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD101BWS-7-FDIODE SCHOTTKY 50V 15MA SOD323 |
3,270 | - |
|
Datasheet | - | SC-76, SOD-323 | Tape & Reel (TR) | Active | Schottky | 50 V | 15mA | 950 mV @ 15 mA | Small Signal =< 200mA (Io), Any Speed | 1 ns | 200 nA @ 40 V | 2.1pF @ 0V, 1MHz | - | - | Surface Mount | SOD-323 | -65°C ~ 125°C |
|
SDM20U30LPQ-7DIODE SCHOTTKY 30V 200MA 2DFN |
7,529 | - |
|
Datasheet | - | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Schottky | 30 V | 200mA | 575 mV @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 3 ns | 150 µA @ 30 V | 20pF @ 0V, 1MHz | Automotive | AEC-Q101 | Surface Mount | X1-DFN1006-2 | -65°C ~ 125°C |
|
|
PD3S140Q-7DIODE SCHOTT 40V 1A PWRDI323 3K |
3,531 | - |
|
Datasheet | - | PowerDI™ 323 | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 550 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 40 V | 32pF @ 10V, 1MHz | Automotive | AEC-Q101 | Surface Mount | PowerDI™ 323 | -55°C ~ 150°C |
|
US2JDFQ-13DIODE GEN PURP 600V 2A DFLAT |
2,659 | - |
|
Datasheet | - | 2-SMD, Flat Leads | Tape & Reel (TR) | Active | Standard | 600 V | 2A | 1.7 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 600 V | 10pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | D-Flat | -55°C ~ 150°C |
|
|
S1MSWFM-7DIODE GEN PURP 1KV 1A SOD123F |
1,400 | - |
|
Datasheet | - | SOD-123F | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | 1.2 µs | 10 µA @ 1000 V | 2.8pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | SOD-123F | -55°C ~ 150°C |
|

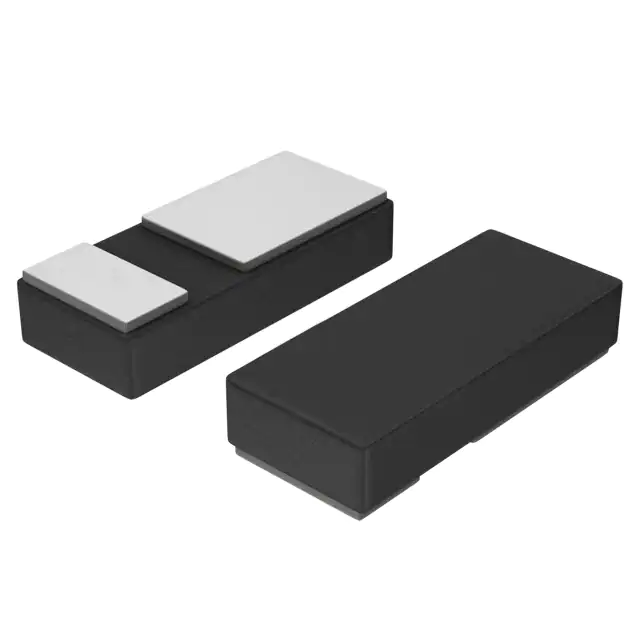

SDM1U40CSP-7DIODE SCHOT 40V 500MA X3WLB1406 |
3,000 | - |
|
Datasheet | - | 2-XDFN | Tape & Reel (TR) | Active | Schottky | 40 V | 500mA | 460 mV @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 75 µA @ 40 V | 35pF @ 4V, 1MHz | - | - | Surface Mount | X3-WLB1406-2 | -55°C ~ 150°C |
|
S2DA-13-FDIODE GEN PURP 200V 1.5A SMA |
10,942 | - |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | Standard | 200 V | 1.5A | 1.15 V @ 1.5 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 200 V | 20pF @ 4V, 1MHz | - | - | Surface Mount | SMA | -65°C ~ 150°C |
|
B350AF-13DIODE SCHOTTKY 50V 3A SMAF |
9,937 | - |
|
Datasheet | - | DO-221AC, SMA Flat Leads | Tape & Reel (TR) | Active | Schottky | 50 V | 3A | 650 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 50 V | 110pF @ 4V, 1MHz | - | - | Surface Mount | SMAF | -55°C ~ 150°C |
|
|
RS1JB-13-FDIODE GEN PURP 600V 1A SMB |
7,787 | - |
|
Datasheet | - | DO-214AA, SMB | Tape & Reel (TR) | Active | Standard | 600 V | 1A | 1.3 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | 5 µA @ 600 V | 15pF @ 4V, 1MHz | - | - | Surface Mount | SMB | -65°C ~ 150°C |
|
SBR3M30P1-7DIODE SBR 30V 3A POWERDI123 |
16,736 | - |
|
Datasheet | SBR® | POWERDI®123 | Tape & Reel (TR) | Active | Super Barrier | 30 V | 3A | 500 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 30 V | - | - | - | Surface Mount | PowerDI™ 123 | -65°C ~ 175°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
