Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ES3D-AQDIODE GEN PURP 200V 3A SMC |
7,021 | - |
|
Datasheet | - | DO-214AB, SMC | Bulk | Active | Standard | 200 V | 3A | 900 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 5 µA @ 200 V | - | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) | -50°C ~ 150°C |
|
PPH10100-AQDIODE SCHOTTKY 100V 10A TO277A |
2,418 | - |
|
Datasheet | - | TO-277, 3-PowerDFN | Bulk | Active | Schottky | 100 V | 10A | 680 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 100 V | - | Automotive | AEC-Q101 | Surface Mount | TO-277A | -50°C ~ 175°C |
|
S5XDIODE GEN PURP 1800V 8A SMC |
9,371 | - |
|
Datasheet | - | DO-214AB, SMC | Bulk | Active | Standard | 1800 V | 8A | 1.1 V @ 5 A | Standard Recovery >500ns, > 200mA (Io) | 1.5 µs | 10 µA @ 1800 V | - | - | - | Surface Mount | DO-214AB (SMC) | -50°C ~ 150°C |
|
FE6GDIODE GEN PURP 400V 6A P600 |
8,430 | - |
|
Datasheet | - | P600, Axial | Bulk | Active | Standard | 400 V | 6A | 1.3 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 5 µA @ 400 V | - | - | - | Through Hole | P-600 | -50°C ~ 175°C |
|
PPH810DIODE SCHOTTKY 100V 8A TO277B |
4,238 | - |
|
Datasheet | - | TO-277, 3-PowerDFN | Bulk | Active | Schottky | 100 V | 8A | 730 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | - | - | - | Surface Mount | TO-277B | -50°C ~ 175°C |
|
|
FE6FDIODE GEN PURP 300V 6A P600 |
8,155 | - |
|
Datasheet | - | P600, Axial | Bulk | Active | Standard | 300 V | 6A | 1 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 5 µA @ 300 V | - | - | - | Through Hole | P-600 | -50°C ~ 175°C |
|
PT800KDIODE GEN PURP 800V 8A TO220AC |
5,334 | - |
|
Datasheet | - | TO-220-2 | Bulk | Active | Standard | 800 V | 8A | 1.1 V @ 8 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 800 V | - | - | - | Through Hole | TO-220AC | -50°C ~ 150°C |
|
|
PT800JDIODE GEN PURP 600V 8A TO220AC |
2,218 | - |
|
Datasheet | - | TO-220-2 | Bulk | Active | Standard | 600 V | 8A | 1.1 V @ 8 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 600 V | - | - | - | Through Hole | TO-220AC | -50°C ~ 150°C |
|

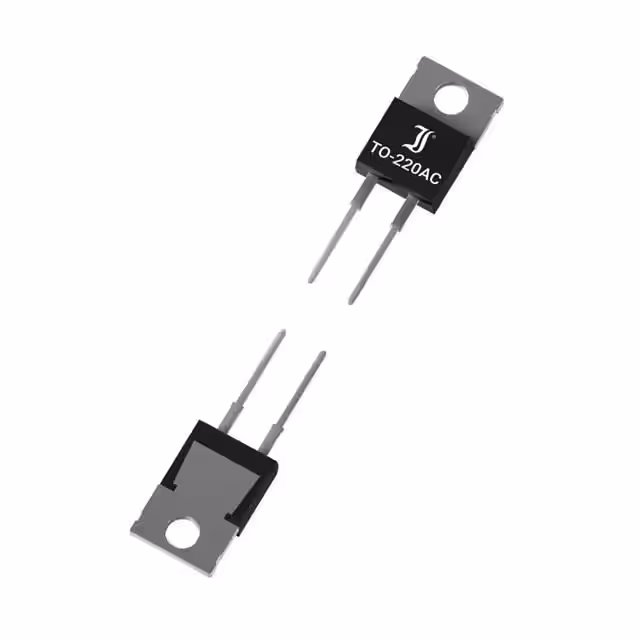

PT800MDIODE GEN PURP 1000V 8A TO220AC |
9,088 | - |
|
Datasheet | - | TO-220-2 | Bulk | Active | Standard | 1000 V | 8A | 1.1 V @ 8 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1000 V | - | - | - | Through Hole | TO-220AC | -50°C ~ 150°C |
|
|
PT800ADIODE GEN PURP 50V 8A TO220AC |
4,788 | - |
|
Datasheet | - | TO-220-2 | Bulk | Active | Standard | 50 V | 8A | 1.1 V @ 8 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 50 V | - | - | - | Through Hole | TO-220AC | -50°C ~ 150°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
