Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SUF4007-CTDIODE GEN PURP 1KV 1A DO213AB |
8,467 | - |
|
Datasheet | - | DO-213AB, MELF | Strip | Active | Standard | 1000 V | 1A | 1.7 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 5 µA @ 1 V | - | - | - | Surface Mount | DO-213AB | -50°C ~ 175°C |
|
|
SUF4006-CTDIODE GEN PURP 800V 1A DO213AB |
6,311 | - |
|
Datasheet | - | DO-213AB, MELF | Strip | Active | Standard | 800 V | 1A | 1.7 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 5 µA @ 800 V | - | - | - | Surface Mount | DO-213AB | -50°C ~ 175°C |
|
DD600DIODE GEN PURP 6KV 20MA |
8,256 | - |
|
Datasheet | - | Axial | Tape & Reel (TR) | Active | Standard | 6000 V | 20mA | 40 V @ 10 mA | Small Signal =< 200mA (Io), Any Speed | 150 ns | 5 µA @ 6000 V | - | - | - | Through Hole | Axial | -50°C ~ 150°C |
|

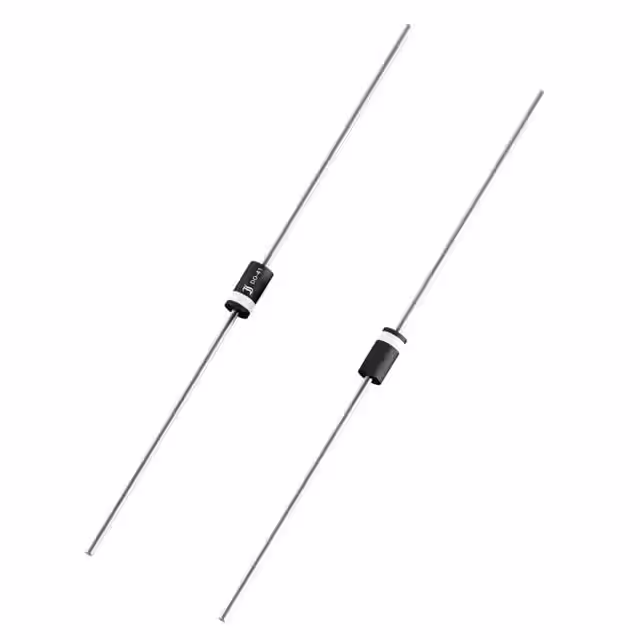

HV4DIODE GEN PURP 4KV 200MA DO41 |
7,578 | - |
|
Datasheet | - | DO-204AC, DO-41, Axial | Tape & Reel (TR) | Active | Standard | 4000 V | 200mA | 6 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 400 ns | 3 µA @ 4 V | - | - | - | Through Hole | DO-204AC (DO-41) | -50°C ~ 150°C |
|
SB390DIODE SCHOTTKY 90V 3A DO201 |
9,946 | - |
|
Datasheet | - | DO-201AA, DO-27, Axial | Tape & Reel (TR) | Active | Schottky | 90 V | 3A | 780 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 600 µA @ 90 V | - | - | - | Through Hole | DO-201 | -50°C ~ 150°C |
|
ER2MDIODE GEN PURP 1KV 2A SMB |
9,164 | - |
|
Datasheet | - | DO-214AA, SMB | Tape & Reel (TR) | Active | Standard | 1000 V | 2A | 1.7 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 5 µA @ 1 V | - | - | - | Surface Mount | DO-214AA (SMB) | -50°C ~ 150°C |
|
EGL34GDIODE GP 400V 500MA DO213AA |
3,857 | - |
|
Datasheet | - | DO-213AA | Tape & Reel (TR) | Active | Standard | 400 V | 500mA | 1.35 V @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 5 µA @ 400 V | - | - | - | Surface Mount | DO-213AA (MINIMELF) | -50°C ~ 175°C |
|
SK115DIODE SCHOTTKY 150V 1A DO214AC |
5,795 | - |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | Schottky | 150 V | 1A | 850 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 µA @ 150 V | - | - | - | Surface Mount | DO-214AC (SMA) | -50°C ~ 150°C |
|

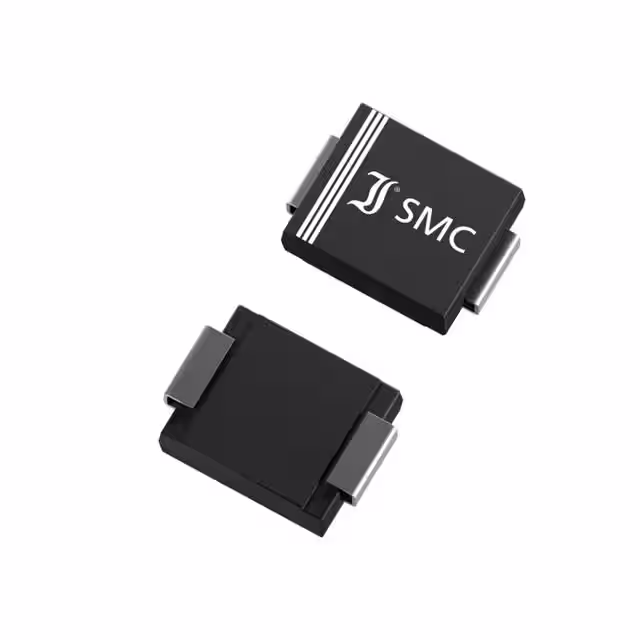

S8MDIODE SMC 1000V 8A 150C |
7,403 | - |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Active | Standard | 1000 V | 8A | 980 mV @ 8 A | Standard Recovery >500ns, > 200mA (Io) | 1.5 µs | 10 µA @ 1 V | - | - | - | Surface Mount | DO-214AB (SMC) | -50°C ~ 150°C |
|
SK56SMC-3GSCHOTTKY SMC 60V 5A 150C |
9,632 | - |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Active | Schottky | 60 V | 5A | 550 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 60 V | - | - | - | Surface Mount | DO-214AB (SMC) | -50°C ~ 150°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
