Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SB3100DIODE SCHOTTKY 100V 3A DO201 |
1,260 | - |
|
Datasheet | - | DO-201AA, DO-27, Axial | Cut Tape (CT) | Active | Schottky | 100 V | 3A | 780 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 600 µA @ 100 V | - | - | - | Through Hole | DO-201 | -50°C ~ 150°C |
|
SB530DIODE SCHOTTKY 30V 5A DO201 |
1,114 | - |
|
Datasheet | - | DO-201AA, DO-27, Axial | Cut Tape (CT) | Active | Schottky | 30 V | 5A | 550 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 30 V | - | - | - | Through Hole | DO-201 | -50°C ~ 150°C |
|
BY500-1000DIODE GEN PURP 1000V 5A AXIAL |
1,107 | - |
|
Datasheet | - | Axial | Cut Tape (CT) | Active | Standard | 1000 V | 5A | 1.3 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 5 µA @ 1000 V | - | - | - | Through Hole | Axial | -50°C ~ 175°C |
|
FE3ADIODE GEN PURP 50V 3A DO201 |
1,700 | - |
|
Datasheet | - | DO-201AA, DO-27, Axial | Cut Tape (CT) | Active | Standard | 50 V | 3A | 980 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 5 µA @ 50 V | - | - | - | Through Hole | DO-201 | -50°C ~ 175°C |
|

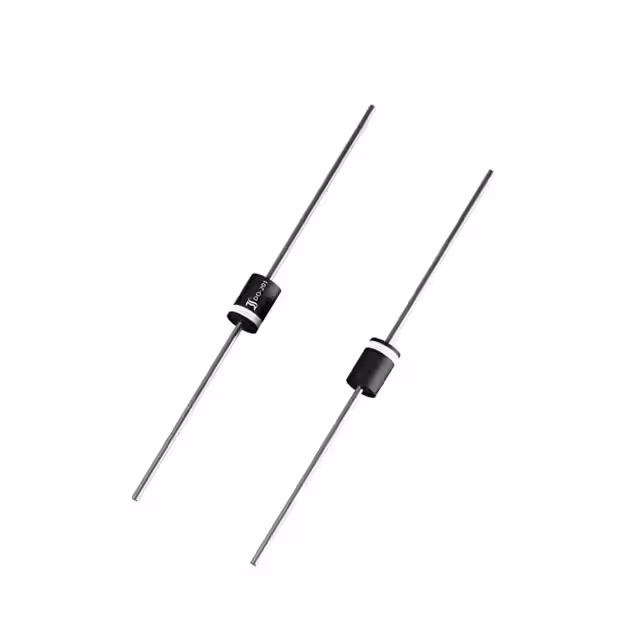

SB560-3GDIODE SCHOTTKY 60V 5A DO201 |
1,660 | - |
|
Datasheet | - | DO-201AA, DO-27, Axial | Bulk | Active | Schottky | 60 V | 5A | 670 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 60 V | - | - | - | Through Hole | DO-201 | -50°C ~ 150°C |
|
|
SB5200DIODE SCHOTTKY 200V 5A DO201 |
1,438 | - |
|
Datasheet | - | DO-201AA, DO-27, Axial | Cut Tape (CT) | Active | Schottky | 200 V | 5A | 900 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 200 V | - | - | - | Through Hole | DO-201 | -50°C ~ 150°C |
|
ES3DDIODE GEN PURP 200V 3A SMC |
2,372 | - |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Active | Standard | 200 V | 3A | 900 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 20 ns | 5 µA @ 200 V | - | - | - | Surface Mount | DO-214AB (SMC) | -50°C ~ 150°C |
|
2CL71DIODE GP 8000V 0.005A AXIAL |
1,687 | - |
|
Datasheet | - | Axial | Tape & Reel (TR) | Active | Standard | 8000 V | 5mA | 36 V @ 10 mA | Small Signal =< 200mA (Io), Any Speed | 80 ns | 2 µA @ 8000 V | - | - | - | Through Hole | Axial | -40°C ~ 120°C |
|
BY880-200DIODE GEN PURP 200V 8A AXIAL |
1,136 | - |
|
Datasheet | - | Axial | Cut Tape (CT) | Active | Standard | 200 V | 8A | 1.1 V @ 8 A | Standard Recovery >500ns, > 200mA (Io) | 1.5 µs | 5 µA @ 200 V | - | - | - | Through Hole | Axial | -50°C ~ 175°C |
|
SM3000DIODE GEN PURP 3000V 1A MELF |
4,283 | - |
|
Datasheet | - | DO-213AB, MELF | Tape & Reel (TR) | Active | Standard | 3000 V | 1A | 2.5 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | 1.5 µs | 5 µA @ 3000 V | - | - | - | Surface Mount | DO-213AB (MELF) | -50°C ~ 150°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
