Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P1000MDIODE GEN PURP 1000V 10A P600 |
1,059 | - |
|
Datasheet | - | P600, Axial | Cut Tape (CT) | Active | Standard | 1000 V | 10A | 1.05 V @ 10 A | Standard Recovery >500ns, > 200mA (Io) | 1.5 µs | 10 µA @ 1000 V | - | - | - | Through Hole | P600 | -50°C ~ 175°C |
|
MUR860DIODE GEN PURP 600V 8A TO220AC |
780 | - |
|
Datasheet | - | TO-220-2 | Tube | Active | Standard | 600 V | 8A | 1.5 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 5 µA @ 600 V | - | - | - | Through Hole | TO-220AC | 175°C (Max) |
|
FX2000GDIODE GEN PURP 400V 20A P600 |
500 | - |
|
Datasheet | - | P600, Axial | Cut Tape (CT) | Active | Standard | 400 V | 20A | 940 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 5 µA @ 400 V | - | - | - | Through Hole | P600 | -50°C ~ 150°C |
|
1N4148WS-AQDIODE GEN PURP 75V 0.15A SOD323 |
682 | - |
|
Datasheet | - | SC-90, SOD-323F | Tape & Reel (TR) | Active | Standard | 75 V | 150mA | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 1 µA @ 75 V | 2pF @ 0V, 1MHz | - | - | Surface Mount | SOD-323 | -55°C ~ 150°C |
|
1N4148WS-QDIODE GEN PURP 75V 0.15A SOD323F |
675 | - |
|
Datasheet | - | SC-90, SOD-323F | Tape & Reel (TR) | Active | Standard | 75 V | 150mA | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 1 µA @ 75 V | 2pF @ 0V, 1MHz | Automotive | AEC-Q101 | Surface Mount | SOD-323F | -55°C ~ 150°C |
|
S1DDIODE GEN PURP 200V 1A SMA |
345 | - |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | Standard | 200 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | 1.5 µs | 1 µA @ 200 V | - | - | - | Surface Mount | DO-214AC (SMA) | -50°C ~ 150°C |
|
GL34JDIODE GEN PURP 600V 0.5A DO213AA |
170 | - |
|
Datasheet | - | DO-213AA | Tape & Reel (TR) | Active | Standard | 600 V | 500mA | 1.3 V @ 500 mA | Standard Recovery >500ns, > 200mA (Io) | 1.5 µs | 5 µA @ 600 V | - | - | - | Surface Mount | DO-213AA (MINIMELF) | -50°C ~ 175°C |
|
BY251DIODE GEN PURP 200V 3A DO201 |
751 | - |
|
Datasheet | - | DO-201AA, DO-27, Axial | Cut Tape (CT) | Active | Standard | 200 V | 3A | 1.1 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 1.5 µs | 5 µA @ 200 V | - | - | - | Through Hole | DO-201 | -50°C ~ 150°C |
|

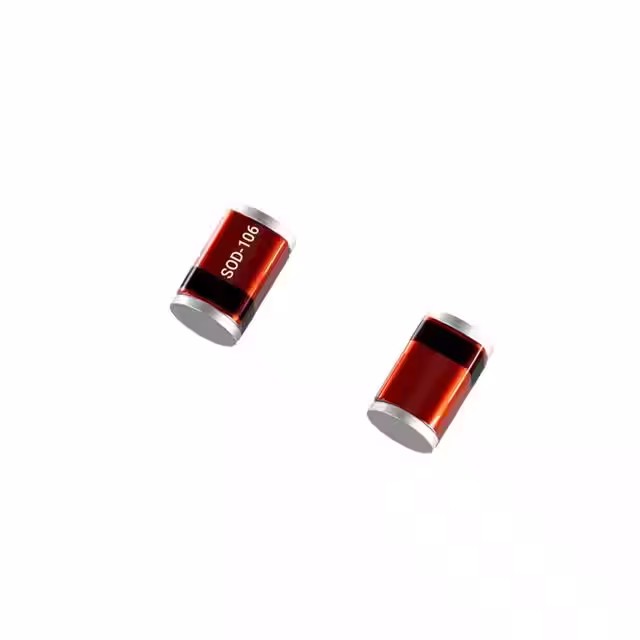

MCL103BDIODE SCHOTT 30V 0.35A MICROMELF |
500 | - |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | Schottky | 30 V | 350mA | 600 mV @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 10 ns | 5 µA @ 20 V | 50pF @ 0V, 1MHz | - | - | Surface Mount | MicroMelf | -55°C ~ 125°C |
|
SGL1-60DIODE SCHOTTKY 60V 1A DO213AA |
400 | - |
|
Datasheet | - | DO-213AA | Tape & Reel (TR) | Active | Schottky | 60 V | 1A | 670 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 60 V | - | - | - | Surface Mount | DO-213AA (MINIMELF) | -50°C ~ 150°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
