Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SGL34-30DIODE SCHOTTKY 30V 0.5A DO213AA |
3,449 | - |
|
Datasheet | - | DO-213AA | Bulk | Active | Schottky | 30 V | 500mA | 500 mV @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 30 V | - | - | - | Surface Mount | DO-213AA (MINIMELF) | -50°C ~ 150°C |
|
S2M-AQDIODE GEN PURP 1000V 2A DO214AA |
8,526 | - |
|
Datasheet | - | DO-214AA, SMB | Bulk | Active | Standard | 1000 V | 2A | 1.15 V @ 2 A | Standard Recovery >500ns, > 200mA (Io) | 1.5 µs | 5 µA @ 1000 V | - | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) | -50°C ~ 150°C |
|
EGL1KDIODE GEN PURP 800V 1A DO213AA |
9,165 | - |
|
Datasheet | - | DO-213AA | Bulk | Active | Standard | 800 V | 1A | 1.8 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 5 µA @ 800 V | - | - | - | Surface Mount | DO-213AA (MINIMELF) | -50°C ~ 175°C |
|
S2G-AQDIODE GEN PURP 400V 2A DO214AA |
2,245 | - |
|
Datasheet | - | DO-214AA, SMB | Bulk | Active | Standard | 400 V | 2A | 1.15 V @ 2 A | Standard Recovery >500ns, > 200mA (Io) | 1.5 µs | 5 µA @ 400 V | - | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) | -50°C ~ 150°C |
|

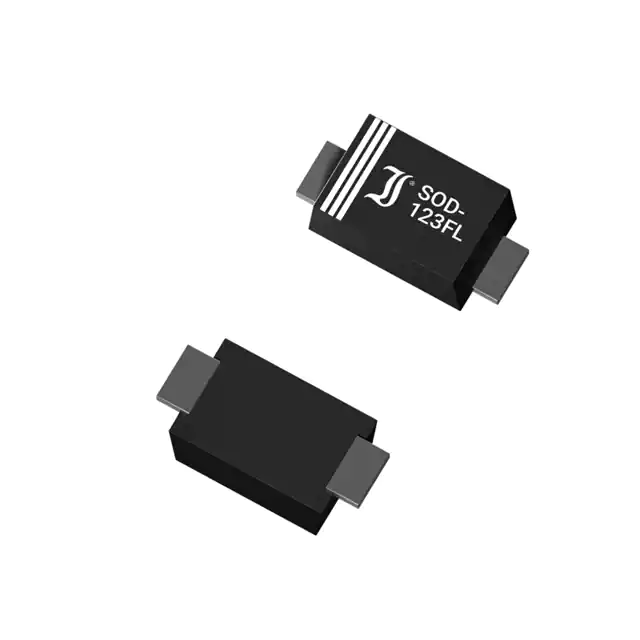

SLL13DIODE SCHOTTKY 30V 1A SOD123FL |
5,730 | - |
|
Datasheet | - | SOD-123F | Bulk | Active | Schottky | 30 V | 1A | 420 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 30 V | - | - | - | Surface Mount | SOD-123FL | -50°C ~ 150°C |
|
|
S2J-AQDIODE GEN PURP 600V 2A DO214AA |
3,918 | - |
|
Datasheet | - | DO-214AA, SMB | Bulk | Active | Standard | 600 V | 2A | 1.15 V @ 2 A | Standard Recovery >500ns, > 200mA (Io) | 1.5 µs | 5 µA @ 600 V | - | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) | -50°C ~ 150°C |
|
S2B-AQDIODE GEN PURP 100V 2A DO214AA |
8,399 | - |
|
Datasheet | - | DO-214AA, SMB | Bulk | Active | Standard | 100 V | 2A | 1.15 V @ 2 A | Standard Recovery >500ns, > 200mA (Io) | 1.5 µs | 5 µA @ 100 V | - | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) | -50°C ~ 150°C |
|
EAL1ADIODE AVALANCHE 50V 1A DO213AA |
2,657 | - |
|
Datasheet | - | DO-213AA | Bulk | Active | Avalanche | 50 V | 1A | 1.25 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 3 µA @ 50 V | - | - | - | Surface Mount | DO-213AA (MINIMELF) | -50°C ~ 175°C |
|
AL1JDIODE AVALANCHE 600V 1A DO213AA |
2,235 | - |
|
Datasheet | - | DO-213AA | Bulk | Active | Avalanche | 600 V | 1A | 1.3 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | 1.5 µs | 3 µA @ 600 V | - | - | - | Surface Mount | DO-213AA (MINIMELF) | -50°C ~ 175°C |
|
|
SGL1-50DIODE SCHOTTKY 50V 1A DO213AA |
4,141 | - |
|
Datasheet | - | DO-213AA | Bulk | Active | Schottky | 50 V | 1A | 670 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 50 V | - | - | - | Surface Mount | DO-213AA (MINIMELF) | -50°C ~ 150°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
