Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FM140-MH-HDIODE SCHOTTKY 40V 1A SOD123H |
300,000 | - |
|
Datasheet | - | SOD-123 | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 500 mV @ 1 A | Fast Recovery =< 500ns, > 1A (Io) | - | 500 mA @ 40 V | 270pF @ 4V, 1MHz | - | - | Surface Mount | SOD-123H | -55°C ~ 125°C |
|
1SS355-HDIODE GEN PURP 80V 100MA SOD323F |
2,990 | - |
|
Datasheet | - | SC-76, SOD-323 | Tape & Reel (TR) | Active | Standard | 80 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 80 V | 3pF @ 500mV, 1MHz | - | - | Surface Mount | SOD-323F | -55°C ~ 150°C |
|
FM4007-N-HDIODE GEN PURP 1KV 1A SOD323 |
2,050 | - |
|
Datasheet | - | SC-90, SOD-323F | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1000 V | 3.5pF @ 4V, 1MHz | - | - | Surface Mount | SOD-323 | -55°C ~ 150°C |
|
FM140-NS-HDIODE SCHOTTKY 40V 1A SOD323S |
2,530 | - |
|
Datasheet | - | SC-90, SOD-323F | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 550 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | 38pF @ 4V, 1MHz | - | - | Surface Mount | SOD-323S | -55°C ~ 125°C |
|
|
FM140-N-HDIODE SCHOTTKY 40V 1A SOD323 |
2,800 | - |
|
Datasheet | - | SC-90, SOD-323F | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 550 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | 38pF @ 4V, 1MHz | - | - | Surface Mount | SOD-323 | -55°C ~ 125°C |
|
FM340-MST-HDIODE SCHOTTKY 40V 3A SOD123ST |
1,850 | - |
|
Datasheet | - | SOD-123F | Tape & Reel (TR) | Active | Schottky | 40 V | 3A | 550 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | 150pF @ 4V, 1MHz | - | - | Surface Mount | SOD-123ST | -55°C ~ 125°C |
|
FM540-AHST-HDIODE SCHOTTKY 40V 5A SMA-HST |
2,900 | - |
|
Datasheet | - | DO-221BC, SMA Flat Leads | Tape & Reel (TR) | Active | Schottky | 40 V | 5A | 550 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 40 V | 270pF @ 4V, 1MHz | - | - | Surface Mount | SMA-HST | -55°C ~ 125°C |
|
FM4007-MH-HGEN PURP DIODE, STD GPP, 1A 1000 |
300,000 | - |
|
Datasheet | - | SOD-123 | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.1 V @ 1 A | Standard Recovery > 500ns, > 1A (Io) | - | 5 µA @ 1000 V | - | - | - | Surface Mount | SOD-123 | -55°C ~ 150°C |
|

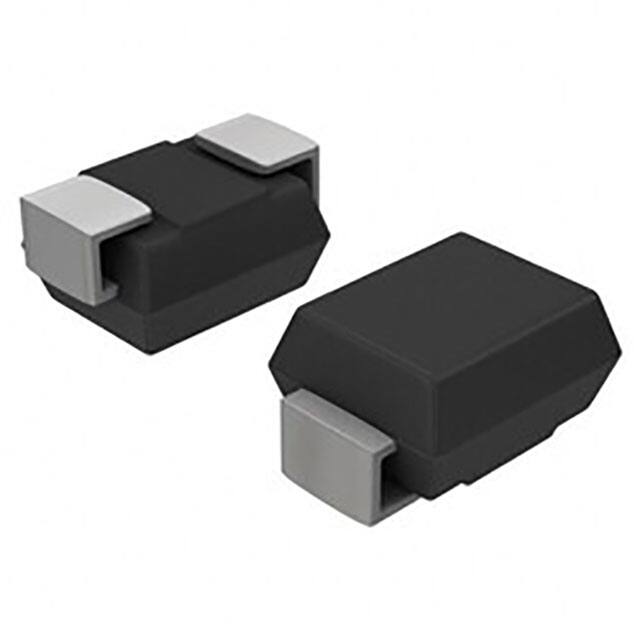

FM4007-M-HDIODE GEN PURP 1KV 1A SOD123 |
250,000 | - |
|
Datasheet | - | SOD-123 | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.1 V @ 1 A | Standard Recovery > 500ns, > 1A (Io) | - | 5 µA @ 1000 V | - | - | - | Surface Mount | SOD-123 | -55°C ~ 150°C |
|
FM4007-S-HDIODE GEN PURP 1KV 1A SMA-S |
250,000 | - |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.1 V @ 1 A | Standard Recovery > 500ns, > 1A (Io) | - | 5 µA @ 1000 V | - | - | - | Surface Mount | SMA-S | -55°C ~ 150°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
