RF Antennas

Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	RF Family/Standard	Frequency Group	Frequency (Center/Band)	Frequency Range	Antenna Type	Number of Bands	VSWR	Return Loss	Gain	Power - Max	Features	Termination	Ingress Protection	Grade	Qualification	Mounting Type	Height (Max)	Applications
1002289F0-AA10L0100 ANTENNA 100MM LTE/CELLULAR WIDE KYOCERA AVX	1,977	-	RFQ	Datasheet	Prestta™	Bulk	Active	Cellular	Wide Band	700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz	700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz	Flat Patch	8	2.5	-	-	2 W	Cable - 100mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.049" (1.25mm)	CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA
P522309 RF ANT 850MHZ/900MHZ FLAT PATCH KYOCERA AVX	1,546	-	RFQ	Datasheet	Prestta™	Bulk	Active	Cellular	Wide Band	850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz	824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz	Flat Patch	5	3	-	2.5dBi, 1.7dBi, 1.7dBi, 3.2dBi, 3.8dBi	2 W	Cable - 100mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.049" (1.25mm)	CDMA, DCS, GSM, PCS, UMTS, WCDMA
1000418 RF ANT 2.4GHZ/4.9GHZ STAMPED MET KYOCERA AVX	5,523	-	RFQ	Datasheet	Prestta™	Tray	Active	Bluetooth, Cellular, WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz	2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz	Stamped Metal	2	2.1	-	4dBi, 4.2dBi	-	-	U.FL	-	-	-	Screw Mount	0.201" (5.10mm)	802.11a/b/g/n/c, Bluetooth, Wi-Fi, WLAN, Zigbee™
1002857 RF ANT 1.575GHZ/1.602GHZ HELICAL KYOCERA AVX	225	-	RFQ	Datasheet	-	Tray	Active	Navigation	UHF (1GHz ~ 2GHz)	1.575GHz, 1.602GHz	1.57GHz ~ 1.58GHz	Helical	1	2	-	-3dB	2 W	-	SMA Male	IP68	-	-	Connector Mount	1.382" (35.10mm)	GLONASS, GPS
M310220 RF ANT 2.4GHZ CHIP SOLDER SMD KYOCERA AVX	2,843	-	RFQ	Datasheet	Savvi™	Tape & Reel (TR)	Active	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz)	2.4GHz	2.4GHz ~ 2.5GHz	Chip	1	1.02	-	-1.3dB	-	-	Solder	-	-	-	Surface Mount	0.043" (1.08mm)	Bluetooth, Wi-Fi, WLAN, Zigbee™
1002427 RF ANT 868MHZ/915MHZ STAMPED MET KYOCERA AVX	4,792	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	General ISM, Navigation	UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)	868MHz, 915MHz, 1.575GHz	868MHz, 915MHz, 1.561GHz ~ 1.602GHz	Stamped Metal	5	2	-	3dBi	2 W	-	Solder	-	-	-	Surface Mount	0.071" (1.80mm)	Beidou, GLONASS, GPS, ISM, LoRa, LPWAN, Sigfox
W3P35X8W04-H100D3B0A ANTENNA ASSY, WLAN 04 100 F KYOCERA AVX	557	-	RFQ	Datasheet	W	Box	Active	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.44GHz, 5.5GHz, 6.525GHz	2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz	PCB Trace	3	-	-15dB, -10dB, -6dB	2.3dBi, 5dBi, 2.5dBi	-	Cable - 100mm	I-PEX MHF4	-	-	-	Adhesive	0.016" (0.40mm)	Bluetooth, Wi-Fi, WLAN, Zigbee™
1000802 RF ANT 2.4GHZ PCB TRACE CAB ADH KYOCERA AVX	708	-	RFQ	Datasheet	Prestta™	Bulk	Active	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz)	2.4GHz	2.4GHz ~ 2.5GHz	PCB Trace	1	2.1	-	3.5dBi	-	Cable - 100mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.087" (2.20mm)	Bluetooth, Wi-Fi, WLAN, Zigbee™
W1F35X8W01-U100D3B0C ANTENNA ASSY, WLAN1 04 100 D0230 KYOCERA AVX	596	-	RFQ	Datasheet	W	Box	Active	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz)	2.44GHz	2.4GHz ~ 2.48GHz	PCB Trace	1	-	-15dB	2.8dBi	-	Cable - 100mm	U.FL	-	-	-	Adhesive	0.016" (0.40mm)	Bluetooth, Wi-Fi, WLAN, Zigbee™

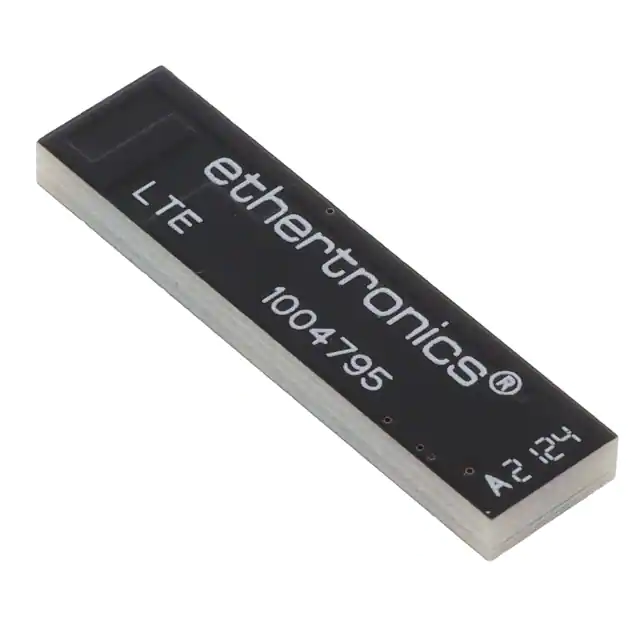

1004795 ANTENNA PCB, LTE J1381 KYOCERA AVX	5,403	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	802.15.4, Cellular	Wide Band	600MHz, 700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz	600MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.5GHz ~ 2.7GHz	Chip	9	2.5, 3	-	1.5dBi, 1.6dBi, 3.1dBi, 1.7dBi	2 W	-	Solder	-	-	-	Surface Mount	0.126" (3.20mm)	LTE, LoRa, LPWAN, Sigfox
