RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

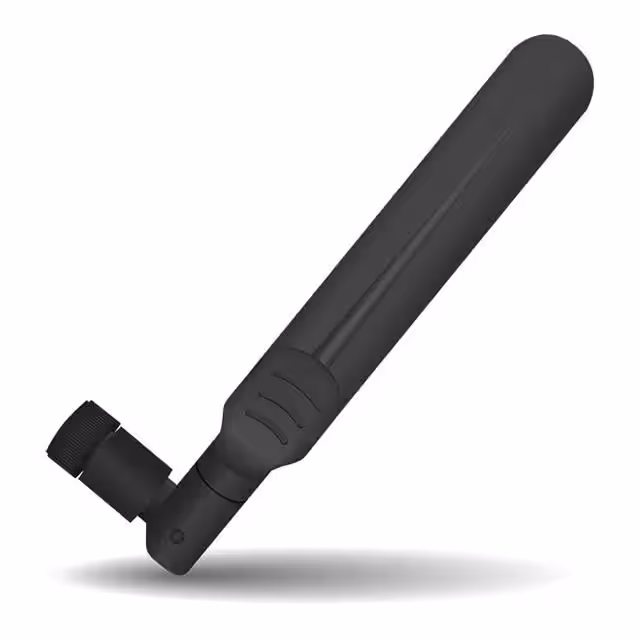

X9000294-W3DRMBANTENNA, BLADE WLAN RPSMA |
4,947 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | - | -12dB, -9dB | 3.2dBi, 4.5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 6.201" (157.50mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
X9001376-4GDRMWANTENNA, WHIP PENLT SMA STRAIGHT |
4,129 | - |
|
Datasheet | - | Box | Active | 802.15.4, Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 875MHz, 2.2GHz | 790MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Whip, Straight | 2 | - | -3dB, -7.33dB | 1.16dBi, 2.5dBi | - | - | RP-SMA | IP67 | - | - | Connector Mount | 7.087" (180.00mm) | LTE, LoRa, LPWAN, Sigfox |
|
1003657ANTENNA |
3,065 | - |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 725MHz, 766.5MHz, 1.7325GHz, 2.1325GHz | 704MHz ~ 746MHz, 746MHz ~ 787MHz, 1.71GHz ~ 1.755GHz, 2.11GHz ~ 2.155GHz | Module | 4 | 2.1, 2.5 | - | 1dBi, 1.6dBi, 3.2dBi, 3.4dBi | - | Cable - 218mm | MMCX | - | - | - | Surface Mount | 0.165" (4.20mm) | LoRa, LPWAN, LTE, Sigfox |
|
1004322ANTENNA CERAMIC, GPSGB 18X18 |
3,146 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.561GHz, 1.6015GHz | 1.559GHz ~ 1.61GHz | Ceramic Patch | 3 | 1.2, 1.3 | - | 3.12dBi, 4.06dBi, 3.89dBi, 3.92dBi | - | - | Pin | - | - | - | Adhesive | 0.185" (4.70mm) | Beidou, Galileo, GLONASS, GPS |
|

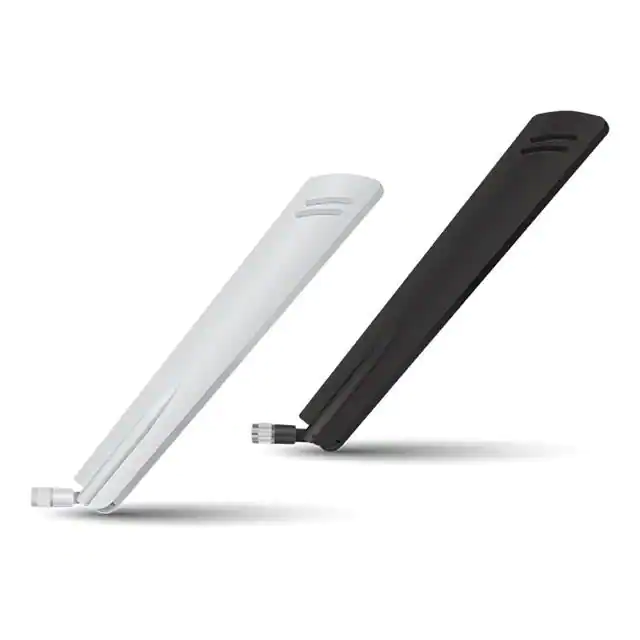

1004112-A001ANTENNA ASSY, EXTERNAL LTE SMA |
3,451 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Cellular | Wide Band | 825MHz, 1.955GHz, 2.6GHz | 690MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.5GHz ~ 2.7GHz | Whip, Tilt | 3 | 2.5 | - | 1.18dBi, 4.5dBi, 4dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 8.591" (218.20mm) | LTE, LoRa, LPWAN, Sigfox |
|
1004382ANTENNA ASSY, LDS |
2,619 | - |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1004239ANTENNA ASSY, LTE MIMO |
2,117 | - |
|
Datasheet | - | Box | Active | Cellular | Wide Band | 700MHz, 750MHz, 850MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz | 698MHz ~ 894MHz, 1.71GHz ~ 2.155GHz, 2.5GHz ~ 2.69GHz | - | 2 | 2.5 | - | 4dBi, 6.3dBi, 4.8dBi | - | Cable - 2m | SMA Male (2) | IP65 | - | - | Chassis Mount | 0.687" (17.45mm) | General Purpose |
|

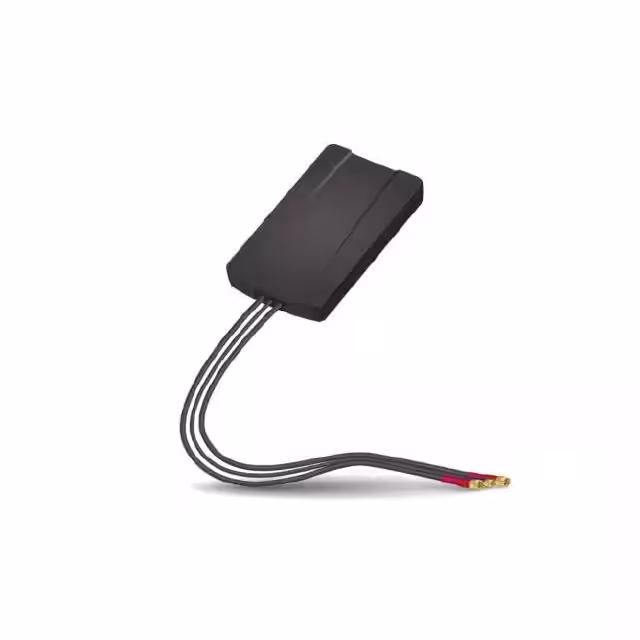

X1005245-LSA3SA10A2ANTENNA GNSS / LTE MIMO |
4,975 | - |
|
Datasheet | - | Box | Active | Cellular, Navigation | Wide Band | 829MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.495GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz | Module | 6 | 2, 3 | - | 4.5dBi, 1.1dBi, 2.1dBi, 2.3dBi, 4.2dBi, 3.7dBi | - | Cable - 1m, LNA | SMA Male (2) | IPX7 | - | - | Adhesive | 0.500" (12.70mm) | GLONASS, GPS, GNSS, LTE |
|
|
1004239-001ANTENNA ASSY, LTE MIMO |
3,418 | - |
|
Datasheet | - | Box | Active | Cellular | Wide Band | 796MHz, 1.93GHz, 2.595GHz | 698MHz ~ 894MHz, 1.71GHz ~ 2.155GHz, 2.5GHz ~ 2.69GHz | Module | 3 | 2.5 | - | 4dBi, 6.3dBi, 4.8dBi | - | Cable - 2m | SMA Male (2) | - | - | - | Screw Mount | 0.677" (17.20mm) | Cellular, LTE Cat 1, LTE-M, NB-IoT, loRa, SigFox |
|
|
KIT-LTE-GNSS-01ANTENNA KIT |
4,371 | - |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
