RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2065130001RF ANT 2.4GHZ CER PATCH SLDR SMD |
296 | - |
|
Datasheet | - | Tape & Reel (TR) | Not For New Designs | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | - | -6dB | 3.6dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | General Purpose |
|

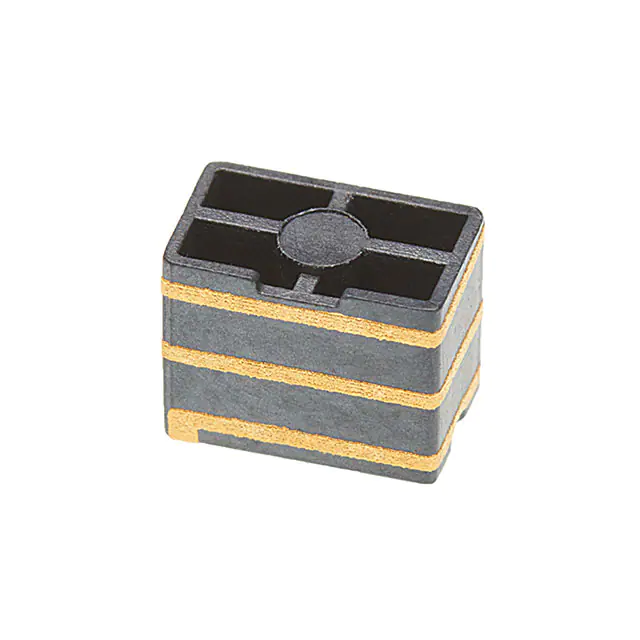

1462350001RF ANT 1.575GHZ MOLDED SLDR SMD |
8,380 | - |
|
Datasheet | Helix 146235 | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Molded | 1 | - | -10dB | 1.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|
2069940100RF ANT 2.4GHZ/5GHZ PCB TRACE ADH |
20,324 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | PCB Trace | 2 | - | -5dB, -10dB | 3.6dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | Bluetooth, WLAN, Zigbee™ |
|

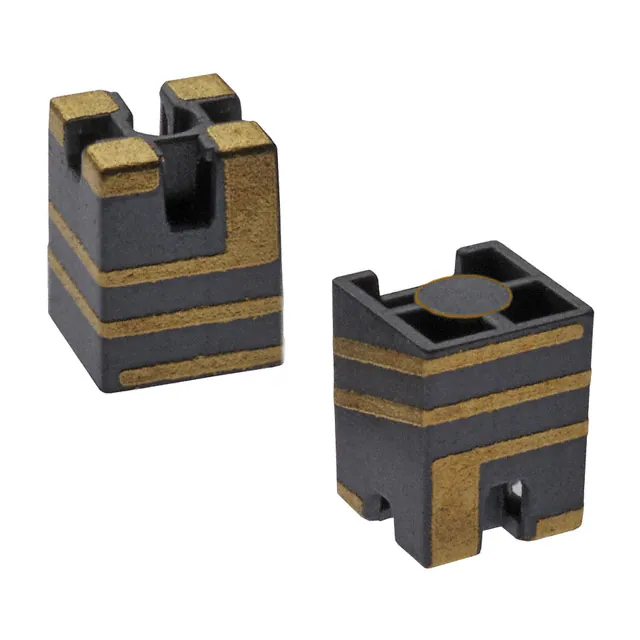

0479480001RF ANT 2.4GHZ CHIP SOLDER SMD |
16,272 | - |
|
Datasheet | 47948 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | Chip | 1 | - | -9dB | 3dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Bluetooth, WLAN, Zigbee™ |
|
1052620001RF ANT 866MHZ/915MHZ FLAT 100MM |
53,882 | - |
|
Datasheet | 105262 | Tray | Active | - | UHF (300MHz ~ 1GHz) | 866MHz, 915MHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz | Flat Patch | 2 | - | -11dB, -13dB | 0.4dBi, 1.4dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | - |
|
1461530300RF ANT 2.4/5GHZ FLAT PATCH 300MM |
10,626 | - |
|
Datasheet | 146153 | Bulk | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | - | -10dB | 2.2dBi, 3.3dBi | 2 W | Cable - 300mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | WLAN, Zigbee™ |
|
2042810100RF ANT 2.4GHZ/5.5GHZ PCB TRACE |
2,649 | - |
|
Datasheet | 204281 | Tray | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -10dB | 3.5dBi | - | Cable - 100mm | - | - | - | - | Adhesive | 0.098" (2.50mm) | Wi-Fi |
|
2042811100RF ANT 2.4/5GHZ PCB TRACE 100MM |
14,037 | - |
|
Datasheet | 204281 | Tray | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | PCB Trace | 2 | - | -10dB | - | 2 W | Cable - 100mm | I-PEX MHF4L | - | - | - | Adhesive | 0.004" (0.10mm) | Wi-Fi |
|
|
1461530050RF ANT 2.4/5GHZ FLAT PATCH 50MM |
7,470 | - |
|
Datasheet | 146153 | Bulk | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | - | -10dB | 3.2dBi, 4.75dBi | 2 W | Cable - 50mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | WLAN, Zigbee™ |
|
2072350100824 2170MHZ CELLULAR FLEXIBLE AN |
6,360 | - |
|
Datasheet | 207235 | Tray | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 2 | - | -4dB, -6dB | 0dBi, 4.3dBi | - | Cable - 100mm | MHF | - | - | - | Adhesive | 0.004" (0.10mm) | General Purpose |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
