RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEANRBD1026136-174 MHz Rubber Duck Antenna, |
4,825 | - |
|
Datasheet | - | Retail Package | Active | General ISM | VHF (f < 300MHz) | 155MHz | 136MHz ~ 174MHz | Whip, Straight | 1 | 1.5 | - | 1.8dBi | 50 W | - | SMA Female | - | - | - | Connector Mount | 4.300" (109.22mm) | General Purpose |
|

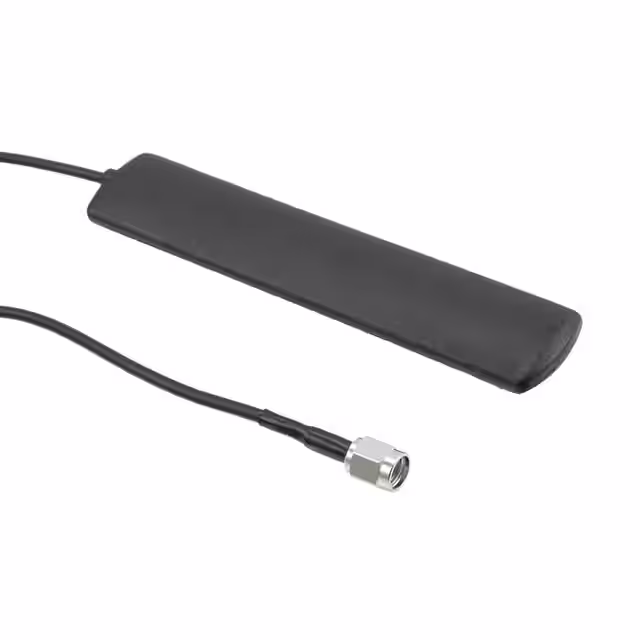

PE51GM10022DBI BLADE MOBILE 824-2500 MHZ |
3,211 | - |
|
Datasheet | - | Bag | Active | Cellular, General ISM | Wide Band | 892MHz, 1.995GHz, 2.45GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz | Flat Bar | 3 | 2 | - | 2dBi, 2dBi, 2dBi | 10 W | Cable - 3m | RP-SMA | - | - | - | - | 0.220" (5.59mm) | GSM, ISM, PCS, UMTS, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M |
|
|
PEANRBD1032136-174 MHz Telescopic Antenna, |
1,153 | - |
|
Datasheet | - | Retail Package | Active | General ISM | VHF (f < 300MHz) | 155MHz | 136MHz ~ 174MHz | Whip, Straight | 1 | 1.5 | - | 3.5dBi | 50 W | - | BNC Male | - | - | - | Connector Mount | 51.181" (1300.00mm) | General Purpose |
|
|
PEANRBD1033136-174 MHz Telescopic Antenna, |
2,030 | - |
|
Datasheet | - | Retail Package | Active | General ISM | VHF (f < 300MHz) | 155MHz | 136MHz ~ 174MHz | Whip, Straight | 1 | 1.5 | - | 2.5dBi | 50 W | - | BNC Male | - | - | - | Connector Mount | 23.800" (604.52mm) | General Purpose |
|

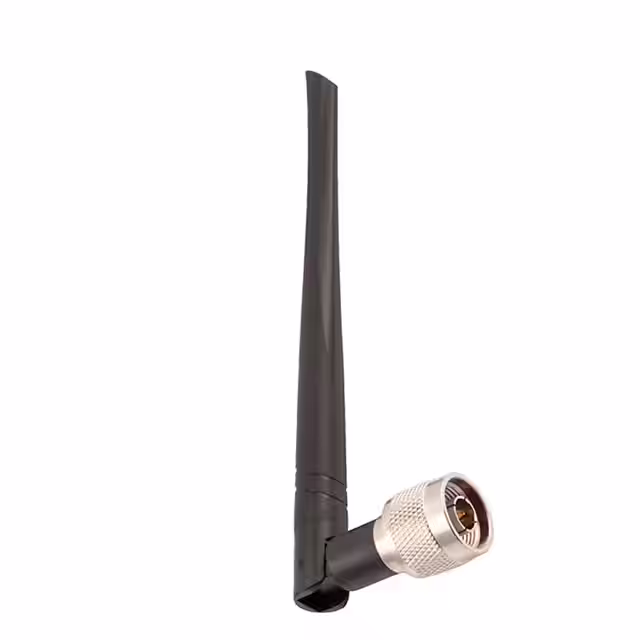

PE51RD10145DBI RBR DUCK 2400-2500MHZ N |
1,135 | - |
|
Datasheet | - | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Blade, Tilt/Swivel | 1 | 2 | - | 4.52dBi | - | - | N Type Male | - | - | - | Connector Mount | 8.190" (208.03mm) | Bluetooth, ISM, Wi-Fi, WLAN |
|

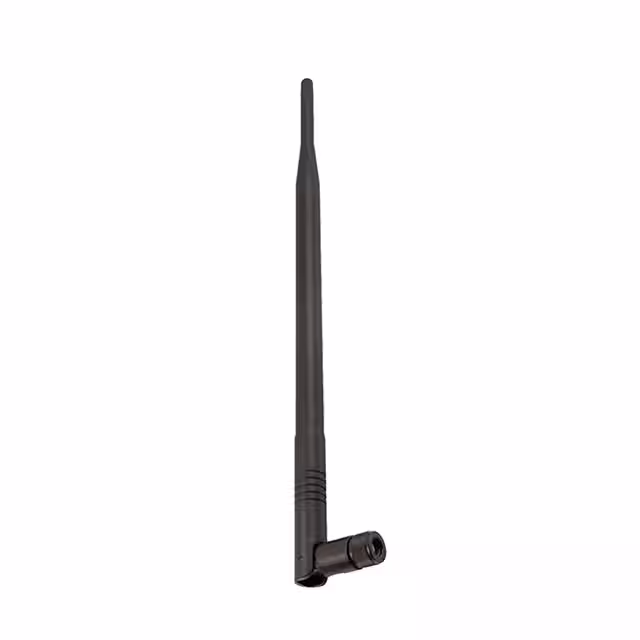

PE51RD10177DBI RBR DUCK 2400-2500MHZ RPSMA |
3,073 | - |
|
Datasheet | - | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Blade, Tilt/Swivel | 1 | 2 | - | 7dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 11.570" (293.88mm) | Bluetooth, ISM, Wi-Fi, WLAN |
|
PE51RD10165DBI RBR DUCK 2400-2500MHZ RPTNC |
1,587 | - |
|
Datasheet | - | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Blade, Tilt/Swivel | 1 | 2 | - | 4.52dBi | - | - | RP-TNC Male | - | - | - | Connector Mount | 8.190" (208.03mm) | Bluetooth, ISM, Wi-Fi, WLAN |
|

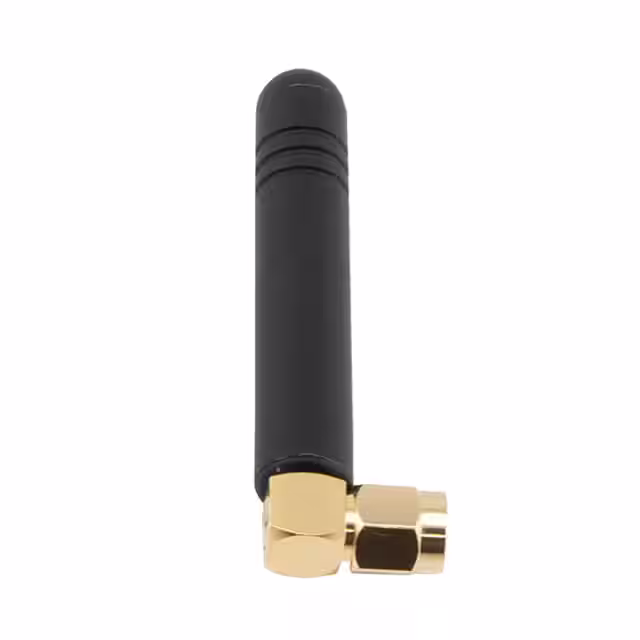

PE51RD10284DBI RBR DUCK 698-2700MHZ SMA |
4,316 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, Cellular, WiFi | Wide Band | 830MHz, 1.94GHz, 2.6GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Whip, Right Angle | 3 | 3, 2.5 | - | 0dBi, 4dBi, 2dBi | 2 W | - | SMA Male | IP67 | - | - | Connector Mount | 2.250" (57.15mm) | 4G, 5G, Bluetooth, loT, Wi-Fi, Zigbee™, Z-Wave |
|

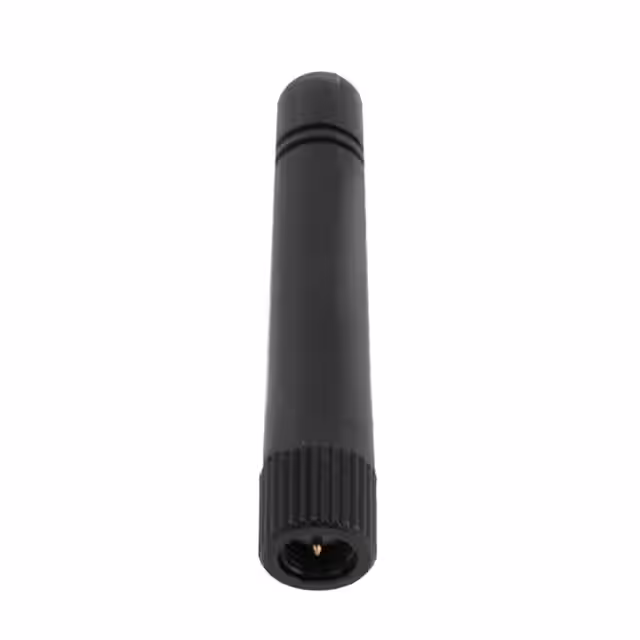

PE51RD10273DBI RBR DUCK 698-2700MHZ SMA |
1,500 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, Cellular, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.205GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Whip, Straight | 2 | 2, 4.5 | - | 1dBi, 3.5dBi | 5 W | - | SMA Male | IP67 | - | - | Connector Mount | 2.100" (53.34mm) | 4G, 5G, Bluetooth, loT, Wi-Fi, Zigbee™, Z-Wave |
|
|
PEANRBD102927 MHz Rubber Duck Antenna, 3.5 |
2,323 | - |
|
Datasheet | - | Retail Package | Active | General ISM | Wide Band | 27MHz | - | Whip, Straight | 1 | 1.5 | - | 3.5dBi | 50 W | - | BNC Male | - | - | - | - | 20.500" (520.70mm) | General Purpose |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
