RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE9863B-10-UWR-284 Standard Gain Horn Antenn |
3,634 | - |
|
Datasheet | - | Retail Package | Active | General ISM | Wide Band | 3.275GHz | 2.6GHz ~ 3.95GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 7.500" (190.50mm) | General Purpose |
|
|
PE9854B-15WR-62 Waveguide Standard Gain Ho |
2,931 | - |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.5 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 3.310" (84.07mm) | General Purpose |
|
|
PEWAN137-10SFWR137 GAIN HRN 5.85-8.2GHZ 10DBI |
3,230 | - |
|
Datasheet | - | Case | Active | WiFi | Wide Band | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | SMA Female | - | - | - | Waveguide Mount | 1.673" (42.50mm) | General Purpose |
|
|
PEWAN159-10NFWR159 GAIN HRN 4.9-7.05GHZ 10DBI |
3,242 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | Wide Band | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 1.940" (49.28mm) | General Purpose |
|
|
PEWAN028-10KFWR28 GAIN HRN 26.5-40GHZ 10DBI |
3,871 | - |
|
Datasheet | - | Bulk | Active | - | SHF (f > 4GHz) | 33.25GHz | 26.5GHz ~ 40GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | 2.92mm Female | - | - | - | Waveguide Flange Mount | 1.403" (35.64mm) | - |
|
|
PEWAN028-20KFWR28 GAIN HRN 26.5-40GHZ 15DBI |
3,065 | - |
|
Datasheet | - | Bulk | Active | - | SHF (f > 4GHz) | 33.25GHz | 26.5GHz ~ 40GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | 2.92mm Female | - | - | - | Waveguide Flange Mount | 3.556" (90.32mm) | - |
|

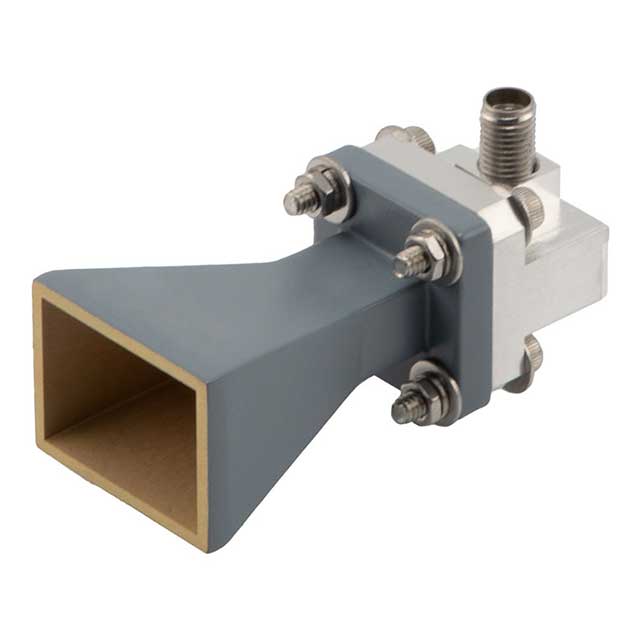

PEWAN034-15KFWR34 GAIN HORN 22-33GHZ 15DBI |
4,062 | - |
|
Datasheet | - | Case | Active | - | SHF (f > 4GHz) | 27.5GHz | 22GHz ~ 33GHz | Horn | 1 | 1.4 | - | 15dBi | - | - | 2.92mm Female | - | - | - | Waveguide Flange Mount | 2.635" (66.93mm) | - |
|
|
PE9851B-20WR-34 Waveguide Standard Gain Ho |
4,900 | - |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 27.5GHz | 22GHz ~ 33GHz | Horn | 1 | 1.5 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 1.492" (37.90mm) | General Purpose |
|
|
PE51068GPS Passive Dual Band Antenna Op |
1,674 | - |
|
Datasheet | - | Retail Package | Active | Navigation | UHF (2GHz ~ 3GHz) | 1.4GHz | 1.22GHz ~ 1.58GHz | Dome | 1 | - | - | 6dBi | - | - | N Type Female | - | - | - | Panel Mount | 5.470" (138.93mm) | GPS |
|
|
PEWAN051-15SFWR51 GAIN HRN 15-22GHZ 15DBI |
4,344 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | Wide Band | 18.5GHz | 15GHz ~ 22GHz | Horn | 1 | 1.25 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 0.994" (25.25mm) | General Purpose |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
