RF Antennas

Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	RF Family/Standard	Frequency Group	Frequency (Center/Band)	Frequency Range	Antenna Type	Number of Bands	VSWR	Return Loss	Gain	Power - Max	Features	Termination	Ingress Protection	Grade	Qualification	Mounting Type	Height (Max)	Applications
PEANGPS1007 GPS Active Antenna, 1597 MHz to Pasternack	2,660	-	RFQ	Datasheet	-	Retail Package	Active	Navigation	UHF (1GHz ~ 2GHz)	1.602GHz	1.597GHz ~ 1.607GHz	Module	1	2.5	-	10dBi	-	-	SMA Male	IP67	-	-	-	1.750" (44.45mm)	Galileo, GLONASS, GNSS, GPS
PE51YA1006 4.9-5.8 GHz 17 dBi Dual Polarity Pasternack	2,228	-	RFQ	Datasheet	-	Retail Package	Active	Cellular, WiFi	Wide Band	5.38GHz	4.9GHz ~ 5.85GHz	Yagi	1	1.5	-	17dBi	50 W	-	N Type Female	-	-	-	Bracket Mount	13.900" (353.06mm)	802.11a/n, Wi-Fi, WiMax, WLAN
PE51028 Fixed Antenna Operates From 902 Pasternack	3,972	-	RFQ	Datasheet	-	Retail Package	Active	-	Wide Band	915MHz	902MHz ~ 928MHz	Whip, Straight	1	2	-	5dBi	-	-	N Type Female	-	-	-	Connector Mount	0.967" (24.55mm)	-
PEANGPS1001 ANT 1.17-1.61GHz, 37.5 DBI, SMA Pasternack	4,752	-	RFQ	Datasheet	-	Bulk	Active	Navigation	UHF (1GHz ~ 2GHz)	1.222GHz, 1.565GHz	1.166GHz ~ 1.278GHz, 1.52GHz ~ 1.61GHz	Whip, Straight	3	2	-	39dBi, 40dBi	-	-	SMA Male	IP67	-	-	Connector Mount	3.250" (82.55mm)	Galileo, GLONASS, GNSS, GPS

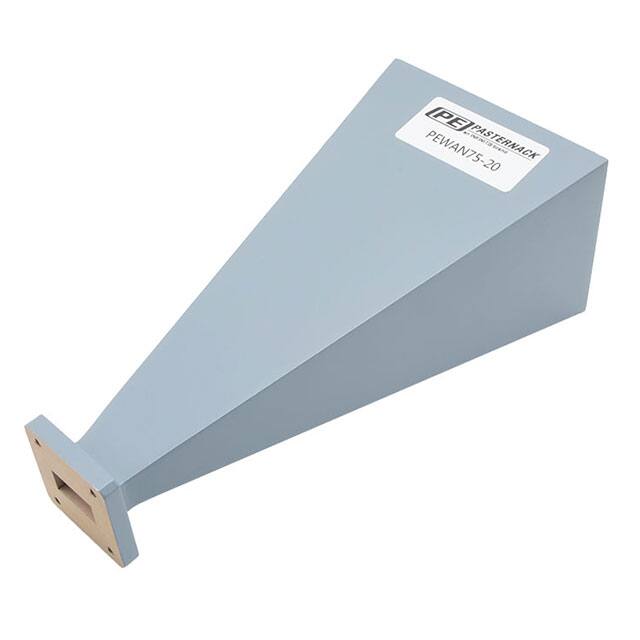

PEWAN075-20 WR75 GAIN HORN 10-15GHZ 20DBI Pasternack	3,246	-	RFQ	Datasheet	-	Bulk	Active	Waveguide	X-Ku Band (8GHz ~ 18GHz)	12.5GHz	10GHz ~ 15GHz	Horn	1	1.3	-	20dBi	-	-	-	-	-	-	Waveguide Flange Mount	-	-
PEWAN075-20ELNF WR75 GAIN HRN 10-15GHZ 20DBI Pasternack	2,242	-	RFQ	Datasheet	-	Tape & Box (TB)	Active	-	Wide Band	12.5GHz	10GHz ~ 15GHz	Horn	1	1.4	-	20dBi	-	Cable - 305mm, Cable - 3.048m, Cable - 7.62m	N Type Female	-	-	-	Waveguide Mount	2.721" (69.11mm)	General Purpose
PESMA1000 2400-2500 MHz, 2 dBi, Stamped Me Pasternack	2,000	-	RFQ	Datasheet	-	Retail Package	Active	802.15.4, Bluetooth, General ISM, WiFi	UHF (2GHz ~ 3GHz)	2.45GHz	2.4GHz ~ 2.5GHz	Stamped Metal	1	2	-	2dBi	1 W	Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m	Screw-Mount	-	-	-	Surface Mount	1.140" (28.96mm)	802.11a/b/g/n/ac, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™
PESMA1002 2400-2500 MHz, 2 dBi, Stamped Me Pasternack	2,000	-	RFQ	Datasheet	-	Retail Package	Active	802.15.4, Bluetooth, General ISM, WiFi	UHF (2GHz ~ 3GHz)	2.45GHz	2.4GHz ~ 2.5GHz	Stamped Metal	1	2	-	2dBi	1 W	Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m	Screw-Mount	-	-	-	Surface Mount	1.220" (31.00mm)	802.11a/b/g/n/ac, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™
PESMA1004 2400-2500 MHz, 2 dBi, Stamped Me Pasternack	2,000	-	RFQ	Datasheet	-	Retail Package	Active	802.15.4, Bluetooth, General ISM, WiFi	UHF (2GHz ~ 3GHz)	2.45GHz	2.4GHz ~ 2.5GHz	Stamped Metal	1	2	-	2dBi	1 W	Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m	Screw-Mount	-	-	-	Surface Mount	0.940" (23.88mm)	802.11a/b/g/n/ac, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™
PESMA1005 2400-2500/ 5150-5825 MHz, 2/3 dB Pasternack	2,000	-	RFQ	Datasheet	-	Retail Package	Active	802.15.4, Bluetooth, General ISM, WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.45GHz, 5.487GHz	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz	Stamped Metal	2	2	-	2dBi, 3dBi	1 W	Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m	Screw-Mount	-	-	-	Surface Mount	1.190" (30.23mm)	802.11a/b/g/n/ac, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™
