RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEWAN159-20SFWR159 GAIN HRN 4.9-7.05GHZ 20DBI |
4,890 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | Wide Band | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.3 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 5.769" (146.53mm) | General Purpose |
|
|
PEWAN102-20SFWR102 GAIN HRN 7-11GHZ 20DBI |
4,489 | - |
|
Datasheet | - | Tape & Box (TB) | Active | Waveguide | Wide Band | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.25 | - | 20dBi | - | - | SMA Female | - | - | - | Waveguide Mount | 3.701" (94.01mm) | - |
|
|
PEWAN075-20ELSFWR75 GAIN HRN 10-15GHZ 20DBI |
1,927 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | Wide Band | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.4 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 2.721" (69.11mm) | General Purpose |
|
|
PEWAN062-20SFWR62 GAIN HRN 12.4-18GHZ 20DBI |
3,841 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.25 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 2.257" (57.33mm) | General Purpose |
|
|
PEWAN062-20ELSFWR62 GAIN HRN 12.4-18GHZ 20DBI |
3,104 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.4 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 2.257" (57.33mm) | General Purpose |
|
|
PEWAN062-20NFWR62 GAIN HRN 12.4-18GHZ 20DBI |
2,999 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.4 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 2.257" (57.33mm) | General Purpose |
|
|
PEWAN062-20NMWR62 GAIN HRN 12.4-18GHZ 20DBI |
4,175 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.4 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Male | - | - | - | Waveguide Mount | 2.257" (57.33mm) | General Purpose |
|
|
PE9855B-15WR-75 Waveguide Standard Gain Ho |
3,973 | - |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.5 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 4.690" (119.13mm) | General Purpose |
|

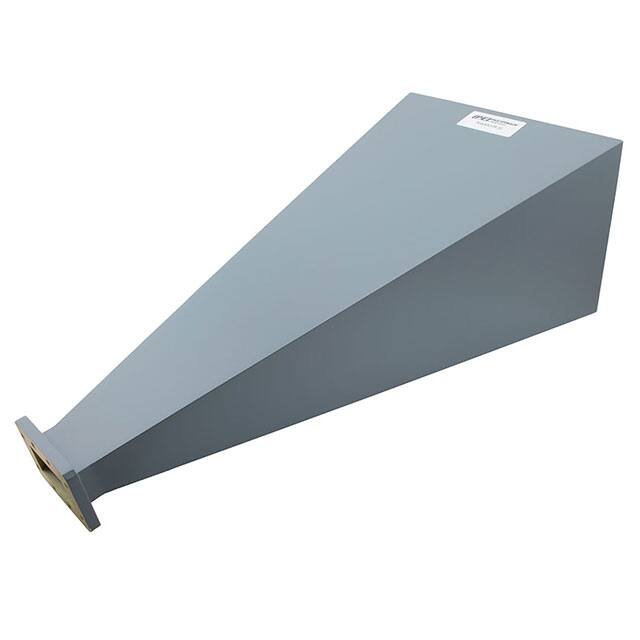

PEWAN159-20WR159 GAIN HORN 4.9-7.05GHZ 20DB |
3,607 | - |
|
Datasheet | - | Bulk | Active | Waveguide | C Band (4GHz ~ 8GHz) | 5.9GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PEWAN137-20NFWR137 GAIN HRN 5.85-8.2GHZ 20DBI |
2,342 | - |
|
Datasheet | - | Case | Active | WiFi | Wide Band | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | N Type Female | - | - | - | Waveguide Mount | 4.965" (126.10mm) | General Purpose |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
