RF Antennas

Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	RF Family/Standard	Frequency Group	Frequency (Center/Band)	Frequency Range	Antenna Type	Number of Bands	VSWR	Return Loss	Gain	Power - Max	Features	Termination	Ingress Protection	Grade	Qualification	Mounting Type	Height (Max)	Applications
PEWAN1119 WR-12 Waveguide Dual Polarized S Pasternack	2,155	-	RFQ	Datasheet	-	Retail Package	Active	Cellular	SHF (f > 4GHz)	75GHz	60GHz ~ 90GHz	Horn	1	1.4	-	13dBi	-	-	-	-	-	-	Waveguide Mount	1.300" (33.02mm)	5G
PEWAN1117 WR-15 Waveguide Dual Polarized S Pasternack	4,828	-	RFQ	Datasheet	-	Retail Package	Active	Cellular	SHF (f > 4GHz)	62.5GHz	50GHz ~ 75GHz	Horn	1	-	-	13dBi	-	-	-	-	-	-	Waveguide Mount	1.300" (33.02mm)	5G
PEWAN1121 WR-10 Waveguide Dual Polarized S Pasternack	4,677	-	RFQ	Datasheet	-	Retail Package	Active	Cellular	SHF (f > 4GHz)	92.5GHz	75GHz ~ 110GHz	Horn	1	-	-	13dBi	-	-	-	-	-	-	Waveguide Mount	1.300" (33.02mm)	5G
PEWAN1174 Broadband Horn Antenna, Dual Pol Pasternack	3,899	-	RFQ	Datasheet	-	Retail Package	Active	General ISM	SHF (f > 4GHz)	94GHz	93GHz ~ 95GHz	Horn	1	1.3	-	22dBi	-	-	-	-	-	-	Bracket Mount	1.220" (31.00mm)	General Purpose
PEWAN2300-10NF WR-2300 Waveguide Standard Gain Pasternack	4,467	-	RFQ	Datasheet	-	Retail Package	Active	General ISM	UHF (300MHz ~ 1GHz)	405MHz	320MHz ~ 490MHz	Horn	1	1.5	-	10dBi	-	-	N Type Female	-	-	-	Waveguide Mount	31.500" (800.10mm)	General Purpose

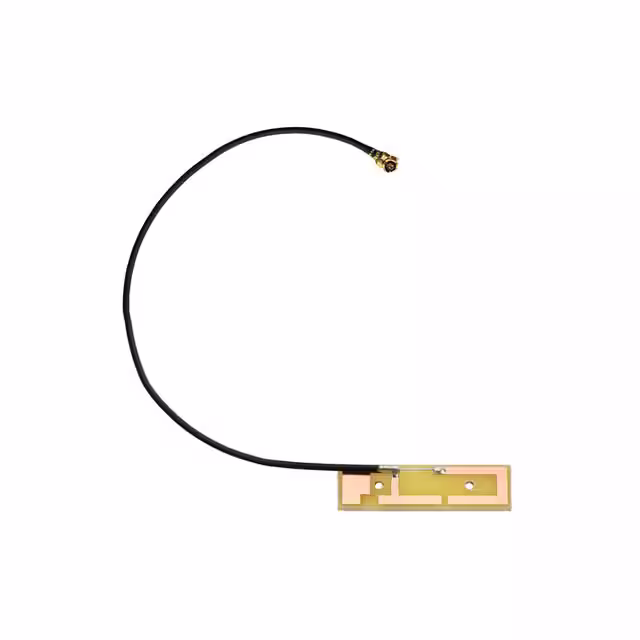

PE51207 3 DBI PCB 2400-2500 MHZ UMCX Pasternack	1,153	-	RFQ	Datasheet	-	Bag	Active	Bluetooth, WiFi	UHF (2GHz ~ 3GHz)	2.45GHz	2.4GHz ~ 2.5GHz	PCB Trace	1	2	-	3dBi	-	Cable - 100mm	U.FL (UMCX), I-PEX	-	-	-	Surface Mount	-	Bluetooth, WLAN

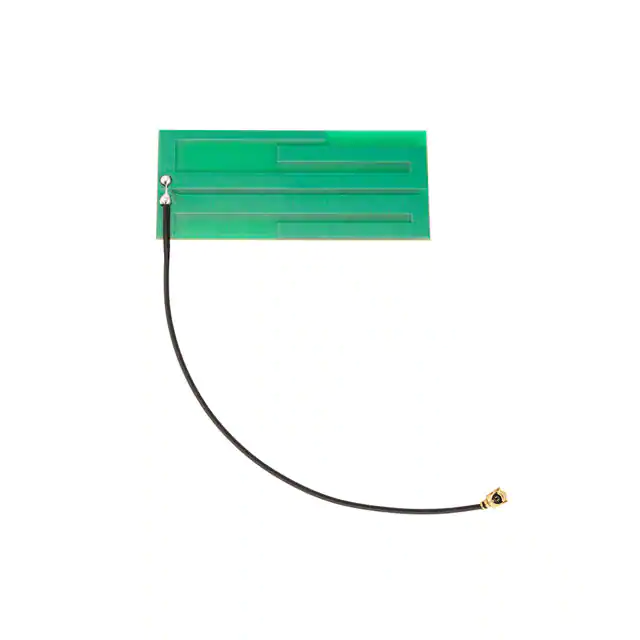

PE51195 0 DBI PCB ANT 824-960MHZ UMCX Pasternack	1,998	-	RFQ	Datasheet	-	Bag	Active	Cellular	UHF (300MHz ~ 1GHz)	892MHz	824MHz ~ 960MHz	PCB Trace	1	3	-	0dBi	1 W	Cable - 100mm	U.FL (UMCX), I-PEX	-	-	-	Surface Mount	-	-

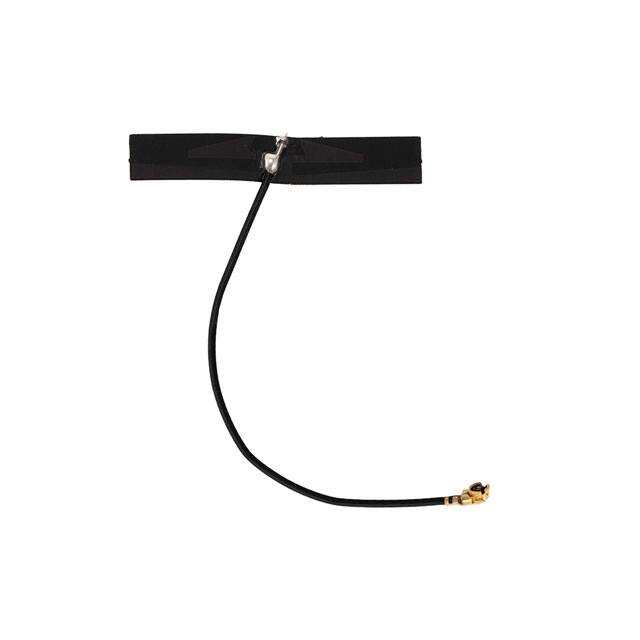

PE51203 4.5DBI PCB ANT 2400-5900MHZ UMCX Pasternack	2,796	-	RFQ	Datasheet	-	Bag	Active	WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.45GHz, 5.4GHz	2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz	PCB Trace	2	2.5	-	2.5dBi, 4.5dBi	5 W	Cable - 100mm	U.FL (UMCX), I-PEX	-	-	-	Surface Mount	0.006" (0.16mm)	WLAN

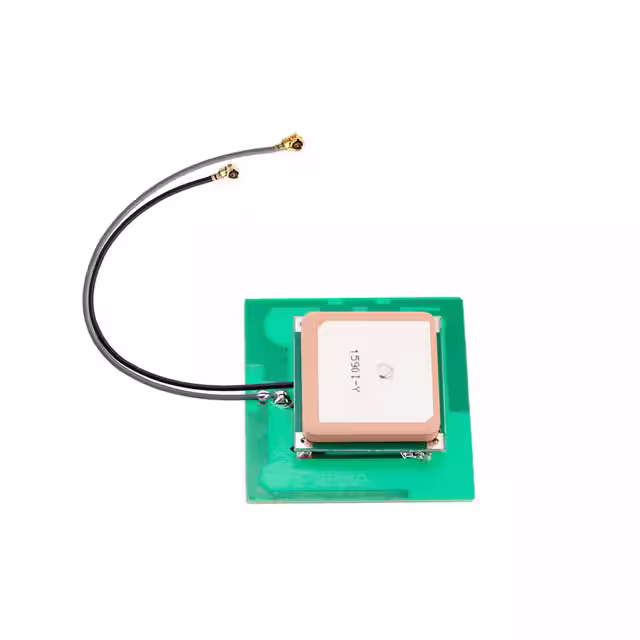

PE51212 5DBIC MULTIBAND 824-2170MHZ UMCX Pasternack	2,684	-	RFQ	Datasheet	-	Bag	Active	Cellular, Navigation	Wide Band	892MHz, 1.588GHz, 1.955GHz	824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.2GHz	Ceramic Patch	3	2, 2.5	-	2dBi, 5dBi, 3dBi	-	Cable - 100mm	U.FL (UMCX), I-PEX (2)	-	-	-	-	0.039" (1.00mm)	GPS, GNSS

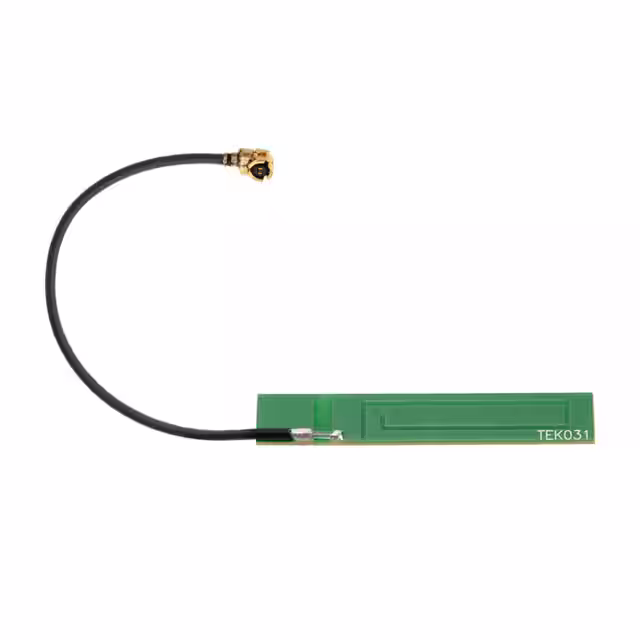

PE51194 0 DBI PCB ANT 824-2200MHZ UMCX Pasternack	3,550	-	RFQ	Datasheet	-	Bag	Active	Cellular	Wide Band	892MHz, 1.795GHz, 2.05GHz	824MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.9GHz ~ 2.2GHz	PCB Trace	3	3	-	0dBi	-	Cable - 100mm	U.FL (UMCX), I-PEX	-	-	-	Surface Mount	-	-

WINSUN SOURCING SUPPORT

Need Help Sourcing RF Antennas?

Send the target part number, manufacturer, specifications and quantity. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and alternative-part options when appropriate.

Availability and lead-time support BOM, shortage and alternative sourcing

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

RF Antennas FAQ

Common questions about filtering, comparing and sourcing RF Antennas components.

How can I narrow the RF Antennas selection?

Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.

Should I confirm the datasheet before selecting a part?

Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.

Can Winsun (HK) Electronics help source a specific RF Antennas part number?

Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.

Do you support BOM, shortage or alternative-part requirements?

Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
