RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMCA52-2R510G-S1F-T4RF ANT 2.5GHZ CHIP SOLDER SMD |
3,933 | - |
|
Datasheet | AMCA | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.5GHz | 2.41GHz ~ 2.61GHz | Chip | 1 | 2 | - | 2.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | WiMax™, WLAN |
|

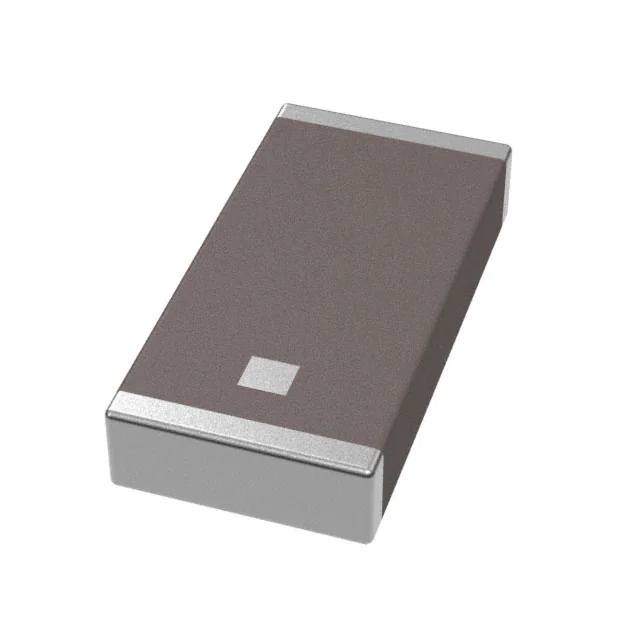

ACAG0301-15752450-TRF ANT 1.575GHZ/2.4GHZ CHIP SLD |
8,624 | - |
|
Datasheet | ACAG | Tape & Reel (TR) | Active | Bluetooth, General ISM, Navigation, WiFi | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.575GHz, 2.4GHz | 1.565GHz ~ 1.585GHz, 2.4GHz ~ 2.5GHz | Chip | 2 | - | - | 1.21dBi, 3.18dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, GPS, ISM, Wi-Fi |
|
APAE1575R1340ABDD6-TRF ANT 1.575GHZ CER PATCH PIN |
981 | - |
|
Datasheet | APAE | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.584GHz ~ 1.588GHz | Ceramic Patch | 1 | 1.5 | -15dB | - | - | - | Pin | - | - | - | Adhesive | 0.185" (4.70mm) | GPS |
|
ACR1004GCGNSS+GPS(L5) MULTIBAND CHIP ANT |
1,952 | - |
|
Datasheet | ACR | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.602GHz | 1.166GHz ~ 1.186GHz, 1.561GHz ~ 1.61GHz | Chip | 4 | - | -12dB | 1.9dBi, 2.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
ACR2005I4RF ANT 433/450- 470MHZ CHIP SMD |
1,938 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz, 450MHz, 470MHz | - | Chip | 3 | - | - | 0.3dBi, -0.3dBi, -0.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | ISM, LoRa, LPWAN, Sigfox |
|
APAKN0904-S1575-TRF ANT COMPACT GPS PATCH |
892 | - |
|
Datasheet | APAK | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | - | -10dB | 0.5dBi | - | - | - | - | - | - | Surface Mount | 0.157" (4.00mm) | GNSS, GPS |
|
APRA1804G3ZRF ANT 1561/1575/1602MHZ CER PAT |
288 | - |
|
Datasheet | APRA | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz | Chip | 3 | - | -20dB | 2dBi, 4dBi, 3dBi | - | - | Solder | - | Automotive | AEC-Q200 | Surface Mount | 0.157" (4.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
APAKN1304-C2G-TRF ANT 1.575/1.602GHZ CER PATCH |
2,000 | - |
|
Datasheet | APAK | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Ceramic Patch | 2 | - | -10dB, -10dB | 2.4dBi, 2.6dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Galileo, GLONASS, GNSS, GPS |
|
ACAR4008-S6984G/LTE CERAMIC CHIP ANT |
2,882 | - |
|
Datasheet | ACAR | Tape & Reel (TR) | Active | Cellular | Wide Band | 830MHz, 1.94GHz, 2.6GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Chip | 3 | 4 | - | -0.16dBi, -1.55dBi, 0.1dBi, 0.33dBi, 1.75dBi, 2.27dBi, 2.74dBi, 2.75dBi, 3.79dBi, 4.1dBi | - | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | 2G, 3G, 4G, GSM, LTE |
|
ACAJ-110-TRF ANT 868MHZ/915MHZ CHIP SLD |
2,694 | - |
|
Datasheet | ACAJ | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | - | Chip | 2 | 3 | - | -2.5dBi, -2.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | ISM |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
