RF Antennas

Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	RF Family/Standard	Frequency Group	Frequency (Center/Band)	Frequency Range	Antenna Type	Number of Bands	VSWR	Return Loss	Gain	Power - Max	Features	Termination	Ingress Protection	Grade	Qualification	Mounting Type	Height (Max)	Applications
ANT-MD24-12 RF ANT 2.4GHZ PANEL N FEM BRKT Red Lion Controls	1,101	-	RFQ	Datasheet	-	Bulk	Obsolete	WiFi	UHF (2GHz ~ 3GHz)	2.4GHz	2.4GHz ~ 2.483GHz	Panel	1	1.5	-	12dBi	100 W	-	N Type Female	-	-	-	Bracket Mount	4.016" (102.00mm)	WLAN
ANT-PAD24-14 RF ANT 2.4GHZ PANEL N FEM CHASS Red Lion Controls	3,855	-	RFQ	Datasheet	-	Bulk	Obsolete	WiFi	UHF (2GHz ~ 3GHz)	2.4GHz	2.4GHz ~ 2.5GHz	Panel	1	1.5	-	14dBi	25 W	-	N Type Female	IP65	-	-	Chassis Mount	1.024" (26.00mm)	WLAN
ANT-PAD58-20 RF ANT 5.8GHZ PANEL CAB BRKT MT Red Lion Controls	2,950	-	RFQ	Datasheet	-	Bulk	Obsolete	WiFi	SHF (f > 4GHz)	5.8GHz	5.15GHz ~ 5.875GHz	Panel	1	1.5	-10dB	20dBi	6 W	Cable - 7.62m	N Type Female	-	-	-	Bracket Mount	10.400" (264.16mm)	Wi-Fi, WLAN
ANT-MA104CAB015 RF ANT 850MHZ/900MHZ MODULE CAB Red Lion Controls	2,421	-	RFQ	Datasheet	-	Bulk	Active	Cellular, Navigation	Wide Band	850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz	824MHz ~ 960MHz, 1.85GHz ~ 2.17GHz	Module	6	3.5	-25dB	5dBi	10 W	Cable - 3m	SMA Male	IP67, IP69K	-	-	Panel Mount	1.142" (29.00mm)	AMPS, CDMA, DCS, EVDO, GPRS, GPS, GSM, HSPA, PCS, UMTS, WCDMA

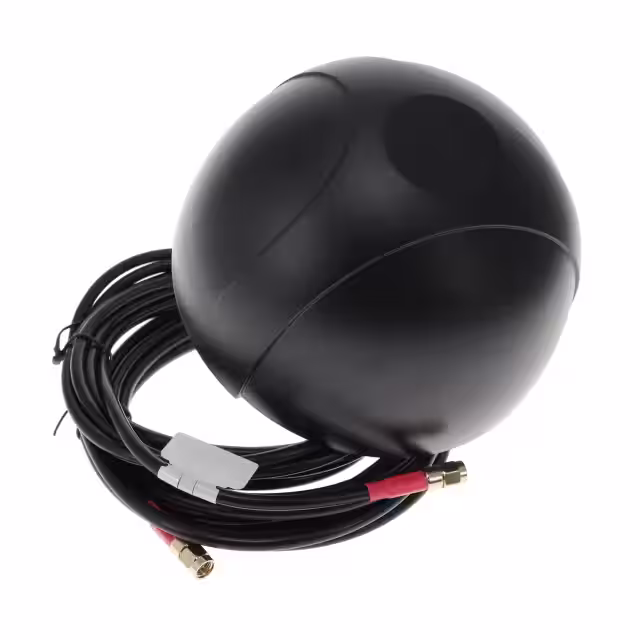

ANT-MA741ABI001 RF ANT 829MHZ/1.94GHZ DOME SMA Red Lion Controls	4,608	-	RFQ	Datasheet	Pantheon	Bulk	Obsolete	Cellular	Wide Band	829MHz, 1.94GHz, 2.5GHz, 3.2GHz	698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 2.9GHz ~ 3.5GHz	Dome	4	-	-7dB	3.2dBi	-	-	SMA Male	IP67	-	-	Panel Mount	3.374" (85.70mm)	CDMA, HSPA, GPRS, GSM, LTE, UMTS
ANT-MA760AABIC003 RF ANT 700MHZ/850MHZ DOME PNL MT Red Lion Controls	4,970	-	RFQ	Datasheet	Pantheon	Bulk	Active	Cellular, Navigation, WiFi	Wide Band	700MHz, 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 5GHz	698MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 2.9GHz ~ 3.5GHz, 4.7GHz ~ 5.9GHz	Dome	10	3, 2, 1.7	-	2.1dBi, 3.8dBi	-	Cable - 3m, LNA, Filter	SMA Male (3), RP-SMA Male (1)	IP67	-	-	Panel Mount	3.138" (79.70mm)	GLONASS, GPS, LTE, Wi-Fi
ANT-MA301AAB001 RF ANT 850MHZ/900MHZ MOD SMA MAG Red Lion Controls	4,997	-	RFQ	Datasheet	-	Bulk	Active	Cellular, Navigation	Wide Band	850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz	824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz	Module	6	1.92, 2.5	-	28dB	-	Cable - 3m, LNA	SMA Male (2)	IP65	-	-	Magnetic	0.661" (16.80mm)	CDMA, DCS, GPRS, GPS, GSM, HSPA, PCS, UMTS, WCDMA
ANT-PD58-32 RF ANT 5.8GHZ PARABOLIC BRKT MT Red Lion Controls	3,666	-	RFQ	Datasheet	-	Bulk	Active	WiFi	SHF (f > 4GHz)	5.8GHz	5.47GHz ~ 5.85GHz	Parabolic	1	1.5	-10dB	32dBi	100 W	Cable - 7.62m	-	-	-	-	Bracket Mount	35.400" (899.16mm)	Wi-Fi, WLAN
ANT-TG090113 RF ANT 1.5GHZ WHIP TILT SMA 3" Red Lion Controls	2,337	-	RFQ	Datasheet	-	Bulk	Active	Cellular	Wide Band	1.5GHz	800MHz ~ 2.2GHz	Whip, Tilt	1	-	-	2.8dBi	10 W	-	SMA Male	-	-	-	Connector Mount	2.835" (72.00mm)	CDMA, HSPA, GSM, UMTS
ANT-MA741BBI001 RF ANT 829MHZ/1.94GHZ DOME SMA Red Lion Controls	3,635	-	RFQ	Datasheet	-	Bulk	Active	Cellular	Wide Band	829MHz, 1.94GHz, 2.5GHz, 3.2GHz	698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 2.9GHz ~ 3.5GHz	Dome	4	-	-	-	-	Cable - 2.74m	SMA Male	IP67	-	-	Panel Mount	3.228" (82.00mm)	2G, 3G, 4G, LTE

WINSUN SOURCING SUPPORT

Need Help Sourcing RF Antennas?

Send the target part number, manufacturer, specifications and quantity. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and alternative-part options when appropriate.

Availability and lead-time support BOM, shortage and alternative sourcing

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

RF Antennas FAQ

Common questions about filtering, comparing and sourcing RF Antennas components.

How can I narrow the RF Antennas selection?

Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.

Should I confirm the datasheet before selecting a part?

Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.

Can Winsun (HK) Electronics help source a specific RF Antennas part number?

Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.

Do you support BOM, shortage or alternative-part requirements?

Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
