RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

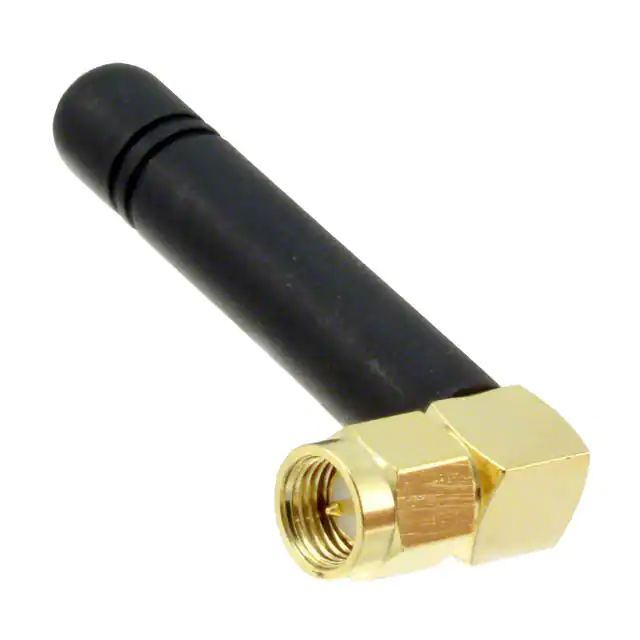

ANT-STUBR-433SMRF ANT 433MHZ WHIP RA SMA 42MM |
283 | - |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Right Angle | 1 | 2 | -20.1dB | 0dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.772" (45.00mm) | - |
|

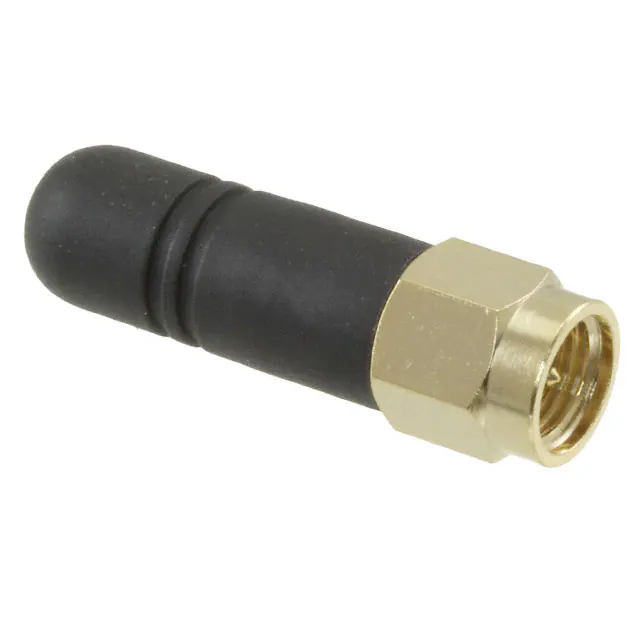

ANT-24G-S21-SMARF ANT 2.4GHZ WHIP STR SMA MALE |
272 | - |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Straight | 1 | 2 | - | 0dBi | - | - | SMA Male | - | - | - | Connector Mount | 0.827" (21.00mm) | General Purpose |
|
ANT-MDIP5-SMA+5DBI WHIP 90DEG HINGED 2.4GHZ / |
161 | - |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.2GHz, 5.787GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.25GHz, 5.725GHz ~ 5.85GHz | Whip, Tilt | 3 | 1.8 | - | 4dBi, 4.5dBi, 5dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 6.339" (161.00mm) | Wi-Fi |
|

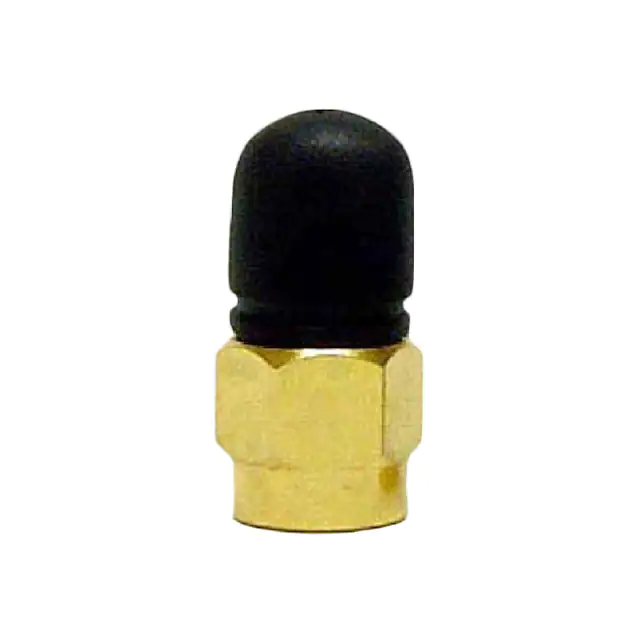

ANT-24G-S18-SMAM2.4GHZ V.STUBBY ANTENNA STRAIGHT |
114 | - |
|
Datasheet | - | Bag | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Straight | 1 | 2 | - | 0dBi | - | - | SMA Male | - | - | - | Connector Mount | 0.709" (18.00mm) | General Purpose |
|

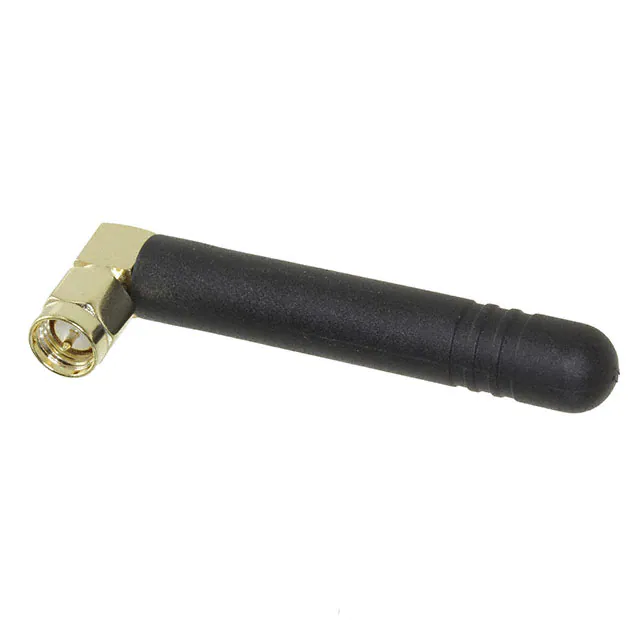

ANT-GHEL2R-SMARF ANT 920MHZ/1.8GHZ WHIP RA |
166 | - |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 920MHz, 1.8GHz | 890MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | Whip, Right Angle | 2 | 2 | - | 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.323" (59.00mm) | General Purpose |
|
FLEXI-M4-433RF ANT 433MHZ WHIP STR |
337 | - |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Straight | 1 | - | - | - | - | - | Screw-Mount | - | - | - | Through Hole | 6.417" (163.00mm) | - |
|

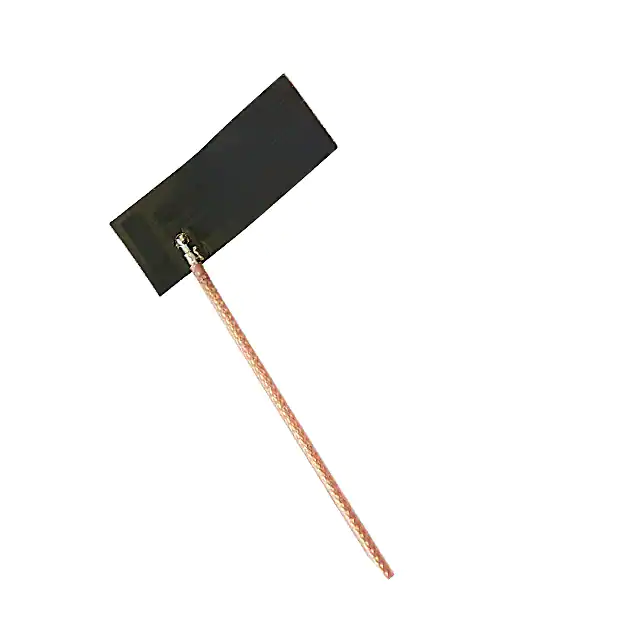

ANT-GFPCB1540-UFLRF ANT 830MHZ/2.25GHZ FLAT CAB |
255 | - |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 830MHz, 2.25GHz | 700MHz ~ 960MHz, 1.8GHz ~ 2.7GHz | Flat Patch | 2 | 2 | - | 5dBi | 1 W | Cable - 150mm | - | - | - | - | Adhesive | 0.031" (0.80mm) | GSM |
|

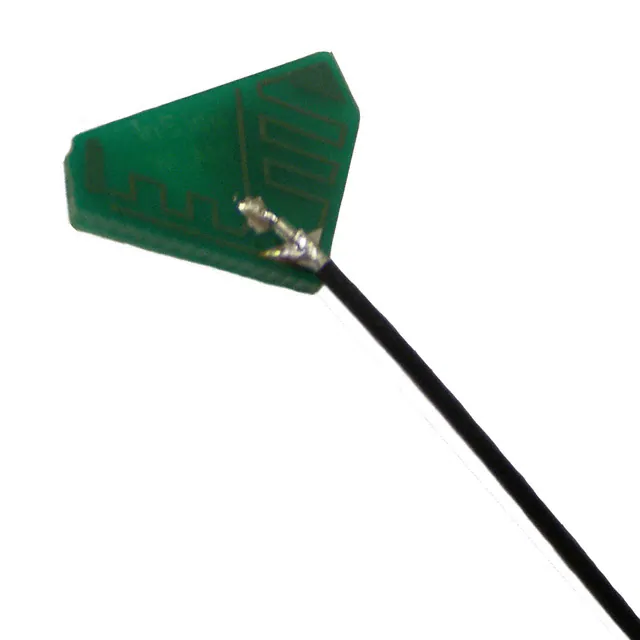

ANT-INSIDE-WLANRF ANT 2.4/5.5GHZ PCB TRACE U.FL |
143 | - |
|
Datasheet | - | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.486GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 3, 4 | - | 3dB | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | WLAN |
|
ANT-GSMGPSPUKSRF ANT 850MHZ/900MHZ PUCK PNL MT |
3,658 | - |
|
Datasheet | - | Bulk | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.6GHz | 824MHz ~ 960MHz, 1.57GHz ~ 1.58GHz, 1.71GHz ~ 2.17GHz, 2.6GHz ~ 2.7GHz | Puck | 4 | 2 | - | 2dB, 30dB | - | Cable - 3m | SMA Male (2) | IP67 | - | - | Panel Mount | 0.917" (23.30mm) | GPS, GSM |
|

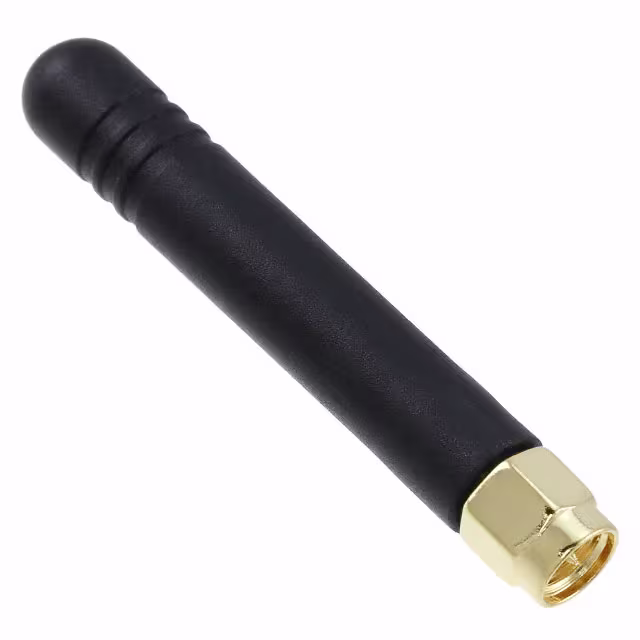

ANT-4HEL2-SMARF ANT 433MHZ WHIP STR SMA 58MM |
2,429 | - |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Straight | 1 | 2 | - | 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.283" (58.00mm) | General Purpose |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
