RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECHO41/0.1M/IPEX/S/S/172G/3G/4G EMBEDDED SMALL FPC ANTE |
4,905 | - |
|
Datasheet | ECHO 41 | Bulk | Active | Cellular | Wide Band | 825MHz, 1.94GHz, 2.6GHz | 690MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Flat Patch | 3 | 2.7 | - | 2.7dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.012" (0.30mm) | 2G, 3G, 4G, GSM, LTE, UMTS |
|
ALPHA15/2.5M/SMAM/S/S/26RF ANT 850/900MHZ PUCK SMA MALE |
4,946 | - |
|
Datasheet | ALPHA 15 | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Puck | 5 | 2.5 | - | 2dBi | - | - | SMA Male | - | - | - | Adhesive | 0.571" (14.50mm) | GPRS, GSM, UMTS |
|
ECHO31/0.5M/SMAM/S/S/17DUAL BAND 2.4/5GHZ WIFI ANTENNA |
1,154 | - |
|
Datasheet | Echo 31 | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | PCB Trace | 2 | 2.8 | - | 3dBi | 50 W | - | SMA Male | - | - | - | Surface Mount | 0.031" (0.80mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|

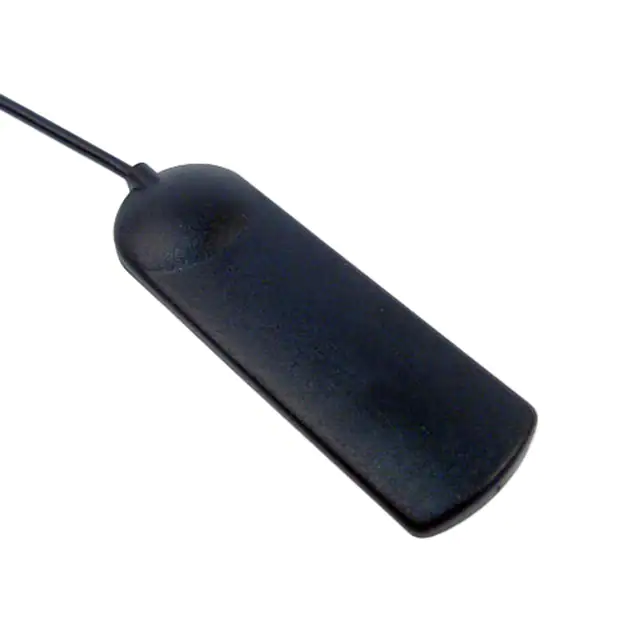

ALPHA3A/0.4M/FMEF/S/S/26RF ANT 850/868MHZ BLADE FME FEM |
2,860 | - |
|
Datasheet | ALPHA 3A | Bulk | Active | 802.15.4, Bluetooth, Cellular, WiFi | Wide Band | 850MHz, 868MHz, 900MHz, 915MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | - | Blade | 8 | 2 | - | 3dBi | - | - | FME Female | - | - | - | Adhesive | 0.098" (2.50mm) | Bluetooth, GPRS, GSM, UMTS, WLAN, Zigbee™ |
|

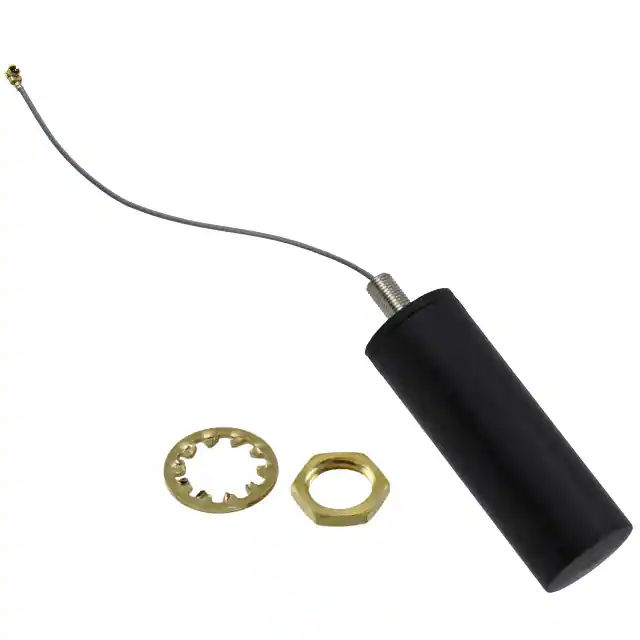

TANGO45/0.1M/IPEX/S/S/29RF ANT WHIP STR IPEX PAN MT |
4,975 | - |
|
Datasheet | TANGO 45 | Bulk | Active | - | Wide Band | - | - | Whip, Straight | 3 | 3.5 | - | 2dBi | 1 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 2.362" (60.00mm) | - |
|

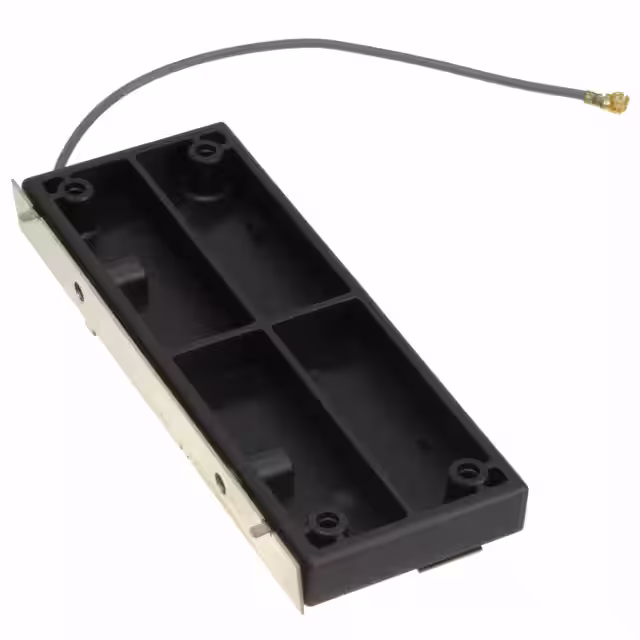

ECHO40/0.1M/UFL/S/S/324G/3G/WIFI EMBEDDED PIFA STYLE A |
2,833 | - |
|
Datasheet | ECHO 40 | Bulk | Active | Cellular, WiFi | Wide Band | 875MHz, 1.94GHz, 2.6GHz | 790MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | FlexPIFA | 3 | 3 | - | 0dBi, 2dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Solder | 3.555" (90.30mm) | 3G, Bluetooth, GSM, LTE, UMTS, WiMax™ |
|
DELTA6C/X/SMAM/S/RP/11RF ANT 2.4GHZ/5.8GHZ WHIP TILT |
2,147 | - |
|
Datasheet | DELTA 6C | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | - | Whip, Tilt | 2 | 2 | - | 4.3dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 7.717" (196.00mm) | Bluetooth, WLAN, Zigbee™ |
|
ALPHA40/5M/SMAM/S/S/29RF ANT 762MHZ/1.94GHZ FLAT BAR |
4,598 | - |
|
Datasheet | ALPHA 40 | Bulk | Active | 802.15.4, Bluetooth, Cellular, WiFi | Wide Band | 762MHz, 1.94GHz, 2.5GHz | 700MHz ~ 824MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Flat Bar | 3 | - | - | 2dBi | - | - | SMA Male | - | - | - | Adhesive | 0.177" (4.50mm) | Bluetooth, WLAN |
|
TANGO49/2.5M/SMAM/S/S/17QUAD BAND GSM GPS SHARKS FIN ANT |
4,559 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ALPHA40/2.5M/SMAM/S/S/29RF ANT 762MHZ/1.94GHZ FLAT BAR |
2,355 | - |
|
Datasheet | ALPHA 40 | Bulk | Active | 802.15.4, Bluetooth, Cellular, WiFi | Wide Band | 762MHz, 1.94GHz, 2.5GHz | 700MHz ~ 824MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Flat Bar | 3 | - | - | 2dBi | - | - | SMA Male | - | - | - | Adhesive | 0.177" (4.50mm) | Bluetooth, WLAN |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
