RF Antennas

Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	RF Family/Standard	Frequency Group	Frequency (Center/Band)	Frequency Range	Antenna Type	Number of Bands	VSWR	Return Loss	Gain	Power - Max	Features	Termination	Ingress Protection	Grade	Qualification	Mounting Type	Height (Max)	Applications
SZK-C-3L32-050-01 4G LTE ANT FLAT PATCH IPEX Synzen	495	-	RFQ	Datasheet	PETRA2	Tape & Box (TB)	Active	Cellular	Wide Band	829MHz, 1.94GHz, 2.35GHz, 2.595GHz	698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz	Flat Patch	5	3.2, 2, 2, 1.5, 2.7	-6dB, -9dB, -10dB, -15dB, -8dB	2.9dBi, 3.8dBi, 4.15dBi, 3.45dBi, 2.6dBi	5 W	Cable - 50mm	IPEX MHF1, U.FL (UMCC)	-	-	-	Adhesive	0.008" (0.20mm)	2G, 3G, 4G, LTE, NB-IOT
SZP-C-0U01 UWB ANT 3-7GHZ SMD CHIP Synzen	3,000	-	RFQ	Datasheet	RIGEL	Tape & Reel (TR)	Active	Ultra Wide Band	Wide Band	3.49GHz, 3.985GHz, 3.99GHz, 4.49GHz	3GHz ~ 7GHz	Chip	1	2.3	-10dB	3.6dBi	-	-	Solder	-	-	-	Surface Mount	0.063" (1.60mm)	UWB
SZP-C-0L02 4GLTE ANT 698-2690MHZ SMD CHIP Synzen	715	-	RFQ	Datasheet	OPALA	Tape & Reel (TR)	Active	Cellular	Wide Band	829MHz, 1.94GHz, 2.35GHz, 2.595GHz	698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz	Chip	5	3.1, 2.9, 3.25, 3.5	-6dB, -7.5dB, -6dB, -5dB	1.5dBi, 3.4dBi, 2.7dBi, 1.5dBi	5 W	-	Solder	-	-	-	Surface Mount	0.130" (3.30mm)	3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA
SZA-C-0G01 1.559GHZ-1.606GHZ SMD ACTIVE Synzen	2,000	-	RFQ	Datasheet	CENTAURI	Tape & Reel (TR)	Active	Navigation	UHF (1GHz ~ 2GHz)	1.5845GHz	1.559GHz ~ 1.61GHz	Chip	1	1.9	-7dB	0.1dBi	-	LNA	Solder	-	-	-	Surface Mount	0.059" (1.50mm)	Beidou, Galileo, GLONASS, GNSS, GPS
SZK-C-2L18 NB-IoT LTE ANT FLAT PATCH IPEX Synzen	390	-	RFQ	Datasheet	-	Bag	Active	Cellular	Wide Band	875.5MHz, 1.955GHz, 2.35GHz, 5.595GHz	791MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz	Flat Patch	4	-	-	2.88dBi, 4.31dBi, 1.95dBi, 2.01dBi	-	-	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.008" (0.20mm)	2G, 3G, 4G, LTE, NB-IOT
SZA-C-0G03 1.559GHZ-1.606GHZ SMD ACTIVE Synzen	985	-	RFQ	Datasheet	PROXIMA	Tape & Reel (TR)	Active	Navigation	UHF (1GHz ~ 2GHz)	1.5845GHz	1.559GHz ~ 1.61GHz	Chip	1	1.9	-7dB	0.1dBi	-	LNA	Solder	-	-	-	Surface Mount	0.059" (1.50mm)	Beidou, Galileo, GLONASS, GNSS, GPS
SZK-C-3L31-100-01 5G ANT FLAT PATCH IPEX Synzen	195	-	RFQ	Datasheet	ALUDRA	Bulk	Active	Cellular	Wide Band	788.5MHz, 1.543GHz, 1.955GHz, 2.35GHz, 2.59GHz, 3.75GHz	617MHz ~ 960MHz, 1.427GHz ~ 1.66GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz	Flat Patch	6	-	-	4.2dBi, 4.7dBi, 4.44dBi, 4.83dBi, 4.69dBi, 5.3dBi	-	Cable - 100mm	MHF1	-	-	-	Adhesive	0.008" (0.20mm)	5G
SZK-C-0L04 4G LTE ANT FLAT PATCH IPEX Synzen	995	-	RFQ	Datasheet	LALANDE	Bulk	Active	Cellular	Wide Band	829MHz, 1.94GHz, 2.35GHz, 2.595GHz	698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz	Flat Patch	5	2.3, 2.6, 2.9, 3.5	-6dB, -11.3dB, -11.4dB, -13.8dB	2.3dBi, 2.6dBi, 2.9dBi, 3.5dBi	-	-	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.008" (0.20mm)	3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA
SZK-C-2L20 4G LTE ANT FLAT PATCH IPEX Synzen	500	-	RFQ	Datasheet	-	Bag	Active	Cellular	Wide Band	829MHz, 1.955GHz, 2.35GHz, 2.595GHz	698MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz	Flat Patch	4	-	-	3.35dBi, 2.37dBi, 2.21dBi, 2.59dBi	-	-	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.008" (0.20mm)	2G, 3G, 4G, LTE, NB-IOT

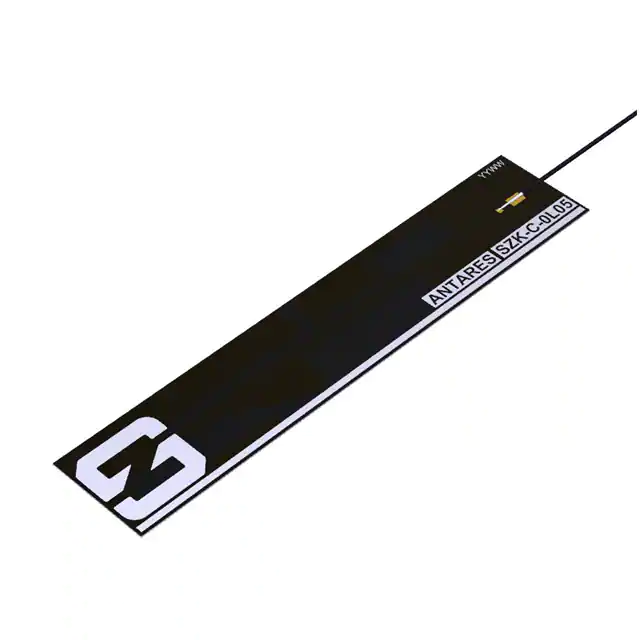

SZK-C-0L05 5G ANT PCB TRACE IPEX Synzen	500	-	RFQ	Datasheet	ANTARES	Bulk	Active	Cellular	Wide Band	657.5MHz, 748MHz, 892MHz, 1.94GHz, 2.35GHz, 2.595GHz, 3.55GHz	617MHz ~ 960MHz, 1.427GHz ~ 1.66GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz	PCB Trace	7	4.7, 1.52, 1.65, 1.85	-4dB, -13dB, -12dB, -10dB	3.2dBi, 3.1dBi, 3.7dBi, 4.5dBi	-	-	U.FL (UMCC), I-PEX MHFII	-	-	-	Adhesive	0.008" (0.20mm)	5G, 4G, 2G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA

WINSUN SOURCING SUPPORT

Need Help Sourcing RF Antennas?

Send the target part number, manufacturer, specifications and quantity. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and alternative-part options when appropriate.

Availability and lead-time support BOM, shortage and alternative sourcing

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

RF Antennas FAQ

Common questions about filtering, comparing and sourcing RF Antennas components.

How can I narrow the RF Antennas selection?

Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.

Should I confirm the datasheet before selecting a part?

Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.

Can Winsun (HK) Electronics help source a specific RF Antennas part number?

Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.

Do you support BOM, shortage or alternative-part requirements?

Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
