RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

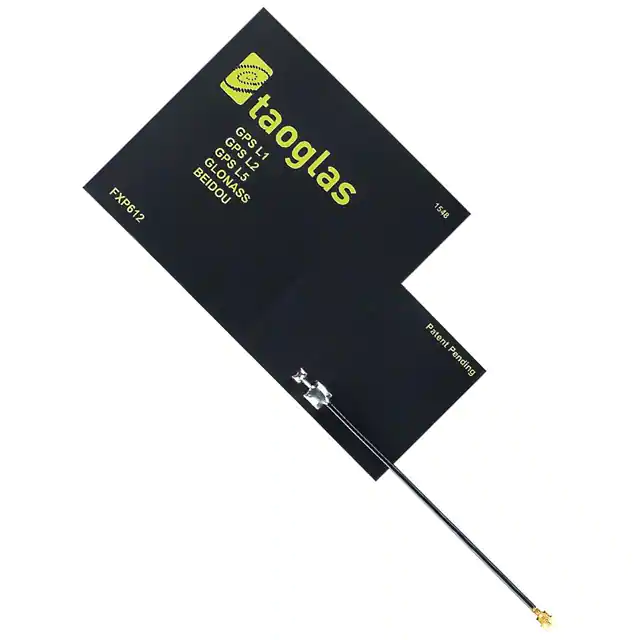

FXP612.07.0095ARF ANT FLAT PATCH IPEX MHFI ADH |
4,613 | - |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | - | - | Flat Patch | 3 | 1.3 | -23dB | 4dBi | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | Beidou, GLONASS, GPS |
|
AFXP.125.07.0095AACTIVE MULTI-BAND GNSS FLEXIBLE |
1,969 | - |
|
Datasheet | - | Bulk | Active | Navigation | Wide Band | 1.176GHz, 1.561GHz, 1.575GHz, 1.603GHz | - | Flat Patch | 4 | 1 | - | -3.73dBi, -0.71dBi, -0.63dBi, -0.13dBi | - | Cable - 95mm, LNA, Filter | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.091" (2.30mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|

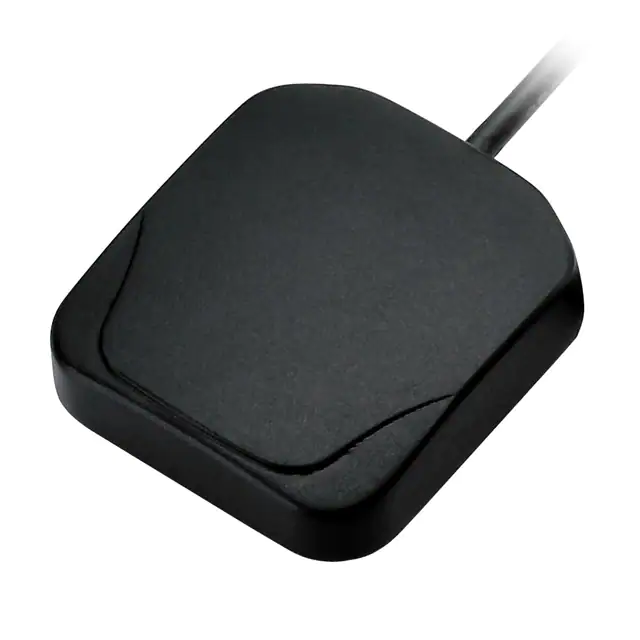

AA.166.A.301111AA.166.A.301111 ULYSSES MINIATUR |
3,679 | - |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.559GHz, 1.561GHz, 1.575GHz, 1.592GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz | Module | 5 | 5 | -3dB | 1.92dBi, 2.34dBi, 0.34dBi, 2.1dBi, 1.81dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 0.394" (10.00mm) | Beidou, Galileo, GLONASS, GPS |
|

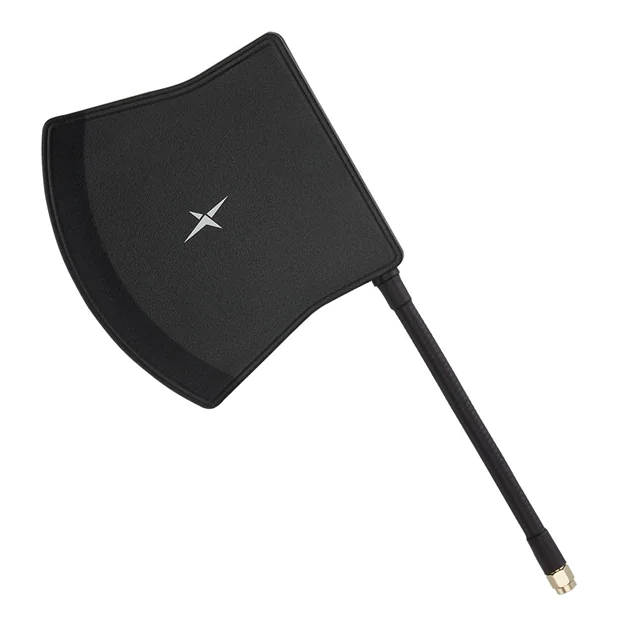

TS.89.4113SIGHUNTER 868 & 915MHZ DIRECTION |
2,362 | - |
|
Datasheet | - | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | - | Module | 2 | - | - | 3.5dBi, 2.7dBi | 10 W | Cable - 127mm | SMA Male | - | - | - | Connector Mount | 4.646" (118.00mm) | ISM, LoRa, Sigfox |
|

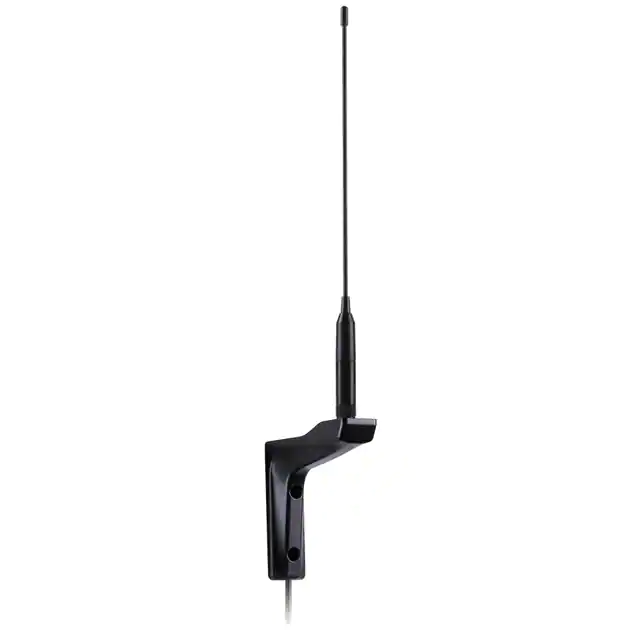

WM.86.A.305111CYCLOPS 868MHZ WALL MOUNT FLEXIB |
1,124 | - |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 850MHz ~ 890MHz | Whip, Straight | 1 | - | -10dB | 2.57dBi | 10 W | Cable - 3m | SMA Male | IP65 | - | - | Bracket Mount | 12.087" (307.00mm) | ISM |
|
|
AHP24510.07.0100CACTIVE GNSS L1,L2 L-BAND STACKED |
3,554 | - |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.227GHz, 1.249GHz, 1.542GHz, 1.561GHz, 1.575GHz, 1.589GHz | 1.217GHz ~ 1.237GHz, 1.241GHz ~ 1.258GHz, 1.525GHz ~ 1.559GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.569GHz ~ 1.61GHz | Ceramic Patch | 6 | 2 | - | 3.05dBi, 2.86dBi, 4.33dBi, 4.48dBi, 4.5dBi, 2.46dBi | - | Cable - 100mm, LNA, Filter | I-PEX MHFI (U.FL) | - | - | - | Adhesive | 0.596" (15.15mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
|
A.120.A.101111BOLT LOW PROFILE ACTIVE GNSS L1/ |
1,294 | - |
|
Datasheet | - | Bulk | Active | Navigation | Wide Band | 1.176GHz, 1.201GHz, 1.227GHz, 1.248GHz, 1.268GHz, 1.278GHz, 1.542GHz, 1.561GHz, 1.575GHz, 1.602GHz | - | Dome | 10 | 1.5 | - | -1.5dBi, 0.5dBi, 1.8dBi, 1.2dBi, -0.1dBi, -1.5dBi, 2.6dBi, 4.2dBi, 4dBi, 2.7dBi | - | Cable - 1m, LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 1.024" (26.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|

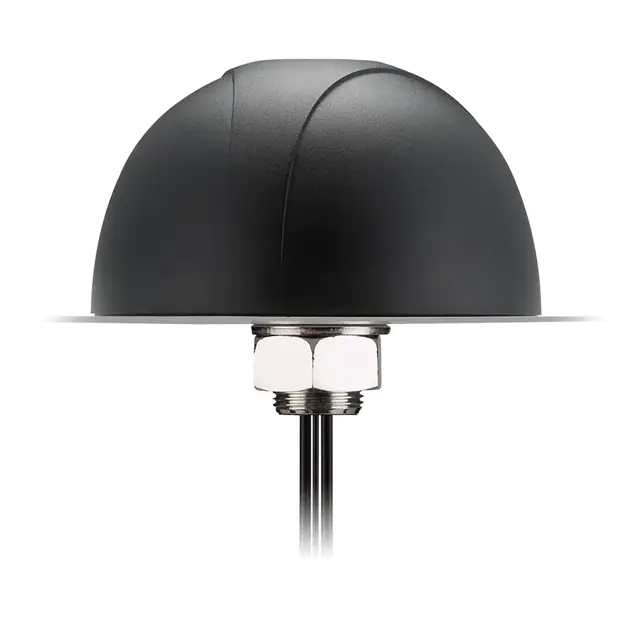

MA700.A.ABC.001RF ANT 750/892MHZ DOME SMA MALE |
2,971 | - |
|
Datasheet | Pantheon | Box | Active | Cellular, Navigation | Wide Band | 750MHz, 892MHz, 1.588GHz, 1.9GHz, 2.4GHz, 5.5GHz | 700MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 5GHz ~ 5.9GHz | Dome | 6 | 2, 1.7 | - | 2.4dBi, 1.7dBi, 32dBi, 2.4dBi, 2.1dBi, 3.8dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 3.374" (85.70mm) | GLONASS, GPS, LTE |
|
OMB.445.05F21RF ANT 4.7GHZ WHIP STR N FEM |
4,491 | - |
|
Datasheet | Barracuda | Tube | Active | - | SHF (f > 4GHz) | 4.7GHz | 4.4GHz ~ 5GHz | Whip, Straight | 1 | 1.5 | - | 7dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 10.630" (270.00mm) | - |
|

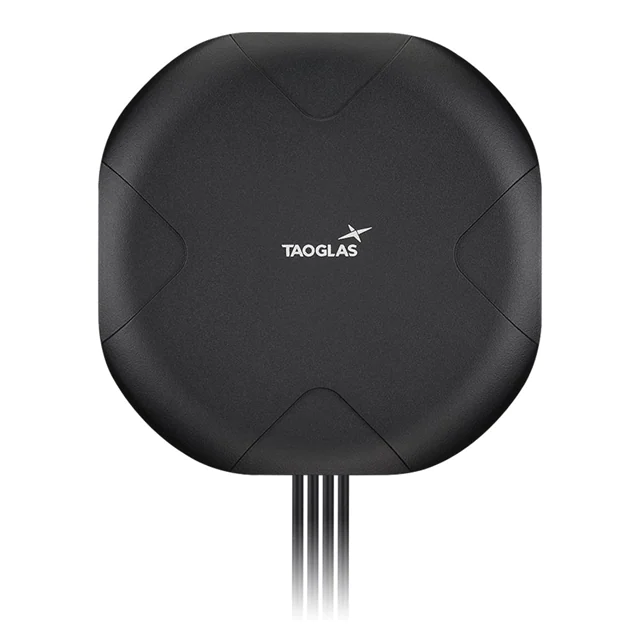

TGX.04.A.001450-6000MHZ CROSS POLARISED WIDE |
2,023 | - |
|
Datasheet | - | Bag | Active | Cellular, WiFi | Wide Band | 450MHz, 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz | 430MHz ~ 470MHz, 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Module | 9 | - | - | 1dBi, 1.9dBi, 2.7dBi, 2.8dBi, 3.1dBi, 4.2dBi, 4.3dBi, 3.5dBi, 2.3dBi | 10 W | - | SMA Male | IP67 | - | - | Pole, Wall Mount | 5.866" (149.00mm) | 3G, 4G, 5G, LTE, Wi-Fi |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
