RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-2823599-2RF ANT 829MHZ/2.2GHZ DOME SMA |
4,537 | - |
|
Datasheet | - | Bulk | Obsolete | Cellular, WiFi | Wide Band | 829MHz, 2.2GHz, 5.4GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 4.9GHz ~ 6GHz | Dome | 3 | 2.5 | - | 5dBi | 50 W | - | SMA | IP66 | - | - | Panel Mount | 2.441" (62.00mm) | LTE, WLAN |
|

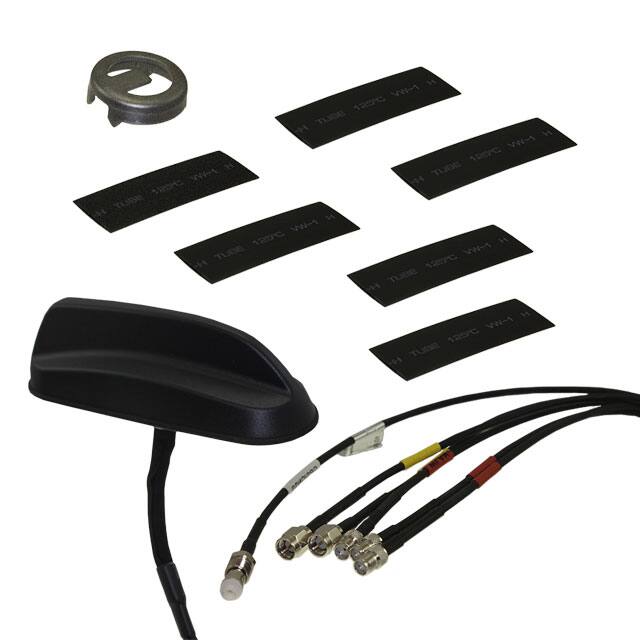

2332157-4MULTI FUNCTION MIMO ANTENNA 2G/3 |
3,956 | - |
|
Datasheet | - | Bulk | Obsolete | Cellular, Navigation | Wide Band | 829MHz, 1.587GHz, 1.94GHz, 2.4GHz, 3.15GHz, 5.45GHz | 698MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.5GHz, 2.5GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | Dome | 6 | 2 | - | 2dBi, 4dBi, 5dBi, 6dBi | 25 W | Cable - 300mm, LNA | FME, SMA | IP66 | - | - | Panel Mount | 1.969" (50.00mm) | 2G, 3G, 4G, Beidou, Galileo, GNSS, GPS, WLAN |
|
1-2823593-1RF ANT 829MHZ MODULE N FEM SMD |
2,514 | - |
|
Datasheet | - | Bulk | Obsolete | Cellular, Navigation, WiFi | UHF (300MHz ~ 1GHz) | 829MHz | 698MHz ~ 960MHz | Module | 1 | - | - | - | - | - | N Type Female | - | - | - | Surface Mount | 4.528" (115.00mm) | GPS, GSM, WiMax™, WLAN |
|
1-2823592-1RF ANT 829MHZ MOD N FEM TH |
2,577 | - |
|
Datasheet | - | Bulk | Obsolete | Cellular, Navigation, WiFi | UHF (300MHz ~ 1GHz) | 829MHz | 698MHz ~ 960MHz, 1.56GHz ~ 1.61GHz, 1.71GHz ~ 2.7GHz, 4.9GHz ~ 6GHz | Module | 1 | - | - | - | - | - | N Type Female, TNC Female | - | - | - | Through Hole | 4.055" (103.00mm) | GPS, GSM, WiMax™, WLAN |
|
1513431-2RF ANT 2.4GHZ PCB TRACE SLDR SMD |
1,428 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | PCB Trace | 1 | 2 | - | 0dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.031" (0.79mm) | Bluetooth, WLAN, Zigbee™ |
|

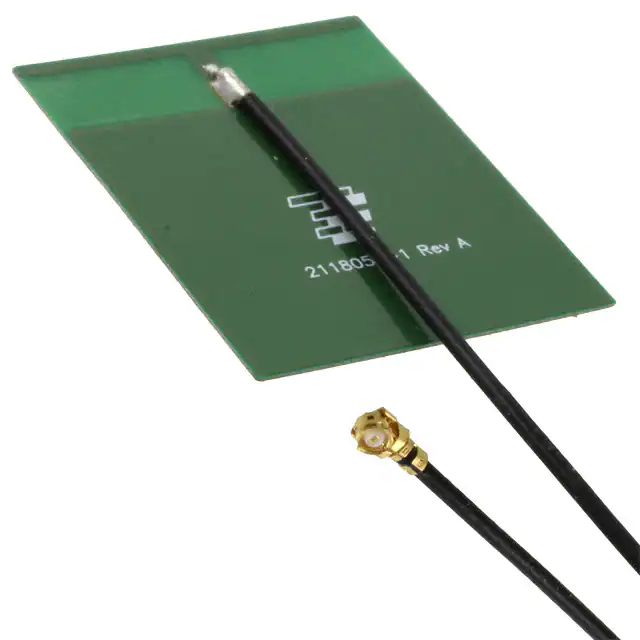

2118059-1RF ANT 3GHZ FLT PATCH U.FL 350MM |
4,457 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), UHF (3GHz ~ 4GHz) | 3GHz | 2.3GHz ~ 3.8GHz | Flat Patch | 1 | 3 | - | 4dBi | 3 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.012" (0.30mm) | Bluetooth, WLAN, Zigbee™ |
|
1513349-2RF ANT 2.4GHZ PCB TRACE SLDR SMD |
3,037 | - |
|
Datasheet | - | Bulk | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | PCB Trace | 1 | 2 | - | 0dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | Bluetooth, WLAN, Zigbee™ |
|
2118788-1ASSY DUAL BAND WIFI 2.4/5GHZ PCB |
2,356 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | Chip | 2 | - | - | - | - | - | Solder | - | - | - | Surface Mount | 0.169" (4.28mm) | General Purpose |
|
|
1513433-1RF ANT 1.9GHZ CHIP SOLDER SMD |
3,603 | - |
|
Datasheet | - | Bulk | Active | - | UHF (1GHz ~ 2GHz) | 1.9GHz | 1.85GHz ~ 1.99GHz | Chip | 1 | - | - | - | - | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | - |
|
|
2108965-5FPC ANT, MHF 4L, 50MM, UWB 6~8.5 |
2,027 | - |
|
Datasheet | - | Bag | Active | Ultra Wide Band | Wide Band | 7.2GHz | 6GHz ~ 8.5GHz | Flat Patch | 1 | 2 | - | 4.2dBi | 10 W | Cable - 50mm | MHF4L | - | - | - | Adhesive | 0.006" (0.15mm) | UWB |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
