RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2195846-8FPC ANT, MHF4L, 200MM, 698-7125 |
1,078 | - |
|
Datasheet | - | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 698MHz ~ 960MHz, 1.56GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 7 | 4 | - | 4.99dBi | - | Cable - 200mm | MHF4L | - | - | - | Adhesive, Chassis Mount | - | 4G, LTE, GNSS |
|
2344657-4FPC ANTENNA, CABLE, MHF, WI-FI T |
4,730 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2.7 | - | 5.3dBi | - | Cable - 200mm | MHF | - | - | - | Adhesive | 0.007" (0.19mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
2118909-1WLAN TRIPLE BAND ANT MHF CABLE 1 |
1,577 | - |
|
Datasheet | - | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.5GHz, 5.5125GHz, 6.525GHz | 2.3GHz ~ 2.7GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2, 2.5 | - | 4.2dBi, 4.2dBi, 4.2dBi | - | Cable - 120mm | MHF | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/n/ac/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

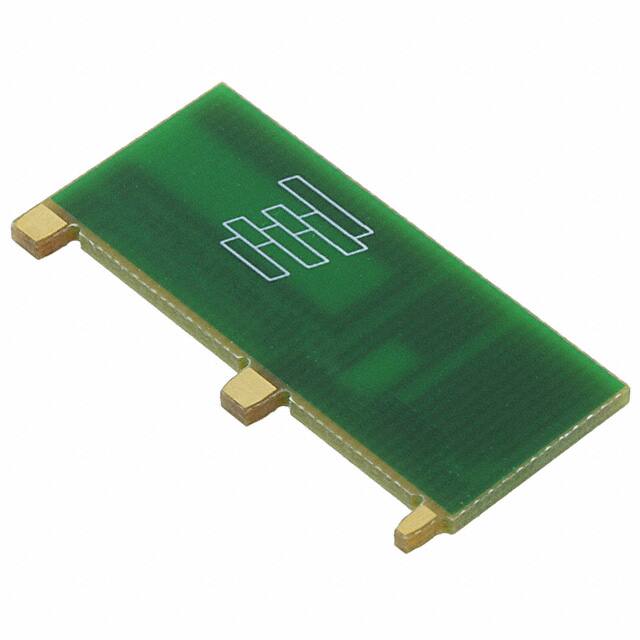

1513273-1RF ANT 850MHZ/900MHZ PCB TRACE |
3,565 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.85GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | PCB Trace | 2 | 3 | - | 2dBi | 10 W | - | Solder | - | - | - | Through Hole | 0.595" (15.11mm) | CDMA, GSM, LTE, ZigBee™ |
|
1513353-1RF ANT 2.4GHZ PCB TRACE SLDR SMD |
5,372 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | PCB Trace | 1 | 2 | - | 2dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.031" (0.78mm) | Bluetooth, WLAN, Zigbee™ |
|
|
1-2118909-2PCB ANT, MHF, 100MM, WI-FI 6E TR |
2,843 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | - | - | 4.2dBi | - | Cable - 100mm | MHF | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
1-2118909-4PCB ANT, MHF, 200MM, WI-FI 6E TR |
2,644 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | - | - | 4.3dBi | - | Cable - 200mm | MHF | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
1-2118909-1PCB ANT, MHF, 50MM, WI-FI 6E TRI |
2,775 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | - | - | 5dBi | - | Cable - 50mm | MHF | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
2118907-1WLAN TRIPLE BAND ANTENNA ASSEMBL |
226 | - |
|
Datasheet | - | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 1.8 | - | 4.4dBi, 4.4dBi, 4.4dBi | - | Cable - 120mm | MHF | - | - | - | Adhesive | 0.013" (0.34mm) | 802.11a/b/g/n/ac/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
2118907-3PCB ANT. MHF, 100MM, WI-FI 6E TR |
2,957 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.2dBi | - | Cable - 100mm | MHF | - | - | - | Adhesive | 0.013" (0.34mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
