RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S9028PCL40RTNPANEL,LHCP,40IN,RTNM |
2,200 | - |
|
Datasheet | S9028PCx | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Panel | 1 | 1.3 | - | 9dBic | 10 W | Cable - 1.016m | TNC Male | IP54 | - | - | Wall Mount | 1.320" (33.53mm) | General Purpose |
|

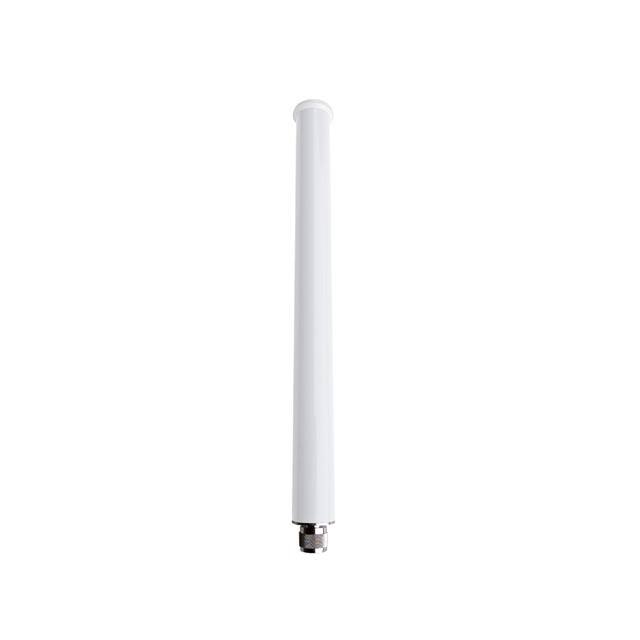

OC24519-FNMOMNI FIXMNT FIXED NM |
4,777 | - |
|
Datasheet | - | Bulk | Obsolete | General ISM | Wide Band | 2.45GHz, 5.59GHz | 2.4GHz ~ 2.5GHz, 5.25GHz ~ 5.93GHz | Whip, Straight | 2 | 1.5, 1.8, 2 | - | 7.5dBi, 9dBi | 1 W | - | N Type | - | - | - | - | 14.835" (376.80mm) | General Purpose |
|
|
SR249120D12NFRF ANT 2.4/5.4GHZ SECTOR CAB 12" |
1,332 | - |
|
Datasheet | - | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Sector | 2 | 2 | - | 5dBi | 5 W | Cable - 305mm | N Type Female | - | - | - | Chassis Mount | 1.380" (35.05mm) | Wi-Fi |
|
|
CMQ69273P-30NFRF ANT 829MHZ/2.2GHZ PUCK PNL MT |
4,610 | - |
|
Datasheet | - | Bulk | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Puck | 2 | 2 | - | 6dBi | 50 W | Cable - 305mm | N Type Female | - | - | - | Panel Mount | 2.185" (55.50mm) | LTE |
|

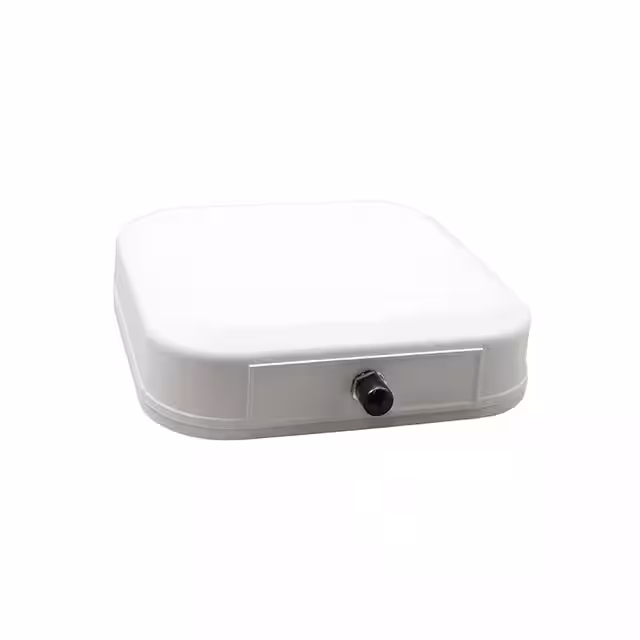

PAV69278PI-FNFRF ANT 700MHZ/900MHZ PANEL N FEM |
3,718 | - |
|
Datasheet | - | Bulk | Obsolete | Cellular | Wide Band | 700MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Panel | 2 | 2 | - | 8dBi | 50 W | - | N Type Female | - | - | - | Chassis Mount | 2.413" (61.30mm) | AWS, GSM, LTE, PCS, UMTS |
|
|
S24015P12NFRF ANT 2.4GHZ PANEL CAB CHAS 12" |
1,360 | - |
|
Datasheet | - | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Panel | 1 | 1.5 | - | 15dBi | 50 W | Cable - 305mm | N Type Female | - | - | - | Chassis Mount | 1.500" (38.10mm) | WiMax™ |
|
|
S24015P36NMRF ANT 2.4GHZ PANEL CAB CHAS 36" |
1,947 | - |
|
Datasheet | - | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Panel | 1 | 1.5 | - | 15dBi | 50 W | Cable - 914mm | N Type Male | - | - | - | Chassis Mount | 1.500" (38.10mm) | WiMax™ |
|
|
CW42RF ANT 45MHZ WHIP STR NMO BASE |
4,656 | - |
|
Datasheet | - | Bulk | Active | - | VHF (f < 300MHz) | 45MHz | 42MHz ~ 48MHz | Whip, Straight | 1 | 2 | - | 0dB | 200 W | - | NMO | - | - | - | Base Mount | 54.750" (139.07cm) | - |
|
|
YF88008-61NFRF ANT 920MHZ YAGI N FEM BRKT MT |
4,440 | - |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 920MHz | 880MHz ~ 960MHz | Yagi, 3-Element | 1 | 1.5 | - | 8.6dBi | 200 W | - | N Type Female | IP67 | - | - | Bracket Mount | 12.000" (304.80mm) | - |
|
|
FG4303RF ANT 435MHZ WHIP STR N FEM 44" |
2,641 | - |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 435MHz | 430MHz ~ 440MHz | Whip, Straight | 1 | 2 | - | 3dBd | 100 W | - | N Type Female | - | - | - | Bracket Mount | 44.000" (111.76cm) | - |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
